Are my Laptop CPU temperatures running too high?

sassofalco

What bad, bad,habit?
Vista Guru
#1
Problem:

I am a bit concerned that my Laptop CPU could be under pressure by running at temperatures that are too high, and consistently for too long.

Background:

1. See my system specs for system details.
2. Snips taken from screen-shots courtesy of Piriform Ltd - 'Speccy'

Because I don't believe in it and don't use air-conditioning, the laptop is constantly being used in room temperatures that can vary from 22° to 34° Celsius [72° to 93° Fahrenheit], and in humidity that can range from 75%, right through to 98%. I do have free and open space under the laptop, and a desktop fan is constantly directing a good blast of air at the laptop position.

Screen-snips from 'Speccy':

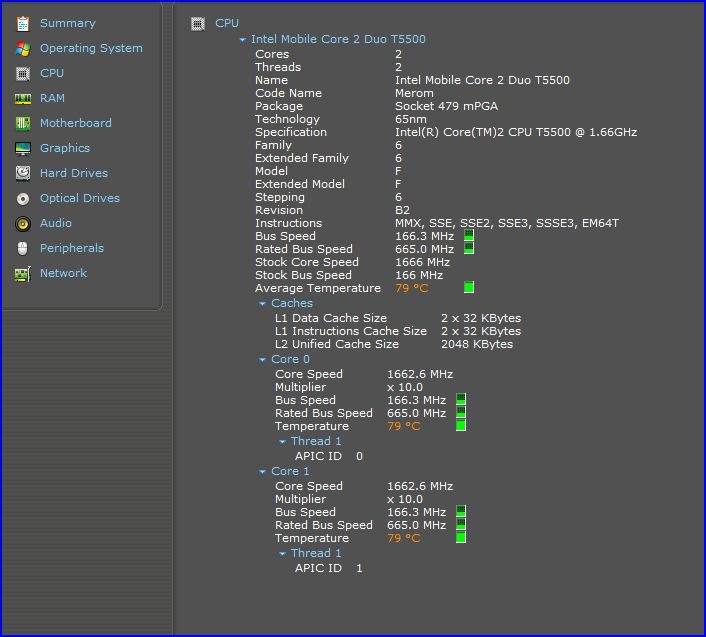

Laptop CPU temperatures when it is basically at idle look like this;

CPU temperature readings - normal running.JPG

.....and with a couple of websites up and a bit of software running, the CPU temperatures looks like this;

CPU temperature readings - only 'SpyBot' running.JPG

Keeping the Laptop free from dust and dirt:

I'm aware that dust and dirt can play havoc with Laptop internal fan efficiency, and am constantly cleaning all the vents using a small hand-held battery-driven vacuum cleaner, and can't do much more than that.

Blasting the dust using cans of compressed air - for a Laptop; Yes or No:

Or can I use the cans???..... Are the compressed air cleaners in a can available at most computer and tech shops, of any use in cleaning Laptops? I am a bit wary of them, knowing that some have been known to introduce moisture into the units, during use as cleaners. Besides, I am none too keen in using something that could be blowing dust etc., further into the body of a Laptop. But are there any alternatives, other than removing the back and cleaning the fan that way??

Summary:

So, do my temperatures look anything out of the ordinary, and which is the best method in keeping the Laptop free from dust and dirt?


My Computer

System One

  • Manufacturer/Model
    Acer Aspire Notebook 5633WLMi.[5630 Series]
    CPU
    Intel Centrino Duo Processor - Intel Core 2 CPU.
    Memory
    4GB DDR2 [3.07GB maximum real available]
    Graphics Card(s)
    nVidia GeForce Go 7300, 128MB
    Sound Card
    Realtek HD Audio, Ver. 6.0.1.5717, 2.08MB
    Monitor(s) Displays
    Acer Aspire Notebook - 15.4"; Acer LCD Monitor X223Wsd - 22".
    Screen Resolution
    1280x800x60Hertz [max.]
    Hard Drives
    Notebook - Samsung HM320JI 320GB HD installed 07 August 2009.
    External HDs [4];Maxtor One Touch4 - 500GB External HD [Drive M:\].Western Digital WDXMS1200TA - 120GB External HD [Drive G:\ - Windows Defender Backup Files only]. Two x LaCie 320GB Mobi
    Mouse
    Logitech Wireless V320 for Notebooks - Model M/N: M-RCD125
    Internet Speed
    Down 20000kb/sec / Up 1000kb/sec [Bigpond-Aus]
    Other Info
    Brother MFC-465CN; PC to Fax/Scan/Copy/Photo MFC. Epson Perfection V300 Photo Scanner. Siemens Speedstream 6520 Router. Wacom 'Bamboo Fun' CTE-650 PC Tablet, Stylus and Mouse. UAC - On;Activated. Browsers; [1] FireFox v3.6[2] IE8. Honorary R.S.M. to the 4th [Assault Pioneer] Troop Pune Sepoys , and 3rd Troop Jodhpur Bengali Lancers.

Patonb

Vista Guru
Gold Member
Messages
2,245
#2
Yes the temps are high... but not abnormally..

As you probably know, they run hotter than a desktop. I always run my laptop with the back end proped up to get as good as possible airflow.

On cleaning out the fans... I usually blow air in the exhaust as I vaccuum out the intake

You can use compressed air, just be careful you don't turn the can to blow out ligquidy air.


My Computer

System One

  • CPU
    Dual L5639 // i7 950 @ 4.0Ghz
    Motherboard
    Evga SR-2 // Gigabyte x58a-ud3r
    Memory
    12Gig Corsair XMS3 // 6Gig OCZ Gold
    Graphics Card(s)
    gtx 560 ti // gtx 260-216
    Monitor(s) Displays
    Dual 22" // Headless
    Hard Drives
    OCZ aGILITY 3, 120Gig + Seagate 500Gig x 2
    PSU
    Silverstone da700 // Corsair 520hx
    Case
    Rosewill BlackHawk Ultra // Antec 900v1
    Cooling
    Twin CM Hyper 212+ // Noctua NH-u12
    Other Info
    Acer 8930 laptop with x9100...

ilikefree

Vista Guru
Gold Member
Messages
2,877
Location
New Zealand
#3

My Computer

System One

  • Manufacturer/Model
    Lenovo Thinkpad T400
    CPU
    Intel Mobile Core 2 Duo P8700 @ 2.53GHz
    Motherboard
    LENOVO 64734VM
    Memory
    2.00GB Single-Channel DDR3 @ 531MHz
    Graphics Card(s)
    Intel Mobile Intel 4 Series Express Chipset Family
    Sound Card
    Conexant 20561 SmartAudio HD
    Monitor(s) Displays
    15 inch
    Screen Resolution
    1280 x 800
    Hard Drives
    1x 180GB Intel 530 series SSD
    1 x 120GB Hitachi 5400rmp
    1 x 650GB Western Digital Elements 5400rpm
    1x 1Tb Western Digital Elements 5400rpm
    Internet Speed
    Medium for New Zealand
    Other Info
    Weakest part of my computer is the graphics chipset.
    Only ever used a laptop.
    Also use USB Freeview TV Card
    Lenovo Docking Station
    External Speakers
    Other bits a pieces as needed

ilikefree

Vista Guru
Gold Member
Messages
2,877
Location
New Zealand
#4

My Computer

System One

  • Manufacturer/Model
    Lenovo Thinkpad T400
    CPU
    Intel Mobile Core 2 Duo P8700 @ 2.53GHz
    Motherboard
    LENOVO 64734VM
    Memory
    2.00GB Single-Channel DDR3 @ 531MHz
    Graphics Card(s)
    Intel Mobile Intel 4 Series Express Chipset Family
    Sound Card
    Conexant 20561 SmartAudio HD
    Monitor(s) Displays
    15 inch
    Screen Resolution
    1280 x 800
    Hard Drives
    1x 180GB Intel 530 series SSD
    1 x 120GB Hitachi 5400rmp
    1 x 650GB Western Digital Elements 5400rpm
    1x 1Tb Western Digital Elements 5400rpm
    Internet Speed
    Medium for New Zealand
    Other Info
    Weakest part of my computer is the graphics chipset.
    Only ever used a laptop.
    Also use USB Freeview TV Card
    Lenovo Docking Station
    External Speakers
    Other bits a pieces as needed

whs

Vista Guru
Gold Member
Messages
2,026
Location
Germany/Florida
#5
79C is indeed very high. I suggest a coolpad. That helps. In one of my HP laptops was was always too hot I solved the problem by swapping the HDD for a SSD. But that is a more expensive solution.


My Computer

System One

  • Manufacturer/Model
    Dell
    CPU
    Q6600
    Memory
    4GB
    Monitor(s) Displays
    HP w2207h
    Hard Drives
    2x250GB HDDs
    1x60GB OCZ SSD
    6 external disks 60 to 640GBs
    Other Info
    Also 1xHP desktop, 1xHP laptop, 1xGateway laptop

mitchell

Ngai Tahu/Tau Iwi
Vista Guru
Messages
420
Location
New Zealand
#6
Core Temp's overheat protection is a good idea if your CPU temps a marginal


Core Temp





The tjmax is the CPU manufacturers max temp (assume critical) & safe temps to be 15c-20c below this.


My Computer

System One

  • Manufacturer/Model
    Hewlett Packard, compaq presario CQ60-305AU
    CPU
    AMD Athlon QI-46 2.1 Ghz
    Motherboard
    Wistron 303C
    Memory
    2048 Mb DDR2 SD Ram
    Graphics Card(s)
    NVidea GE Go Force 8200M G / 256Mb dedicated grapics memory
    Sound Card
    MCP78S NVidea High definition
    Monitor(s) Displays
    15.6" High Definition Brightview Widescreen
    Screen Resolution
    1336x768
    Hard Drives
    Toshiba MK2555GSX ATA
    Mouse
    Synaptics PS2/Touchpad

Lorien

Account Suspended
Messages
2,212
Location
Laytonsville, Maryland, USA
#7
If you do get Core Temp as recommended by Mitchell (I second his recommendation and use it myself), I suggest you also get the Sidebar Gadget Add-on so you can quickly and easily see what is happening. It's Core Temp Gadget 2.5 at: Core Temp - Add Ons.

I hope this helps.

Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01
Messages
166
Location
Canada
#8
wow thats hot


My Computer

System One

  • CPU
    AMD Phenom ii 940 - 3.60GHz
    Motherboard
    ASUS M3A79-T Deluxe
    Memory
    Kingston HyperX 2x2GB 1066MHz 4096MB
    Graphics Card(s)
    4870 1GB
    Sound Card
    N/A
    Monitor(s) Displays
    Viewsonix VX2240w
    Screen Resolution
    1680 x 1050
    Hard Drives
    Western Digital Caviar Black 1TB 7200rpm
    PSU
    Corsair AX850
    Case
    Coolermaster HAF 932
    Cooling
    Scythe Mugen 2 rev.b
    Mouse
    Logitech G500
    Keyboard
    Das Keyboard Silent Professional
    Internet Speed
    iunno.

archie123

I Tunes hates Me
Vista Guru
Gold Member
Messages
1,831
Location
UK
#9
your cpu will automatically throttle back if it gets too hot anyway so i wouldnt worry about that , its a 65nm cpu they get hot its how they are , coupled with the fact its in a laptop and your high ambient temps its perfectly normal too see it reaching that "temp" , as long as your fan is running you'll be fine its 30 points off its TJ max (theoretical limit)

and one thing that needs to be pointed out in all cases like this , temperature is always a "best guess" made by the software , and not always the actual core temp , or even a temp measurement at all , just a unit they use to calculate the distace the cpu is from its TJ max , they call it degrees C when in actual fact its a just a number.

you have to remember Intel never meant the sensors to be used for measuring temperatures they are there purely to throttle the cpu if it gets too hot so stop worrying about it so much , its a laptop...........they get hot ;)

obviously if you can blow out a little dust that can only be a good thing :D

oh and in future use this to take your temp readings :)

Real Temp - CPU temperature monitoring

and if you can be bothered read this

Real Temp - Documentation
