Solved Dedicated system memory for graphics card

brummyfan

Brummy
Vista Guru
Messages
731
Location
Birmingham
#1
Hi

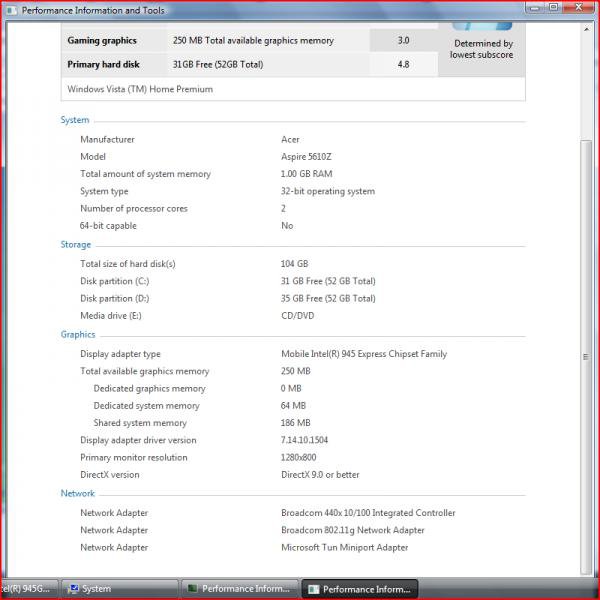

I am upgrading the memory to 2GB from 1GB, could someone please tell me whether I can change the Dedicated system memory from 64MB to 128 MB or just leave it as it is. I have attached the current info.


Last edited by a moderator:

My Computer

System One

  • Manufacturer/Model
    Biostar
    CPU
    AMD Athlonx64 Dual Core 3800+ 2.0GHz
    Motherboard
    Biostar MCP6P-M2
    Memory
    4GB
    Graphics Card(s)
    NVIDIA GeForce 8400GS
    Monitor(s) Displays
    CIBOX
    Screen Resolution
    1280x800
    Hard Drives
    Hitachi 160GB

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#2
Hello Brummy,

Since it appears to be a integrated graphics chip, then you may be able to adjust how much dedicated system memory you want to use in BIOS for it.

Hope this helps,
Shawn


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Dwarf

The Contemplator
Vista Guru
Gold Member
Messages
2,760
Location
Doncaster, UK
#3
Hi brummyfan,

I don't think that you can change this (unless the option is there in your BIOS - check the manual).

Dedicated graphics memory refers to memory that is included on a graphics card, whereas Dedicated system memory refers to memory that is assigned to an onboard graphics solution.

The Total available graphics memory is made up of Shared system memory and either of the above, depending upon whether you are using built-in graphics or a graphics card.

When you increase your main system memory, it is possible that the amount of Shared system memory will increase, but that depends on the system architecture and options available in your BIOS.


My Computer

System One

  • Manufacturer/Model
    Dwarf Dwf/11/2012 r09/2013
    CPU
    Intel Core-i5-3570K 4-core @ 3.4GHz (Ivy Bridge) (OC 4.2GHz)
    Motherboard
    ASRock Z77 Extreme4-M
    Memory
    4 x 4GB DDR3-1600 Corsair Vengeance CMZ8GX3M2A1600C9B (16GB)
    Graphics Card(s)
    MSI GeForce GTX770 Gaming OC 2GB
    Sound Card
    Realtek High Definition on board solution (ALC 898)
    Monitor(s) Displays
    ViewSonic VA1912w Widescreen
    Screen Resolution
    1440x900
    Hard Drives
    OCZ Agility 3 120GB SATA III x2 (RAID 0)
    Samsung HD501LJ 500GB SATA II x2
    Hitachi HDS721010CLA332 1TB SATA II
    Iomega 1.5TB Ext USB 2.0
    WD 2.0TB Ext USB 3.0
    PSU
    XFX Pro Series 850W Semi-Modular
    Case
    Gigabyte IF233
    Cooling
    1 x 120mm Front Inlet 1 x 120mm Rear Exhaust
    Mouse
    Microsoft Comfort Mouse 3000 for Business (USB)
    Keyboard
    Microsoft Comfort Curve Keyboard 3000 (USB)
    Internet Speed
    NetGear DG834Gv3 ADSL Modem/Router (Ethernet) ~4.0 Mb/s (O2)
    Other Info
    Optical Drive: HL-DT-ST BD-RE BH10LS30 SATA Bluray
    Lexmark S305 Printer/Scanner/Copier (USB)
    WEI Score: 8.1/8.1/8.5/8.5/8.25
    Asus Eee PC 1011PX Netbook (Windows 7 x86 Starter)

brummyfan

Brummy
Vista Guru
Messages
731
Location
Birmingham
#4
Thank you guys, your detailed information much appreciated.


My Computer

System One

  • Manufacturer/Model
    Biostar
    CPU
    AMD Athlonx64 Dual Core 3800+ 2.0GHz
    Motherboard
    Biostar MCP6P-M2
    Memory
    4GB
    Graphics Card(s)
    NVIDIA GeForce 8400GS
    Monitor(s) Displays
    CIBOX
    Screen Resolution
    1280x800
    Hard Drives
    Hitachi 160GB

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#5
You're welcome Brummy. :)
