How to Extract Files from the Vista Installation DVD
Synopsis
This will show you how to extract original files from the retail Vista installation DVD. You can then use these extracted files to replace missing or corrupted system files in your current Vista installation.
How to Extract Files from the Vista Installation DVD


information   Information
This will show you how to extract original files from the retail Vista installation DVD. You can then use these extracted files to replace missing or corrupted system files in your current Vista installation.
Note   Note
Normally you will find out that you have corrupted system files that cannot be repaired after your run a sfc /scannow command and look at it's log report.




Here's How:
1. Download and install the same free 32-bit (x86) or 64-bit (x64) 7-Zip program version as your 32-bit or 64-bit Vista.​
2. Use Compatibiliy Mode on the 7-Zip shortcut and check the Run this program as an administrator box.​

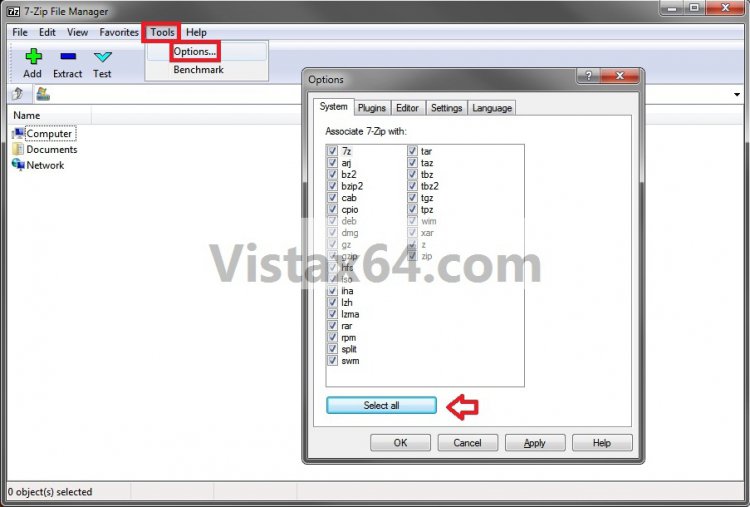

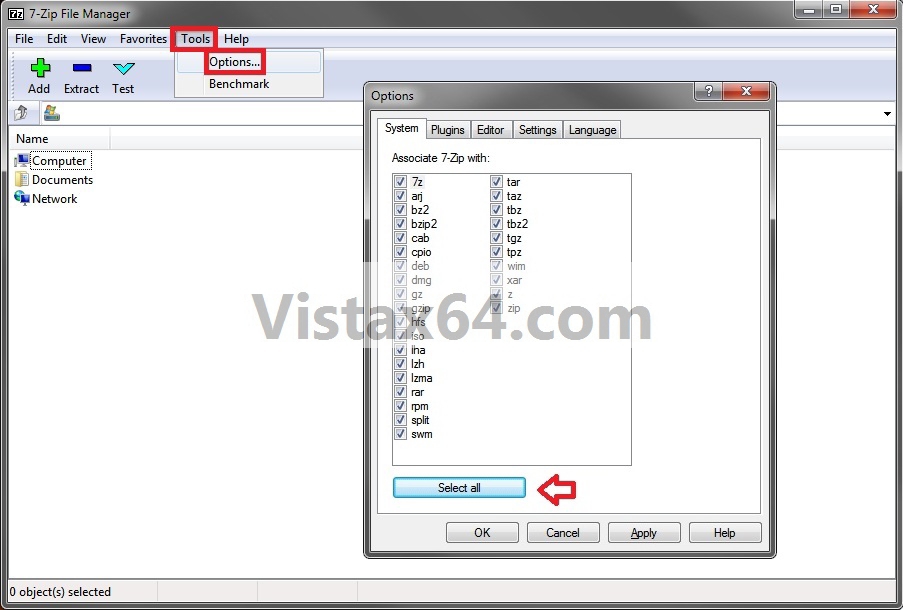

3. Run 7-Zip, then click on Tools and Options. Next, click on the Select all button and on OK. (See screenshot below)​

4. Insert your retail Vista installation disc into the DVD drive and wait for it to be recognized.​

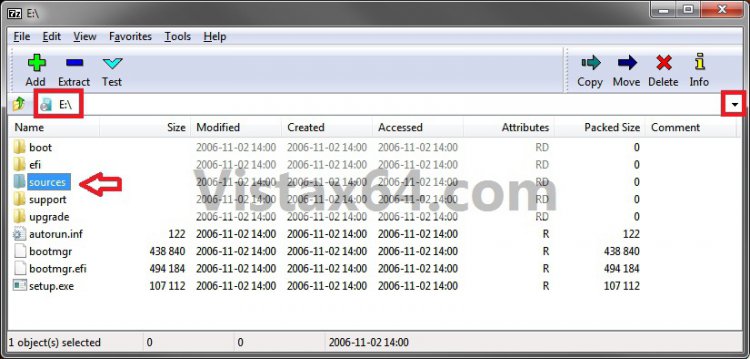

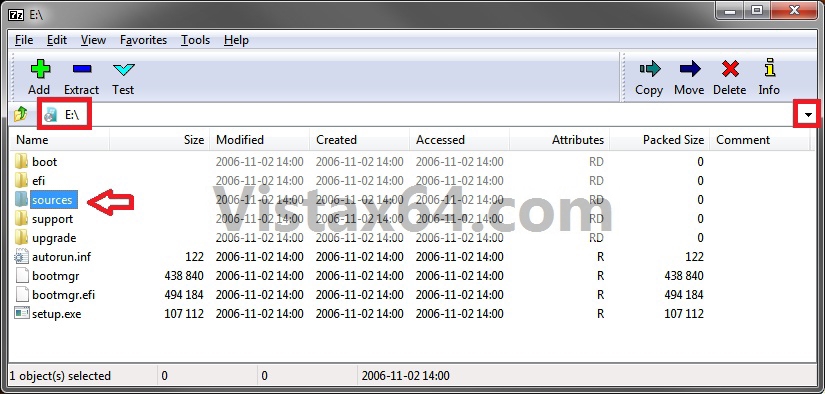

5. In 7-Zip, navigate to your DVD drive letter (ex: E: ) that has the Vista installation disc in it, and double click on the Sources folder. (See screenshot below)​

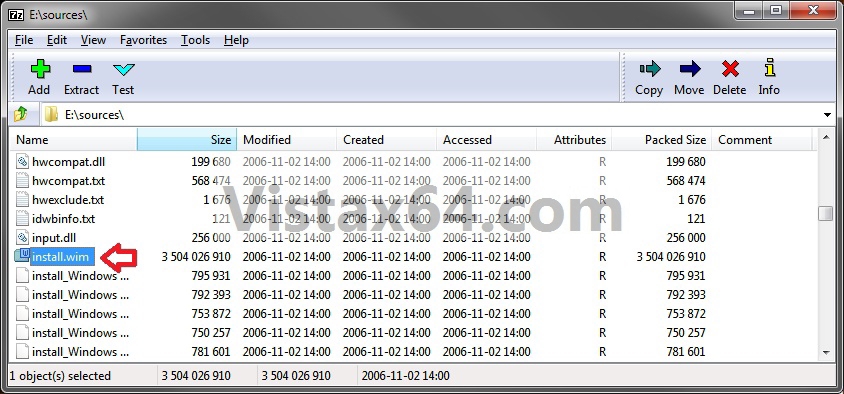

6. Scroll down and double click on the install.wim file. (See screenshot below)​

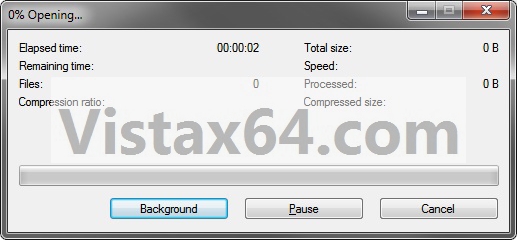

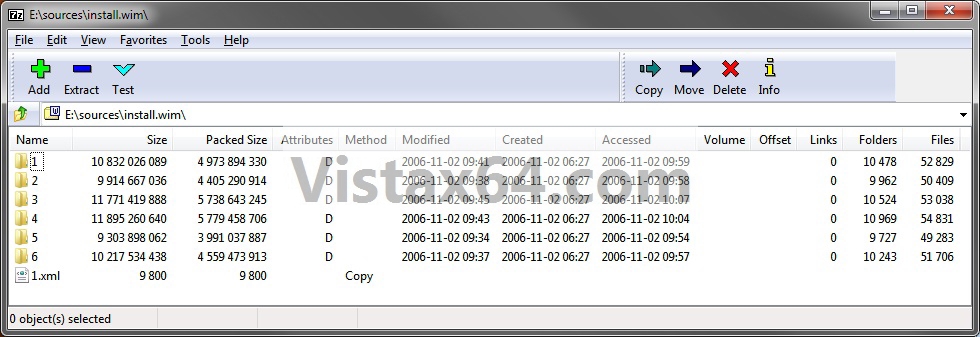

7. You will now see this for a few seconds as it opens. (See screenshot below)​

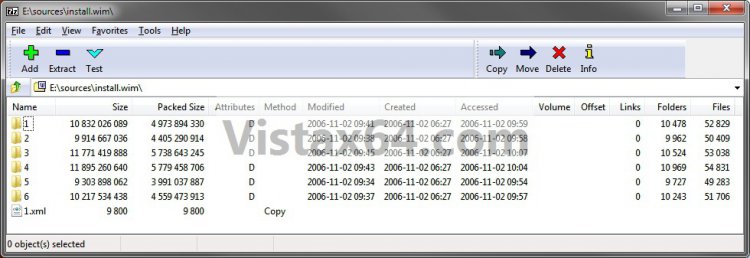

8. Each numbered folder is a different edition of Vista. They will vary depending on what type of Vista installation DVD you have. To see what edition is for each numbered folder, select the 1.xml file and click on the Extract button on the toolbar. (See screenshots below)​

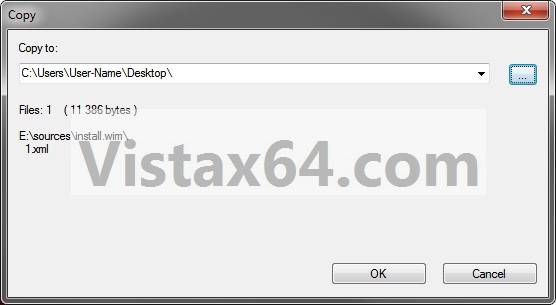

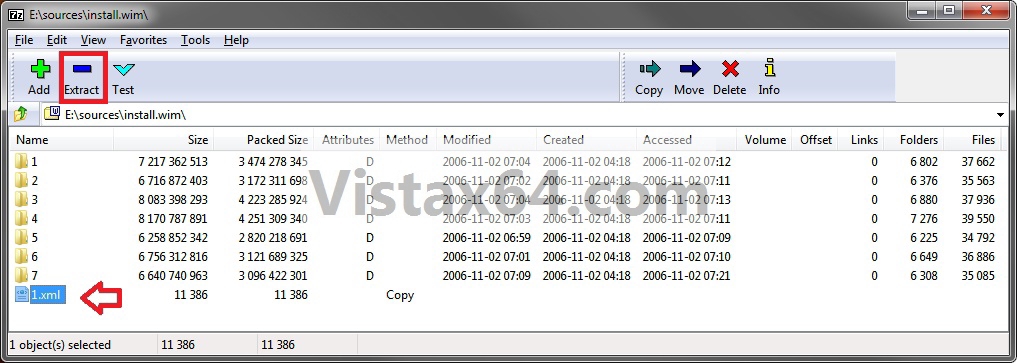

9. Copy the 1.xml file to your desktop. (See screenshot below)​

10. Open the 1.xml file on the desktop. Look for the IMAGE INDEX # and the Name under it in the code (highlighted in red below) to see what Vista edition is for each numbered folder in step 8. (See code box below with an example 1.xml file)​
NOTE: This file will open in Internet Explorer by default.​
Code:
[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WIM>[/INDENT]
[INDENT]  <TOTALBYTES>2412491164</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"][B][COLOR=red]-[/COLOR][/B][/URL][B][COLOR=red] <IMAGE INDEX="1">[/COLOR][/B][/INDENT]
[INDENT][B][COLOR=red]<NAME>Windows Vista BUSINESS</NAME>[/COLOR][/B][/INDENT]
[INDENT]  <DESCRIPTION>Windows Vista Business</DESCRIPTION>[/INDENT]
[INDENT]  <FLAGS>BUSINESS</FLAGS>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WINDOWS>[/INDENT]
[INDENT]  <ARCH>0</ARCH>[/INDENT]
[INDENT]  <PRODUCTNAME>Microsoft® Windows® Operating System</PRODUCTNAME>[/INDENT]
[INDENT]  <HAL>acpiapic</HAL>[/INDENT]
[INDENT]  <PRODUCTTYPE>WinNT</PRODUCTTYPE>[/INDENT]
[INDENT]  <PRODUCTSUITE>Terminal Server</PRODUCTSUITE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LANGUAGES>[/INDENT]
[INDENT]  <LANGUAGE>en-US</LANGUAGE>[/INDENT]
[INDENT]  <DEFAULT>en-US</DEFAULT>[/INDENT]
[INDENT]  </LANGUAGES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <VERSION>[/INDENT]
[INDENT]  <MAJOR>6</MAJOR>[/INDENT]
[INDENT]  <MINOR>0</MINOR>[/INDENT]
[INDENT]  <BUILD>6000</BUILD>[/INDENT]
[INDENT]  <SPBUILD>16386</SPBUILD>[/INDENT]
[INDENT]  </VERSION>[/INDENT]
[INDENT]  <SYSTEMROOT>WINDOWS</SYSTEMROOT>[/INDENT]
[INDENT]  </WINDOWS>[/INDENT]
[INDENT]  <DIRCOUNT>6758</DIRCOUNT>[/INDENT]
[INDENT]  <FILECOUNT>37706</FILECOUNT>[/INDENT]
[INDENT]  <TOTALBYTES>7217370857</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <CREATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE83</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0xFACE2238</LOWPART>[/INDENT]
[INDENT]  </CREATIONTIME>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE96</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x96045D5F</LOWPART>[/INDENT]
[INDENT]  </LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  </IMAGE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"][B][COLOR=red]-[/COLOR][/B][/URL][B][COLOR=red] <IMAGE INDEX="2">[/COLOR][/B][/INDENT]
[INDENT][B][COLOR=red]<NAME>Windows Vista HOMEBASIC</NAME> [/COLOR][/B][/INDENT]
[INDENT]  <DESCRIPTION>Windows Vista HomeBasic</DESCRIPTION>[/INDENT]
[INDENT]  <FLAGS>HOMEBASIC</FLAGS>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WINDOWS>[/INDENT]
[INDENT]  <ARCH>0</ARCH>[/INDENT]
[INDENT]  <PRODUCTNAME>Microsoft® Windows® Operating System</PRODUCTNAME>[/INDENT]
[INDENT]  <HAL>acpiapic</HAL>[/INDENT]
[INDENT]  <PRODUCTTYPE>WinNT</PRODUCTTYPE>[/INDENT]
[INDENT]  <PRODUCTSUITE>Terminal Server</PRODUCTSUITE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LANGUAGES>[/INDENT]
[INDENT]  <LANGUAGE>en-US</LANGUAGE>[/INDENT]
[INDENT]  <DEFAULT>en-US</DEFAULT>[/INDENT]
[INDENT]  </LANGUAGES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <VERSION>[/INDENT]
[INDENT]  <MAJOR>6</MAJOR>[/INDENT]
[INDENT]  <MINOR>0</MINOR>[/INDENT]
[INDENT]  <BUILD>6000</BUILD>[/INDENT]
[INDENT]  <SPBUILD>16386</SPBUILD>[/INDENT]
[INDENT]  </VERSION>[/INDENT]
[INDENT]  <SYSTEMROOT>WINDOWS</SYSTEMROOT>[/INDENT]
[INDENT]  </WINDOWS>[/INDENT]
[INDENT]  <DIRCOUNT>6332</DIRCOUNT>[/INDENT]
[INDENT]  <FILECOUNT>35607</FILECOUNT>[/INDENT]
[INDENT]  <TOTALBYTES>6716880747</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <CREATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE83</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x92D51928</LOWPART>[/INDENT]
[INDENT]  </CREATIONTIME>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE97</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x395C54EA</LOWPART>[/INDENT]
[INDENT]  </LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  </IMAGE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"][B][COLOR=red]-[/COLOR][/B][/URL][B][COLOR=red] <IMAGE INDEX="3">[/COLOR][/B][/INDENT]
[INDENT][B][COLOR=red]<NAME>Windows Vista HOMEPREMIUM</NAME>[/COLOR][/B][/INDENT]
[INDENT]  <DESCRIPTION>Windows Vista HomePremium</DESCRIPTION>[/INDENT]
[INDENT]  <FLAGS>HOMEPREMIUM</FLAGS>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WINDOWS>[/INDENT]
[INDENT]  <ARCH>0</ARCH>[/INDENT]
[INDENT]  <PRODUCTNAME>Microsoft® Windows® Operating System</PRODUCTNAME>[/INDENT]
[INDENT]  <HAL>acpiapic</HAL>[/INDENT]
[INDENT]  <PRODUCTTYPE>WinNT</PRODUCTTYPE>[/INDENT]
[INDENT]  <PRODUCTSUITE>Terminal Server</PRODUCTSUITE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LANGUAGES>[/INDENT]
[INDENT]  <LANGUAGE>en-US</LANGUAGE>[/INDENT]
[INDENT]  <DEFAULT>en-US</DEFAULT>[/INDENT]
[INDENT]  </LANGUAGES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <VERSION>[/INDENT]
[INDENT]  <MAJOR>6</MAJOR>[/INDENT]
[INDENT]  <MINOR>0</MINOR>[/INDENT]
[INDENT]  <BUILD>6000</BUILD>[/INDENT]
[INDENT]  <SPBUILD>16386</SPBUILD>[/INDENT]
[INDENT]  </VERSION>[/INDENT]
[INDENT]  <SYSTEMROOT>WINDOWS</SYSTEMROOT>[/INDENT]
[INDENT]  </WINDOWS>[/INDENT]
[INDENT]  <DIRCOUNT>6836</DIRCOUNT>[/INDENT]
[INDENT]  <FILECOUNT>37980</FILECOUNT>[/INDENT]
[INDENT]  <TOTALBYTES>8083406637</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <CREATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE84</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x7D5966D0</LOWPART>[/INDENT]
[INDENT]  </CREATIONTIME>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE98</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x0B9D5D9A</LOWPART>[/INDENT]
[INDENT]  </LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  </IMAGE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"][B][COLOR=red]-[/COLOR][/B][/URL][B][COLOR=red] <IMAGE INDEX="4">[/COLOR][/B][/INDENT]
[INDENT][B][COLOR=red]<NAME>Windows Vista ULTIMATE</NAME> [/COLOR][/B][/INDENT]
[INDENT]  <DESCRIPTION>Windows Vista Ultimate</DESCRIPTION>[/INDENT]
[INDENT]  <FLAGS>ULTIMATE</FLAGS>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WINDOWS>[/INDENT]
[INDENT]  <ARCH>0</ARCH>[/INDENT]
[INDENT]  <PRODUCTNAME>Microsoft® Windows® Operating System</PRODUCTNAME>[/INDENT]
[INDENT]  <HAL>acpiapic</HAL>[/INDENT]
[INDENT]  <PRODUCTTYPE>WinNT</PRODUCTTYPE>[/INDENT]
[INDENT]  <PRODUCTSUITE>Terminal Server</PRODUCTSUITE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LANGUAGES>[/INDENT]
[INDENT]  <LANGUAGE>en-US</LANGUAGE>[/INDENT]
[INDENT]  <DEFAULT>en-US</DEFAULT>[/INDENT]
[INDENT]  </LANGUAGES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <VERSION>[/INDENT]
[INDENT]  <MAJOR>6</MAJOR>[/INDENT]
[INDENT]  <MINOR>0</MINOR>[/INDENT]
[INDENT]  <BUILD>6000</BUILD>[/INDENT]
[INDENT]  <SPBUILD>16386</SPBUILD>[/INDENT]
[INDENT]  </VERSION>[/INDENT]
[INDENT]  <SYSTEMROOT>WINDOWS</SYSTEMROOT>[/INDENT]
[INDENT]  </WINDOWS>[/INDENT]
[INDENT]  <DIRCOUNT>7232</DIRCOUNT>[/INDENT]
[INDENT]  <FILECOUNT>39594</FILECOUNT>[/INDENT]
[INDENT]  <TOTALBYTES>8170796235</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <CREATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE84</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x9AC07836</LOWPART>[/INDENT]
[INDENT]  </CREATIONTIME>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE98</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0xEA8B4173</LOWPART>[/INDENT]
[INDENT]  </LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  </IMAGE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"][B][COLOR=red]-[/COLOR][/B][/URL][B][COLOR=red] <IMAGE INDEX="5">[/COLOR][/B][/INDENT]
[INDENT][B][COLOR=red]<NAME>Windows Vista HOMEBASICN</NAME>[/COLOR][/B][/INDENT]
[INDENT]  <DESCRIPTION>Windows Vista HomeBasicN</DESCRIPTION>[/INDENT]
[INDENT]  <FLAGS>HOMEBASICN</FLAGS>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WINDOWS>[/INDENT]
[INDENT]  <ARCH>0</ARCH>[/INDENT]
[INDENT]  <PRODUCTNAME>Microsoft® Windows® Operating System</PRODUCTNAME>[/INDENT]
[INDENT]  <HAL>acpiapic</HAL>[/INDENT]
[INDENT]  <PRODUCTTYPE>WinNT</PRODUCTTYPE>[/INDENT]
[INDENT]  <PRODUCTSUITE>Terminal Server</PRODUCTSUITE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LANGUAGES>[/INDENT]
[INDENT]  <LANGUAGE>en-US</LANGUAGE>[/INDENT]
[INDENT]  <DEFAULT>en-US</DEFAULT>[/INDENT]
[INDENT]  </LANGUAGES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <VERSION>[/INDENT]
[INDENT]  <MAJOR>6</MAJOR>[/INDENT]
[INDENT]  <MINOR>0</MINOR>[/INDENT]
[INDENT]  <BUILD>6000</BUILD>[/INDENT]
[INDENT]  <SPBUILD>16386</SPBUILD>[/INDENT]
[INDENT]  </VERSION>[/INDENT]
[INDENT]  <SYSTEMROOT>WINDOWS</SYSTEMROOT>[/INDENT]
[INDENT]  </WINDOWS>[/INDENT]
[INDENT]  <DIRCOUNT>6181</DIRCOUNT>[/INDENT]
[INDENT]  <FILECOUNT>34836</FILECOUNT>[/INDENT]
[INDENT]  <TOTALBYTES>6258860686</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <CREATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE83</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x4D63255F</LOWPART>[/INDENT]
[INDENT]  </CREATIONTIME>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE99</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x86FA2B08</LOWPART>[/INDENT]
[INDENT]  </LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  </IMAGE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"][B][COLOR=red]-[/COLOR][/B][/URL][B][COLOR=red] <IMAGE INDEX="6">[/COLOR][/B][/INDENT]
[INDENT][B][COLOR=red]<NAME>Windows Vista BUSINESSN</NAME>[/COLOR][/B][/INDENT]
[INDENT]  <DESCRIPTION>Windows Vista BusinessN</DESCRIPTION>[/INDENT]
[INDENT]  <FLAGS>BUSINESSN</FLAGS>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WINDOWS>[/INDENT]
[INDENT]  <ARCH>0</ARCH>[/INDENT]
[INDENT]  <PRODUCTNAME>Microsoft® Windows® Operating System</PRODUCTNAME>[/INDENT]
[INDENT]  <HAL>acpiapic</HAL>[/INDENT]
[INDENT]  <PRODUCTTYPE>WinNT</PRODUCTTYPE>[/INDENT]
[INDENT]  <PRODUCTSUITE>Terminal Server</PRODUCTSUITE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LANGUAGES>[/INDENT]
[INDENT]  <LANGUAGE>en-US</LANGUAGE>[/INDENT]
[INDENT]  <DEFAULT>en-US</DEFAULT>[/INDENT]
[INDENT]  </LANGUAGES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <VERSION>[/INDENT]
[INDENT]  <MAJOR>6</MAJOR>[/INDENT]
[INDENT]  <MINOR>0</MINOR>[/INDENT]
[INDENT]  <BUILD>6000</BUILD>[/INDENT]
[INDENT]  <SPBUILD>16386</SPBUILD>[/INDENT]
[INDENT]  </VERSION>[/INDENT]
[INDENT]  <SYSTEMROOT>WINDOWS</SYSTEMROOT>[/INDENT]
[INDENT]  </WINDOWS>[/INDENT]
[INDENT]  <DIRCOUNT>6605</DIRCOUNT>[/INDENT]
[INDENT]  <FILECOUNT>36930</FILECOUNT>[/INDENT]
[INDENT]  <TOTALBYTES>6756321160</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL]</CREATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE83</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0xA629EF7C</LOWPART>[/INDENT]
[INDENT]  </CREATIONTIME>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE9A</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0x69DFB6FB</LOWPART>[/INDENT]
[INDENT]  </LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  </IMAGE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"][B][COLOR=red]-[/COLOR][/B][/URL][B][COLOR=red] <IMAGE INDEX="7">[/COLOR][/B][/INDENT]
[INDENT][B][COLOR=red]<NAME>Windows Vista STARTER</NAME>[/COLOR][/B][/INDENT]
[INDENT]  <DESCRIPTION>Windows Vista Starter</DESCRIPTION>[/INDENT]
[INDENT]  <FLAGS>STARTER</FLAGS>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <WINDOWS>[/INDENT]
[INDENT]  <ARCH>0</ARCH>[/INDENT]
[INDENT]  <PRODUCTNAME>Microsoft® Windows® Operating System</PRODUCTNAME>[/INDENT]
[INDENT]  <HAL>acpiapic</HAL>[/INDENT]
[INDENT]  <PRODUCTTYPE>WinNT</PRODUCTTYPE>[/INDENT]
[INDENT]  <PRODUCTSUITE>Terminal Server</PRODUCTSUITE>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LANGUAGES>[/INDENT]
[INDENT]  <LANGUAGE>en-US</LANGUAGE>[/INDENT]
[INDENT]  <DEFAULT>en-US</DEFAULT>[/INDENT]
[INDENT]  </LANGUAGES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <VERSION>[/INDENT]
[INDENT]  <MAJOR>6</MAJOR>[/INDENT]
[INDENT]  <MINOR>0</MINOR>[/INDENT]
[INDENT]  <BUILD>6000</BUILD>[/INDENT]
[INDENT]  <SPBUILD>16386</SPBUILD>[/INDENT]
[INDENT]  </VERSION>[/INDENT]
[INDENT]  <SYSTEMROOT>WINDOWS</SYSTEMROOT>[/INDENT]
[INDENT]  </WINDOWS>[/INDENT]
[INDENT]  <DIRCOUNT>6264</DIRCOUNT>[/INDENT]
[INDENT]  <FILECOUNT>35129</FILECOUNT>[/INDENT]
[INDENT]  <TOTALBYTES>6640749307</TOTALBYTES>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <CREATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE87</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0xA27366AF</LOWPART>[/INDENT]
[INDENT]  </CREATIONTIME>[/INDENT]
[INDENT][URL="file:///C:/Users/User-Name/Desktop/1.xml#"]-[/URL] <LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  <HIGHPART>0x01C6FE9B</HIGHPART>[/INDENT]
[INDENT]  <LOWPART>0xA7338EAC</LOWPART>[/INDENT]
[INDENT]  </LASTMODIFICATIONTIME>[/INDENT]
[INDENT]  </IMAGE>[/INDENT]
[INDENT]  </WIM>[/INDENT]
[INDENT]

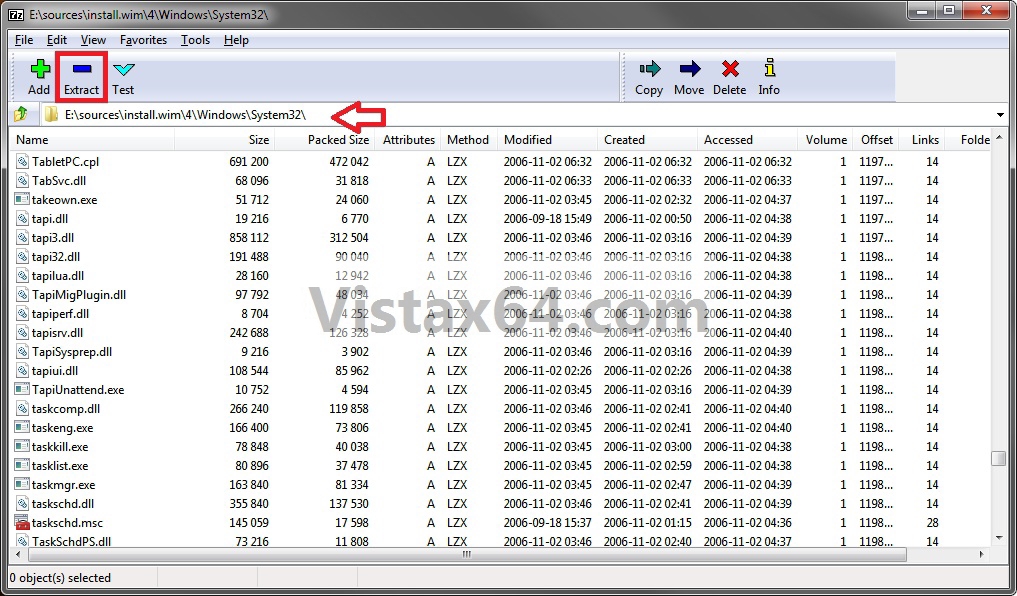

11. Now open the numbered folder that is the same edition as your currently installed Vista edition, and navigate to the Windows\System32 folder. You can now select and extract the system files that you need to your desktop to use to copy and replace your missing or corrupted system files in your currently installed Vista. (See screenshot below)​
NOTE: You may need to take ownership and "Allow" your account "Full Control" of the file in your current installation before you will be allowed to replace it with the extacted copy.​

That's it,
Shawn





Attachments

Last edited by a moderator:

My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

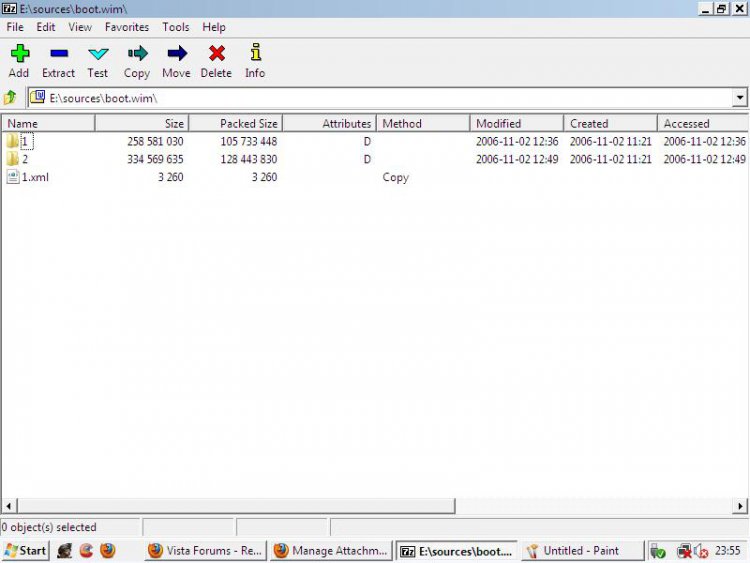

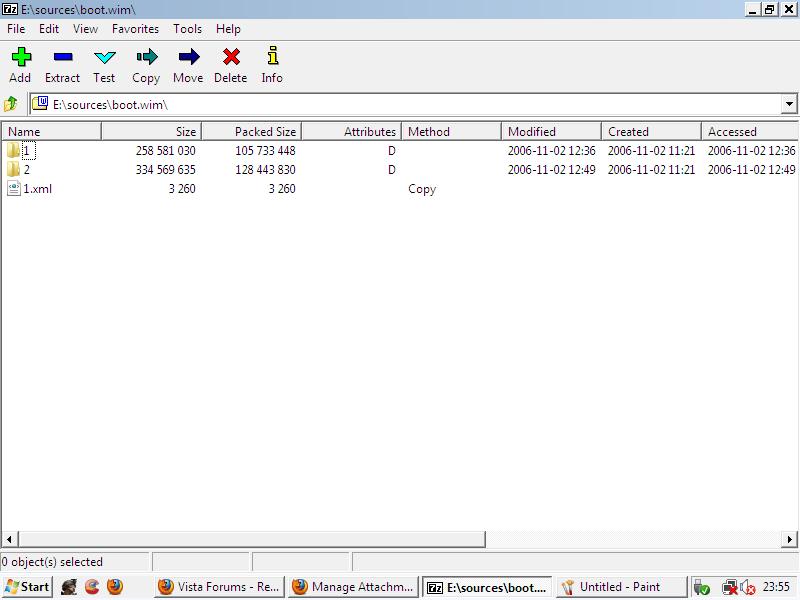

when i try to use 7zip to open up the e:/ thing, when i try to find the thing you find,i cant see it, after i click source, i only get boot.wim and nothing else, when i click it, there is 1 , 2 and 1.xml.. attached is a printscreen of it (in safe mode).


Attachments

My Computer

System One

  • Manufacturer/Model
    Compaq Presario
    CPU
    AMD Phenom-64 8750 (2.4GHz)
    Memory
    2814 MB ram
    Graphics Card(s)
    NVIDIA Geforce 9400
    Monitor(s) Displays
    Generic PnP monitor
    Screen Resolution
    1024 X 768

SIW2

Vista Guru
Gold Member
Are you using the repair disc, or the installation dvd?


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

whs

Vista Guru
Gold Member
Great tut Shawn. Does that work the same for Windows7?


My Computer

System One

  • Manufacturer/Model
    Dell
    CPU
    Q6600
    Memory
    4GB
    Monitor(s) Displays
    HP w2207h
    Hard Drives
    2x250GB HDDs
    1x60GB OCZ SSD
    6 external disks 60 to 640GBs
    Other Info
    Also 1xHP desktop, 1xHP laptop, 1xGateway laptop

SIW2

Vista Guru
Gold Member
Yes, I use it all the time - great for checking back what you have included in the various .wims e.g. when making boot rescue discs.


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

Brink

Staff member
mvp

My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

whs

Vista Guru
Gold Member
Thanks Shawn, I should have checked before asking a dumb question.


My Computer

System One

  • Manufacturer/Model
    Dell
    CPU
    Q6600
    Memory
    4GB
    Monitor(s) Displays
    HP w2207h
    Hard Drives
    2x250GB HDDs
    1x60GB OCZ SSD
    6 external disks 60 to 640GBs
    Other Info
    Also 1xHP desktop, 1xHP laptop, 1xGateway laptop

Brink

Staff member
mvp
LOL, see my signature about dumb questions. ;)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Brink

Staff member
mvp
Hello Poolwizard,

Using a Recovery Disc would be why then. It does not contain any installation files, and is only used to repair Windows 7 with. You would need a actual retail Vista installation disc for this tutorial to be able to extract Vista system files from. :(

Sorry,
Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD
Hello Poolwizard,

Using a Recovery Disc would be why then. It does not contain any installation files, and is only used to repair Windows 7 with. You would need a actual retail Vista installation disc for this tutorial to be able to extract Vista system files from. :(

Sorry,
Shawn
oh, i understand now, but, i think my pc is fixed lol, i took it out from the small area it's usually placed in and opened it up and had a look around inside, then tried to turn it on, amazingly it worked lol, so i'm keeping it outside the small area as i think my wall is nudging some wires or something, haha

by the way, thanks for helping me out


My Computer

System One

  • Manufacturer/Model
    Compaq Presario
    CPU
    AMD Phenom-64 8750 (2.4GHz)
    Memory
    2814 MB ram
    Graphics Card(s)
    NVIDIA Geforce 9400
    Monitor(s) Displays
    Generic PnP monitor
    Screen Resolution
    1024 X 768

Brink

Staff member
mvp
No problem Poolwizard. I'm happy to hear that it sorted itself out for you. :)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

J_Bone

Member
I can't gain rights to replace the file corrupted files. I'm the only account on my comp and it's an Admin. What else can I do to gain these rights?


My Computer

System One

  • CPU
    AMD Phenom II X4 955 Black Edition Deneb 3.2GHz
    Motherboard
    MSI 870A-G54
    Graphics Card(s)
    EVGA 01G-P3-1452-TR GeForce GTS 450
    Monitor(s) Displays
    Acer 23"
    Screen Resolution
    1920x1080
    PSU
    OCZ
    Case
    In Win
    Cooling
    Thermaltake AF0018 ISGC Fan 12 120mm Case Fan
    Mouse
    Logitech G9
    Keyboard
    Ideazon gaming
    Internet Speed
    Cable

Brink

Staff member
mvp
Hello J_Bone,

Did you take ownership and "Allow" your account "Full Control" of the file that you are trying to replace before copying and pasting the replacement?

Hope this helps,
Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

J_Bone

Member
Ya, it wasn't allowing me to take "Full Control". After a bit of persistence, I got it. Now it say's this...



So, is there a way to replace these files wile Windows is running?


My Computer

System One

  • CPU
    AMD Phenom II X4 955 Black Edition Deneb 3.2GHz
    Motherboard
    MSI 870A-G54
    Graphics Card(s)
    EVGA 01G-P3-1452-TR GeForce GTS 450
    Monitor(s) Displays
    Acer 23"
    Screen Resolution
    1920x1080
    PSU
    OCZ
    Case
    In Win
    Cooling
    Thermaltake AF0018 ISGC Fan 12 120mm Case Fan
    Mouse
    Logitech G9
    Keyboard
    Ideazon gaming
    Internet Speed
    Cable

jcuster

New Member
This Post has been the only one I've found that was helpful in a wild maze to replace TCPMON.ini on a vista system.

Thanks.


My Computer

System One

  • Manufacturer/Model
    Scratch Built
    CPU
    Amd Phenon 3.4 Ghz
    Motherboard
    Gigabyte
    Memory
    4 Gig
    Graphics Card(s)
    ATI 4670
    Sound Card
    Embedded
    Monitor(s) Displays
    Viewsonic VP2120

Brink

Staff member
mvp
You're most welcome Jcuster, and welcome to Vista Forums. :)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

ilikefree

Vista Guru
Gold Member
Do I make an ISO with my install disc and then zip it up?


My Computer

System One

  • Manufacturer/Model
    Lenovo Thinkpad T400
    CPU
    Intel Mobile Core 2 Duo P8700 @ 2.53GHz
    Motherboard
    LENOVO 64734VM
    Memory
    2.00GB Single-Channel DDR3 @ 531MHz
    Graphics Card(s)
    Intel Mobile Intel 4 Series Express Chipset Family
    Sound Card
    Conexant 20561 SmartAudio HD
    Monitor(s) Displays
    15 inch
    Screen Resolution
    1280 x 800
    Hard Drives
    1x 180GB Intel 530 series SSD
    1 x 120GB Hitachi 5400rmp
    1 x 650GB Western Digital Elements 5400rpm
    1x 1Tb Western Digital Elements 5400rpm
    Internet Speed
    Medium for New Zealand
    Other Info
    Weakest part of my computer is the graphics chipset.
    Only ever used a laptop.
    Also use USB Freeview TV Card
    Lenovo Docking Station
    External Speakers
    Other bits a pieces as needed

Brink

Staff member
mvp
Hello Roger,

Nar, you can do the tutorial directly with only your Vista installation DVD. You'll just be opening and extracting the files on the DVD with 7-Zip. :)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD
Top
