Solved How to add more space to my Vista partition

ingeborgdot

Pain In The Butt
Power User
Messages
86
Location
Scott City, Kansas
#1
I am running vista 64 and want to add more space to my os partition. I have my hdd partitioned to dual boot XP(which I don't really use anymore) and Vista Ultimate 64 bit. I then have documents etc on the other partition with about another 400GB of space left. I have had to add some more things to my vista os and with sp1 and sp2 coming out shortly I would like to add some more of my unused space to it. What programs do people use for vista on this? Thanks.


My Computer

System One

  • Manufacturer/Model
    Genuine Home Built Grad A
    CPU
    Q6600
    Motherboard
    Abit IP35Pro
    Memory
    4GB Crucial Ballistix
    Graphics Card(s)
    VisionTek Radeon HD4850
    Sound Card
    HT Omega Claro
    Monitor(s) Displays
    Sansung SyncMaster 2493HM
    Screen Resolution
    1900x1200
    Hard Drives
    2 - internal seagate 500GB
    1 - external 2TB NDAS server
    PSU
    P&C quad 750 watt
    Case
    Antec P182
    Internet Speed
    6016kbps

lordbob75

Lord of Bobs
Vista Pro
Gold Member
Messages
1,676
Location
In my Fortress
#2

My Computer

System One

  • Manufacturer/Model
    Custom
    CPU
    Intel Core 2 Quad Q8200 2.33GHz
    Motherboard
    ASUS P5QC
    Memory
    2x2GB
    Graphics Card(s)
    NVidia GeForce 9500GT 1Gb
    Sound Card
    Mobo
    Monitor(s) Displays
    Samsung SyncMaster 206bw
    Screen Resolution
    1680x1050
    Hard Drives
    Samsung SP2514N ATA 250Gb 7200RPM
    Samsung [Model] 1Tb 7200RPM SATA2
    PSU
    Cooler Master Real Power Pro 750W
    Mouse
    Razer Lachesis
    Keyboard
    Razer Tarantula
    Internet Speed
    not fast enough

SIW2

Vista Guru
Gold Member
Messages
2,741
#3
Hi,

Depending on what you are trying to, you may find Vista Disk Management too limited.

A lot of us use Paragon Partition Manager 9 -works great on Vista x64 and on Windows Seven.

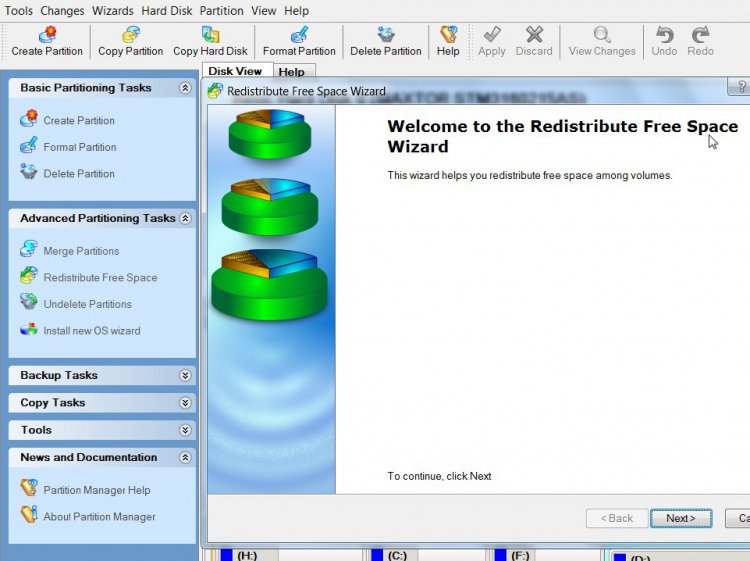

PARAGON REDIST2009-01-18_172312.jpg

Paragon Partition Manager – resize partitions, partitioning software

If you are looking for a free alternative you could try this - tho. you will probably need to do a startup repair when you've finished

Using GParted to Resize Your Windows Vista Partition :: the How-To Geek

here's the direct d/l for a tiny free isoburner - works great , just runs straight away - I use to burn iso to cd all the time

http://www.ntfs.com/downloads/Iso-burner.zip

This is the version of Gparted I have used - direct d/l

http://downloads.sourceforge.net/gparted/gparted-0.4.1.tar.bz2?modtime=1227957187&big_mirror=0

Hope it helps

SIW2


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

ingeborgdot

Pain In The Butt
Power User
Messages
86
Location
Scott City, Kansas
#4
What I find is that the extend partition for the vista os is not able to be selected.


My Computer

System One

  • Manufacturer/Model
    Genuine Home Built Grad A
    CPU
    Q6600
    Motherboard
    Abit IP35Pro
    Memory
    4GB Crucial Ballistix
    Graphics Card(s)
    VisionTek Radeon HD4850
    Sound Card
    HT Omega Claro
    Monitor(s) Displays
    Sansung SyncMaster 2493HM
    Screen Resolution
    1900x1200
    Hard Drives
    2 - internal seagate 500GB
    1 - external 2TB NDAS server
    PSU
    P&C quad 750 watt
    Case
    Antec P182
    Internet Speed
    6016kbps

lordbob75

Lord of Bobs
Vista Pro
Gold Member
Messages
1,676
Location
In my Fortress
#5
Can you delete your old partition and just create a new one for your Vista install? This would create a second "drive" (like drive D:\) but would still give you more space.

I know you want to have one bigger partition, but that solution would work about the same....

~Lordbob


My Computer

System One

  • Manufacturer/Model
    Custom
    CPU
    Intel Core 2 Quad Q8200 2.33GHz
    Motherboard
    ASUS P5QC
    Memory
    2x2GB
    Graphics Card(s)
    NVidia GeForce 9500GT 1Gb
    Sound Card
    Mobo
    Monitor(s) Displays
    Samsung SyncMaster 206bw
    Screen Resolution
    1680x1050
    Hard Drives
    Samsung SP2514N ATA 250Gb 7200RPM
    Samsung [Model] 1Tb 7200RPM SATA2
    PSU
    Cooler Master Real Power Pro 750W
    Mouse
    Razer Lachesis
    Keyboard
    Razer Tarantula
    Internet Speed
    not fast enough

rive0108

Vista Guru
Gold Member
Messages
2,081
Location
Hampton Roads, Virginia, USA
#6

My Computer

System One

  • CPU
    T7600G Core2Duo 2.66 Ghz
    Motherboard
    Intel 945PM + ICH7 Chipset
    Memory
    4GB DDR2 PC2-5300 667MHz
    Graphics Card(s)
    Mobility Radeon x1900 256MB
    Sound Card
    Realtek HD
    Monitor(s) Displays
    WUXGA 17"
    Screen Resolution
    1920X1200
    Hard Drives
    640GB 7200RPM SATA/RAID 0 (2x320GB)
    and 320GB 7200RPM External
    Mouse
    Wireless Microsoft 3000
    Internet Speed
    10 mbps/2 mbps
    Other Info
    Optical Drive:
    Panasonic UJ-220 DL BD-RE (Blu-Ray)

Dwarf

The Contemplator
Vista Guru
Gold Member
Messages
2,760
Location
Doncaster, UK
#7
Hi ingeborgdot,

Exactly how is your disk currently partitioned?

Brink said:
WARNING

  • You will not lose any data on the partition (volume) that you are Extending. The partition you want to delete and use to extend another partion must be to the immediate right of the one you want to extend. You can cannot extend a partition from a deleted partition two or more partions to the right of it.
  • All data on a partition will be lost when you Delete it. Be sure to back up any files that you want to save to a different location before you continue.


My Computer

System One

  • Manufacturer/Model
    Dwarf Dwf/11/2012 r09/2013
    CPU
    Intel Core-i5-3570K 4-core @ 3.4GHz (Ivy Bridge) (OC 4.2GHz)
    Motherboard
    ASRock Z77 Extreme4-M
    Memory
    4 x 4GB DDR3-1600 Corsair Vengeance CMZ8GX3M2A1600C9B (16GB)
    Graphics Card(s)
    MSI GeForce GTX770 Gaming OC 2GB
    Sound Card
    Realtek High Definition on board solution (ALC 898)
    Monitor(s) Displays
    ViewSonic VA1912w Widescreen
    Screen Resolution
    1440x900
    Hard Drives
    OCZ Agility 3 120GB SATA III x2 (RAID 0)
    Samsung HD501LJ 500GB SATA II x2
    Hitachi HDS721010CLA332 1TB SATA II
    Iomega 1.5TB Ext USB 2.0
    WD 2.0TB Ext USB 3.0
    PSU
    XFX Pro Series 850W Semi-Modular
    Case
    Gigabyte IF233
    Cooling
    1 x 120mm Front Inlet 1 x 120mm Rear Exhaust
    Mouse
    Microsoft Comfort Mouse 3000 for Business (USB)
    Keyboard
    Microsoft Comfort Curve Keyboard 3000 (USB)
    Internet Speed
    NetGear DG834Gv3 ADSL Modem/Router (Ethernet) ~4.0 Mb/s (O2)
    Other Info
    Optical Drive: HL-DT-ST BD-RE BH10LS30 SATA Bluray
    Lexmark S305 Printer/Scanner/Copier (USB)
    WEI Score: 8.1/8.1/8.5/8.5/8.25
    Asus Eee PC 1011PX Netbook (Windows 7 x86 Starter)

SIW2

Vista Guru
Gold Member
Messages
2,741
#8
I have not had a problem with it.

If you wish to move system files on the System partition - rather than just shrinking free space - use the bootable disc it will create for you.

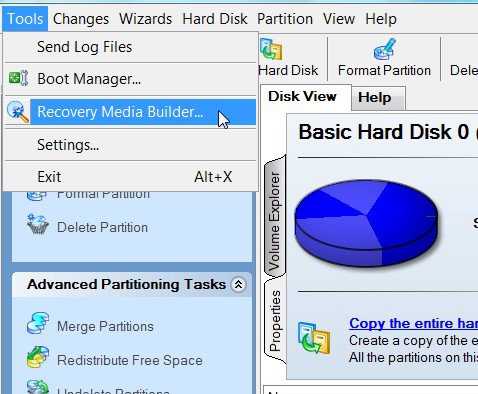

PARAGON BOOT DISC 2009-01-18_224027.jpg

PARAGON HELP2009-01-18_224225.jpg


Afaik this is the case with any partition manager.

Hope it helps

SIW2


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

rive0108

Vista Guru
Gold Member
Messages
2,081
Location
Hampton Roads, Virginia, USA
#9
I have not had a problem with it.

If you wish to move system files on the System partition - rather than just shrinking free space - use the bootable disc it will create for you.


View attachment 9611

View attachment 9612


Afaik this is the case with any partition manager.

Hope it helps

SIW2

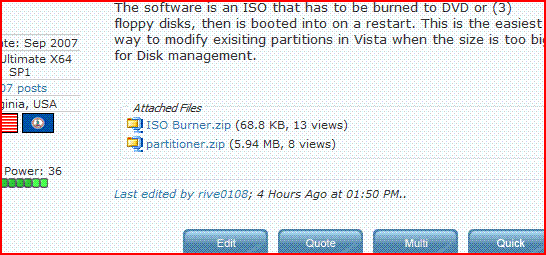

I attached the bootable disk ISO (recovery media builder), so there is no need to install Paragon. Just burn the DVD/Floppy disk for the partitioning software in linked thread above, then Merely shrink/create/delete/expand partition(s). Simple and easy.

Here is a walkthrough on how to remove Dual Boot:
http://www.ehow.com/how_4405638_remove-dual-boot-vista.html

Last edited:

My Computer

System One

  • CPU
    T7600G Core2Duo 2.66 Ghz
    Motherboard
    Intel 945PM + ICH7 Chipset
    Memory
    4GB DDR2 PC2-5300 667MHz
    Graphics Card(s)
    Mobility Radeon x1900 256MB
    Sound Card
    Realtek HD
    Monitor(s) Displays
    WUXGA 17"
    Screen Resolution
    1920X1200
    Hard Drives
    640GB 7200RPM SATA/RAID 0 (2x320GB)
    and 320GB 7200RPM External
    Mouse
    Wireless Microsoft 3000
    Internet Speed
    10 mbps/2 mbps
    Other Info
    Optical Drive:
    Panasonic UJ-220 DL BD-RE (Blu-Ray)

SIW2

Vista Guru
Gold Member
Messages
2,741
#10
Hi Ingeborgdot,

Vista Disk Management will only extend to the right ( in Disk Management view ).

Could you post a screenshot of the Disk Management window please ?

Thanks

SIW2


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

ingeborgdot

Pain In The Butt
Power User
Messages
86
Location
Scott City, Kansas
#11

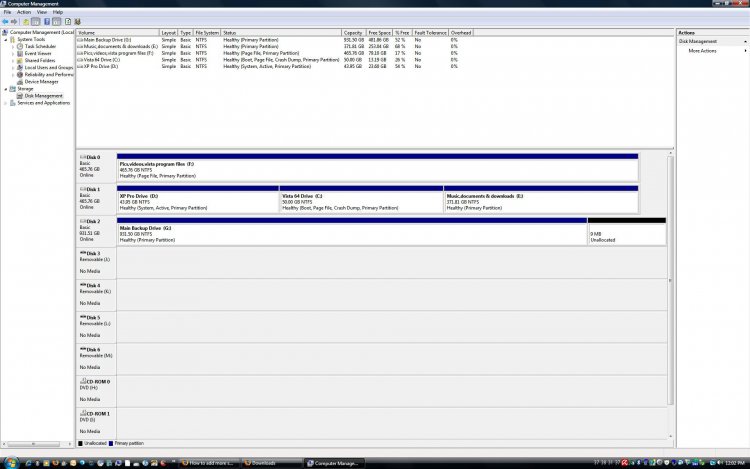

Here is a screen shot that you wanted.


My Computer

System One

  • Manufacturer/Model
    Genuine Home Built Grad A
    CPU
    Q6600
    Motherboard
    Abit IP35Pro
    Memory
    4GB Crucial Ballistix
    Graphics Card(s)
    VisionTek Radeon HD4850
    Sound Card
    HT Omega Claro
    Monitor(s) Displays
    Sansung SyncMaster 2493HM
    Screen Resolution
    1900x1200
    Hard Drives
    2 - internal seagate 500GB
    1 - external 2TB NDAS server
    PSU
    P&C quad 750 watt
    Case
    Antec P182
    Internet Speed
    6016kbps

SIW2

Vista Guru
Gold Member
Messages
2,741
#12
Hi,

The simplest way to add more space to your Vista drive is to take space from the Music drive on it's right.

1. Defrag the E drive - Vista's defrag will be very slow - d/l the free Auslogics program and use that - it could still take awhile depending how badly fragmented it is.

Disk Defrag - Reclaim the Speed Of Your Disks

2. In Disk Manangement, right click the E drive and select Shrink - this will tell you how much you can shrink it by.

If you are lucky, it will be 230gb or more. Shrink it by the max it allows. You now have unallocated space of that size ( black bar across the top ).

3. Right click the new unallocated space and select New simple Volume , it will suggest a drive letter ( probably H which will be fine ) also select Quick Format.

When the format is finished, Restart the pc. You now have another partition ( it will be green in Disk Management, which means an extended partition - don't worry about that , it's fine for storing data )

4. In Explorer ( not disk management ) copy the entire contents of the E drive to the new drive, H. That will take a while. Check it has all copied across to your satisfaction.

5. You can now go into Disk Management, right click the E drive and select Delete. This will now be unallocated space.

6. Right click the C drive and select extend to incorporate all that unallocated space into a much larger C drive.

Hope it helps

SIW2


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

ingeborgdot

Pain In The Butt
Power User
Messages
86
Location
Scott City, Kansas
#13
I see what you are saying. This is very interesting and I do still have some more questions before I start.
Will I be able to get my drive E back with the name E.
I just want to make my c drive another 50 GB or so not much more than that unless you think there is a need to have it larger.
Drive E is now 110GB full. Let's see if I have this straight though. I will shrink it as much as I can. I will select New simple volume and whatever letter is suggests with a quick format. Copy entire contents to new drive letter and check. Go into disk management and delete E. Go into C and extend. Simple.
Questions though. This means that my C will now be 110GB larger. Can I go in an move some stuff over to another drive for now and make it smaller so that when I do this my E will be only about 50GB or so? I think I may have some more questions before I do this but thanks soooo much for your time so far. I really appreciate it.


My Computer

System One

  • Manufacturer/Model
    Genuine Home Built Grad A
    CPU
    Q6600
    Motherboard
    Abit IP35Pro
    Memory
    4GB Crucial Ballistix
    Graphics Card(s)
    VisionTek Radeon HD4850
    Sound Card
    HT Omega Claro
    Monitor(s) Displays
    Sansung SyncMaster 2493HM
    Screen Resolution
    1900x1200
    Hard Drives
    2 - internal seagate 500GB
    1 - external 2TB NDAS server
    PSU
    P&C quad 750 watt
    Case
    Antec P182
    Internet Speed
    6016kbps

delphin

Eager to learn
Vista Pro
Messages
636
Location
Chennai
#14
I am running vista 64 and want to add more space to my os partition. I have my hdd partitioned to dual boot XP(which I don't really use anymore) and Vista Ultimate 64 bit. I then have documents etc on the other partition with about another 400GB of space left. I have had to add some more things to my vista os and with sp1 and sp2 coming out shortly I would like to add some more of my unused space to it. What programs do people use for vista on this? Thanks.
Hi,

U can use the extend partition option in vista. The only thing is if u want to icrease the os partition u should delete all the other partition except the os partition.

Step1- back up data in all other partitions usin externel hard disk(or u can copy those files in to ur os partition also).
Step2- delete all other partitions,
Step3- extend the os partition using extend partition option,
Step4- create partitions and restore ur datas.

Let me know the result


My Computer

System One

  • Manufacturer/Model
    Wipro
    Motherboard
    Intel dq35j0
    Memory
    8 Gb
    Graphics Card(s)
    inter express chipset
    Sound Card
    Realtek
    Monitor(s) Displays
    Wipro
    Screen Resolution
    1024*768
    Hard Drives
    500 gb
    Mouse
    Dell
    Keyboard
    DELL
    Internet Speed
    100 mbps(office lan)

SIW2

Vista Guru
Gold Member
Messages
2,741
#15
Hi I ngeborgdot,

Sure, you can make a folder on another drive, move some (70 -80gb ) , or all of the contents of your E drive on there. There's plenty of space on your backup G drive for that.

You will be able to Shrink E much further, make a bigger new partition H - and be left with a smaller E.

You will be able to delete that smaller E , then extend C to include that now smaller unallocated space.

You could Rename the H to E as that letter is not being used.

It would take along time to shift all that music to another drive and then onto the new partition , of course.

Hope it helps

SIW2

Last edited:

My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

SIW2

Vista Guru
Gold Member
Messages
2,741
#16
There is another way to do it.

Use a bootable partition manager - either Linux Gparted, or the Dos one Echrada posted earlier may be simpler -( make sure your mouse is installed in a ps/2 port as some don't support usb mouse connections ).

It gives a window somewhat similar to Disk Management.

You then grab hold of the left edge of the partition you want to shrink, and drag it 50gb to the right. Press Apply or Next, and wait ( a long time, an hour at least )- it will move that 100gb of music data 50gb across to the right.

You will then have that 50gb unallocated space between the C drive and the smaller E drive.

Then use Vista Disk Management to extend the C partition to incorporate the 50gb unallocated space.

Hope it helps

SIW2


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

ingeborgdot

Pain In The Butt
Power User
Messages
86
Location
Scott City, Kansas
#17
What if I would get rid of everything in the E drive and move it to my G. That would take a lot less time than doing with Gparted. Then do the Gparted move. When done add all the stuff back to the E drive.


My Computer

System One

  • Manufacturer/Model
    Genuine Home Built Grad A
    CPU
    Q6600
    Motherboard
    Abit IP35Pro
    Memory
    4GB Crucial Ballistix
    Graphics Card(s)
    VisionTek Radeon HD4850
    Sound Card
    HT Omega Claro
    Monitor(s) Displays
    Sansung SyncMaster 2493HM
    Screen Resolution
    1900x1200
    Hard Drives
    2 - internal seagate 500GB
    1 - external 2TB NDAS server
    PSU
    P&C quad 750 watt
    Case
    Antec P182
    Internet Speed
    6016kbps

lordbob75

Lord of Bobs
Vista Pro
Gold Member
Messages
1,676
Location
In my Fortress
#18
What if I would get rid of everything in the E drive and move it to my G. That would take a lot less time than doing with Gparted. Then do the Gparted move. When done add all the stuff back to the E drive.
That would work.

~Lordbob


My Computer

System One

  • Manufacturer/Model
    Custom
    CPU
    Intel Core 2 Quad Q8200 2.33GHz
    Motherboard
    ASUS P5QC
    Memory
    2x2GB
    Graphics Card(s)
    NVidia GeForce 9500GT 1Gb
    Sound Card
    Mobo
    Monitor(s) Displays
    Samsung SyncMaster 206bw
    Screen Resolution
    1680x1050
    Hard Drives
    Samsung SP2514N ATA 250Gb 7200RPM
    Samsung [Model] 1Tb 7200RPM SATA2
    PSU
    Cooler Master Real Power Pro 750W
    Mouse
    Razer Lachesis
    Keyboard
    Razer Tarantula
    Internet Speed
    not fast enough

SIW2

Vista Guru
Gold Member
Messages
2,741
#19
Hi,

If you are going to move everything from E onto G - that would be fine.

You wouldn't then need Gparted.

1. After you have moved /copied all from E onto G, go into Disk Management and rt click and delete E.

2. Rt click C and Extend another 50gb.

3. Rt click the remaining unallocated space, create New Simple Volume, assign letter E, select Quick Format. When done, restart.

All you need to do then is copy/move your Music from G back to the new E.

That is very simple, but moving all your Music twice will take a long while.

Hope it helps

SIW2


My Computer

System One

  • CPU
    Intel E8400
    Motherboard
    ASRock1333-GLAN R2.0
    Memory
    2gb DDR2 800
    Graphics Card(s)
    nvidia 9500GT 1gb

ingeborgdot

Pain In The Butt
Power User
Messages
86
Location
Scott City, Kansas
#20
All done. Worked great. Thanks for the help.


My Computer

System One

  • Manufacturer/Model
    Genuine Home Built Grad A
    CPU
    Q6600
    Motherboard
    Abit IP35Pro
    Memory
    4GB Crucial Ballistix
    Graphics Card(s)
    VisionTek Radeon HD4850
    Sound Card
    HT Omega Claro
    Monitor(s) Displays
    Sansung SyncMaster 2493HM
    Screen Resolution
    1900x1200
    Hard Drives
    2 - internal seagate 500GB
    1 - external 2TB NDAS server
    PSU
    P&C quad 750 watt
    Case
    Antec P182
    Internet Speed
    6016kbps

Users Who Are Viewing This Thread (Users: 1, Guests: 0)
