DDR2 CL5 vs DDR3 CL8

[panais]

CL4 Vs CL 5 RAM <hr style="color: rgb(255, 237, 232);" size="1"> <!-- / icon and title --> <!-- message --> Is there a big difference in performance between these two types of RAM?
If so how much?
Is worth paying extra for the CL4?



[lemur]

8GB - $120
crucial.com
Get the extra memory. You will be MUCH happier.



[thepizzaman]

CL4 Vs CL 5 RAM <hr style="color: rgb(255, 237, 232);" size="1"> <!-- / icon and title --> <!-- message --> Is there a big difference in performance between these two types of RAM?
If so how much?
Is worth paying extra for the CL4?

hm.... not quite sure..... i just know that those are a really good brand of ram



[skunksmash]

CL4 will deliver faster throughput than CL5, but if you buy decent CL5 sticks, you should be able to alter them to run CL4 ''hopefully'' with no voltage adjustment at all......



[panais]

And my new ram is...

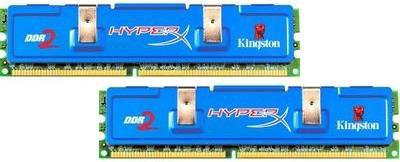

Kingston Technology Company - Memory Search - Partsinfo

Stock Factory Voltage is 1.85,my motheboard auto set the voltage to 1.88,so NO problem.
Factory Stock Timing is 5-5-5-15,BUT my motheboard auto set the timings to 6-6-6-18
so i manual set the timings to the correct 5-5-5-15

QUESTION:

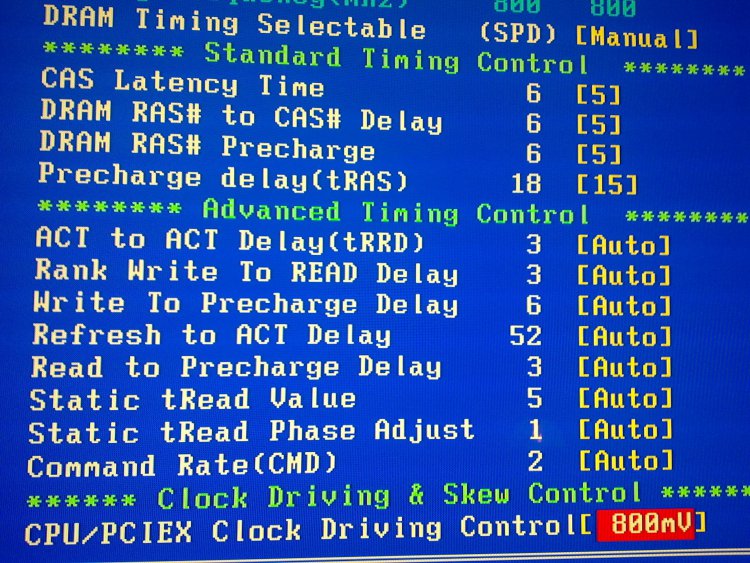

As you can see in my attachment i only change things in Standard timing Control.
Do i have to change something in Advanced Timing Control?
Do i have to change anything else??



[skunksmash]

And my new ram is...
Kingston Technology Company - Memory Search - Partsinfo

Stock Factory Voltage is 1.85,my motheboard auto set the voltage to 1.88,so NO problem.
Factory Stock Timing is 5-5-5-15,BUT my motheboard auto set the timings to 6-6-6-18
so i manual set the timings to the correct 5-5-5-15

QUESTION:
As you see in my attachment i only change things in Standard timing Control.
Do i have to change something in Advanced Timing Control?
Do i have to change anything else??

sweet.....


no dont touch the advanced timings, ive never used them to this day....

you can either keep the stock 800mhz & try for CL4 (with a slight voltage boost), or you can loosen off the timings to CL6 & bump up the frequency, in my case tighter timings are favorable, but run a few benches yourself & see how the numbers look on both..



[panais]

4 more questions(9996 left) :D
(with a slight voltage boost)hmmm...for 4-4-4-12 which is the correct voltage?
Is not dangerous to damage the ram or something else if i tight timings?
Is not dangerous to damage the ram or something else if i increase voltage?
I will speed up more my pc If i will insert another 4GB it or is just a waste of money?



[smarteyeball]

(with a slight voltage boost)hmmm...for 4-4-4-12 which is the correct voltage? Is not dangerous to damage the ram or something else if i increase voltage?

Up to 2.2v is considered 'safe'. However some ram can handle higher voltages better than others. It is possible to damage RAM with too much voltage.

Is not dangerous to damage the ram or something else if i tight timings?

No.

I will speed up more my pc If i will insert another 4GB it or is just a waste of money?

4GB is still plenty. There are advantages to having 8GB, but not for the performance reasons you're thinking about.



[panais]

(with a slight voltage boost)hmmm...for 4-4-4-12 which is the correct voltage? Is not dangerous to damage the ram or something else if i increase voltage?

Up to 2.2v is considered 'safe'. However some ram can handle higher voltages better than others. It is possible to damage RAM with too much voltage.

Is not dangerous to damage the ram or something else if i tight timings?

No.

I will speed up more my pc If i will insert another 4GB it or is just a waste of money?

4GB is still plenty. There are advantages to having 8GB, but not for the performance reasons you're thinking about.

Can you explain to me what exactly is the famous 1:1?
Step by step please (iam newbie with it and english is not my language)
Which is mine 1:1 and how can i do that?What i have to change in bios?
Thanks
A!btw is it ok to tight timmings from 5-5-5-15 to 4-4-4-12 without change/increase voltage?



[Everlong]

(with a slight voltage boost)hmmm...for 4-4-4-12 which is the correct voltage? Is not dangerous to damage the ram or something else if i increase voltage?

Up to 2.2v is considered 'safe'. However some ram can handle higher voltages better than others. It is possible to damage RAM with too much voltage.

No.

I will speed up more my pc If i will insert another 4GB it or is just a waste of money?

4GB is still plenty. There are advantages to having 8GB, but not for the performance reasons you're thinking about.

Can you explain to me what exactly is the famous 1:1?
Step by step please (iam newbie with it and english is not my language)
Which is mine 1:1 and how can i do that?What i have to change in bios?
Thanks
A!btw is it ok to tight timmings from 5-5-5-15 to 4-4-4-12 without change/increase voltage?

Skunk explained to you what a 1:1 ratio is.

You need to fiddle around with your FSB and memory frequency. Your FSB frequency is rated speed divided by 4. So the Q6600 has one of 1066MHz. So 1066/4=266.5. You then multiply this by 2 to get the RAM speed you need for a 1:1 ratio, so 266.5x2=533. So keeping your FSB at stock speeds and buying RAM with 533MHz speed will give you a 1:1 ratio. Using stock speeds for arguments sake.

If you bought 800MHz RAM, you'd need to raise the FSB up to 400MHz (1066/2=266.5, so from 266.5 up to 400). Doing a jump like this would need voltages increasing as at the same time as raising the FSB, you also raise the CPU speed.

For example:

I use 667MHz RAM and have kept mine set to 1:1. My E8200 CPU uses an FSB of 1333MHz, so divide that by 4 and I have 333MHz stock speed. To get 1:1 I've raised the FSB to from 1333MHz to 1500MHz (divide by 4 for 375MHz), and then raised the RAM frequency from 667MHz to 750MHz (divide by 2 for 375MHz) which gives the 1:1 ratio.

Even though if I keep all my stuff at stock speed, I'd still have a 1:1 ratio.



[panais]

Up to 2.2v is considered 'safe'. However some ram can handle higher voltages better than others. It is possible to damage RAM with too much voltage.

No.

4GB is still plenty. There are advantages to having 8GB, but not for the performance reasons you're thinking about.

Can you explain to me what exactly is the famous 1:1?
Step by step please (iam newbie with it and english is not my language)
Which is mine 1:1 and how can i do that?What i have to change in bios?
Thanks
A!btw is it ok to tight timmings from 5-5-5-15 to 4-4-4-12 without change/increase voltage?

Skunk explained to you what a 1:1 ratio is.

You need to fiddle around with your FSB and memory frequency. Your FSB frequency is rated speed divided by 4. So the Q6600 has one of 1066MHz. So 1066/4=266.5. You then multiply this by 2 to get the RAM speed you need for a 1:1 ratio, so 266.5x2=533. So keeping your FSB at stock speeds and buying RAM with 533MHz speed will give you a 1:1 ratio. Using stock speeds for arguments sake.

If you bought 800MHz RAM, you'd need to raise the FSB up to 400MHz (1066/2=266.5, so from 266.5 up to 400). Doing a jump like this would need voltages increasing as at the same time as raising the FSB, you also raise the CPU speed.

For example:

I use 667MHz RAM and have kept mine set to 1:1. My E8200 CPU uses an FSB of 1333MHz, so divide that by 4 and I have 333MHz stock speed. To get 1:1 I've raised the FSB to from 1333MHz to 1500MHz (divide by 4 for 375MHz), and then raised the RAM frequency from 667MHz to 750MHz (divide by 2 for 375MHz) which gives the 1:1 ratio.

Even though if I keep all my stuff at stock speed, I'd still have a 1:1 ratio.

My cpu is 9x266 and my ram 800mhz.
I changed the cpu to 6x400 and i set my ram to [2.00D]
I also set manualy the ram timings in the correct (Factory Stock) 5-5-5-15
Is that necessary to change any voltages??because....
(!!I DIDEN'T change anything else,no voltage,no vcore,NOTHING.!! and my pc works fine)



[mattinahat]

From what you have written you haven't actually changed anything in terms of clock speeds.

Your RAM is running at 800MHz which is stock.
Your CPU is running at 2.4GHz which is stock.
The only thing that will have changed is your FSB however you don't need to worry about that.

You only change voltages when you (usually significantly (which is a relative term)) modify the clock speed of your CPU or RAM. Since you have not changed the clock speeds on either your RAM or CPU you don't need to worry about voltages.

The best indicator that everything is OK is when your computer behaves identically to what it did prior. From what you have written, this is the case.
