Audio Problem - 5.1 & 7.1 channel not working with Realtek HD audio & ATI HD4670

joe8s

Member
Can someone please help me try and figure out why my audio isnt working the way is should be?

Playing a blu ray disc (Tron Legacy) using PowerDVD 11 and there is no sound from the side speakers.

On the weekend I hooked up my next door nieghbours PS3 and it played all 8 channels perfectly.

I have been trying to figure this out for 6 weeks now and I am not getting anywhere at all.


My Computer

System One

  • Manufacturer/Model
    Dell Studio 540
    CPU
    Intell(R) Core(TM)2 Quad CPU Q9650 @3.00 GHz
    Memory
    6 GB
    Graphics Card(s)
    ATI Radeon HD 4670
    Monitor(s) Displays
    Sony LCD 55"

Shadowjk

Network Enthusiast
Vista Guru
Gold Member
Does this only Happen in PowerDVD 11? Have you tried Windows Media centre?

Josh


My Computer

System One

  • Manufacturer/Model
    Custom Built
    CPU
    Intel Core i5 2400 @ 3.10GHz
    Motherboard
    Foxconn H67MP-S/-V/H67MP
    Memory
    8.0GB DDR3 @ 665MHz (2GBx4)
    Graphics Card(s)
    AMD HD Radeon 6870
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    SMB1930NW ([email protected])
    Screen Resolution
    1280x800
    Hard Drives
    977GB Seagate ST31000524AS ATA Device (SATA) + 250GB WD iSCSI attached Drive
    Case
    Novatech Night
    Mouse
    Dell HID-compliant mouse
    Keyboard
    Standard PS/2 Keyboard

joe8s

Member
Hi Josh,
Thanks for your reply buddy.

In Windows Media centre the only player that can play an original BD disc is PowerDVD DX, the program that originally came with my computer when I bought it from Dell.
Using PowerDVD DX I only get sound from the front speakers, centre speaker and subs only.

Up until a month ago I used to think everything was working good. The "Blue Light" on my sony receiver was shining bright and I was watching everything using Dolby Pro Logic II.
Well I was wrong ..... Yeh I got sound from all the speakers but thats only because this is what Dolby Pro Logic II does .... gives you that false surround sound.
Now after weeks n weeks of searching I have taken on board a sh.t load of information and what all the different settings do on the computer, my Amp, my TV and basically how different components work with each other. So I have learnt alot.

Joe

Last edited:

My Computer

System One

  • Manufacturer/Model
    Dell Studio 540
    CPU
    Intell(R) Core(TM)2 Quad CPU Q9650 @3.00 GHz
    Memory
    6 GB
    Graphics Card(s)
    ATI Radeon HD 4670
    Monitor(s) Displays
    Sony LCD 55"

Lottiemansion

Vista Guru
Gold Member
Hi,

If I just use the cable that came with the system I do not get full 7.1 sound. I have to use another cable to get full 7.1 sound on the top right (blue/grey) port.

OK?


Attachments

My Computer

System One

  • Manufacturer/Model
    HP-Pavilion m9280.uk-a
    CPU
    2.30 gigahertz AMD Phenom 9600 Quad-Core
    Motherboard
    ASUSTek Computer INC. NARRA3 3.02
    Memory
    3582 Megabytes Usable Installed Memory (4 Gig)
    Graphics Card(s)
    ASUS NVIDIA Geforce GTS450
    Sound Card
    Realtek High Definition 7.1 Audio (HP drivers)
    Monitor(s) Displays
    HP w2408 24.0" (Dual monitor)
    Screen Resolution
    1920 * 1200, 1920 * 1200
    Hard Drives
    3*500 Gigabytes Usable Hard Drive Capacity
    Plus 2x USB (160Gig each) external HDD
    BluRay & DVD Weiters
    HL-DT-ST BD-RE GGW-H20L SCSI CdRom (Bluray RW) Device
    AlViDrv BDDVDROM SCSI CdRom (Blueray) Device
    TSSTcorp CDDVDW TS-H653N SCSI CdRom
    Internet Speed
    40 Meg

joe8s

Member
Have I hooked up the system the wrong way?

I am using a HDMI cable from the Graphics Card (ATI Radeon HD 4670) into the receiver and then another HDMI cable into the LCD.
I'm not using any of the analog RCA type ports on the back of the computer like you are pointing out to me in Realtek HD Audio manager. Should I be using them?

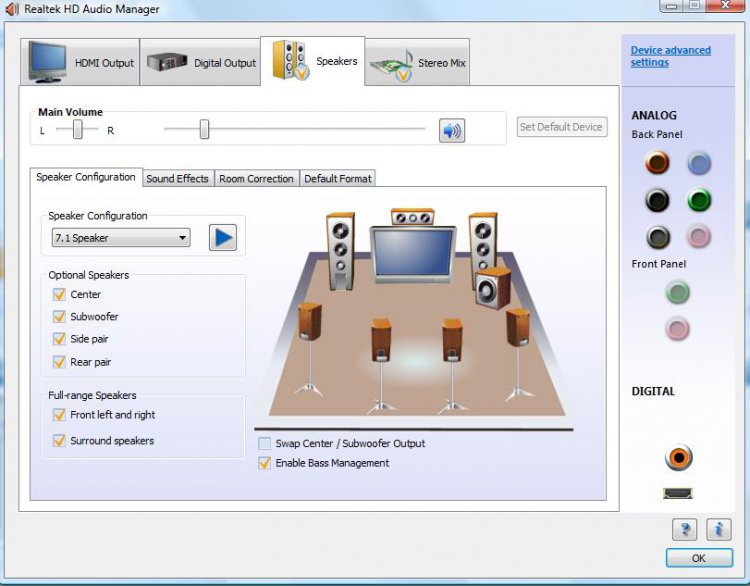

My version of Realtek HD Audio manager is ALC888S
