How to Enable or Disable the Chimney Offload State in Vista
Synopsis
This will show you how to enable or disable the TCP Chimney Offload State to offload TCP processing for a network connection from the CPU to the network adapter instead.
How to Enable or Disable the Chimney Offload State in Vista

information   Information
This will show you how to enable or disable the TCP Chimney Offload State to offload TCP processing for a network connection from the CPU to the network adapter instead. This helps improve the processing of network data on your computer or server without the need for additional programs or any loss to manageability or security. Programs that are currently bound by network processing overhead will generally scale better when used with TCP Chimney Offload. For more information about this, see Information about the TCP Chimney Offload, Receive Side Scaling, and Network Direct Memory Access features in Windows Server 2008 and What is TCP Chimney Offload? - Windows Vista Help.
Tip   Tip
"The goal of TCP Chimney is to reduce CPU utilization and increase network throughput for long-lived TCP connections with bulk transfers and applications that pre-post buffers. Moving TCP processing tasks to hardware frees up the server's CPU for other application tasks."
Full read at: http://technet.microsoft.com/en-us/network/dd277645.aspx

Note   Note
The TCP Chimney Offload State is enabled by default in Vista. It is recommended to have this enabled. You can test to see how your network connection speed works with either setting.


Here's How:

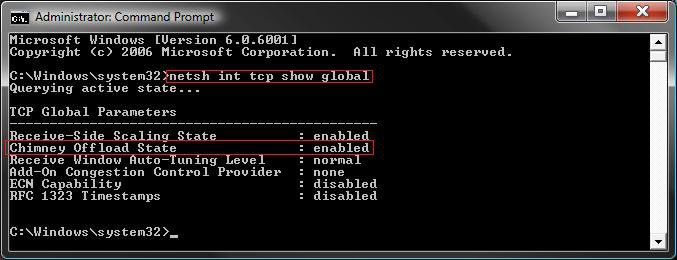

1. To See the Current TCP Settings
B) Click on Continue in the UAC prompt.​
C) In the elevated command prompt, copy and paste the command below and press Enter. (See screenshot below)​
netsh interface tcp show global

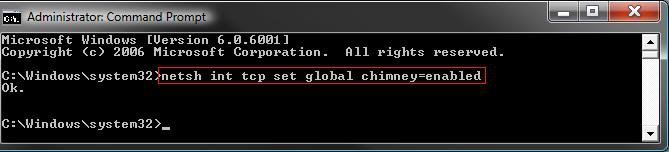

2. To Enable the Chimney Offload State
A) In the elevated command prompt, copy and paste the command below and press Enter. (See screenshot below)​
netsh int tcp set global chimney=enabled

B) You will get a OK response if successful. If not, repeat step 2A.​
C) Go to step 4.​

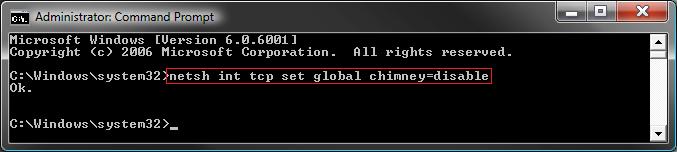

3. To Disable the Chimney Offload State
A) In the elevated command prompt, copy and paste the command below and press Enter. (See screenshot below)​
netsh int tcp set global chimney=disable

B) You will get a OK response if successful. If not, repeat step 3A.​

4. Repeat step 1 to verify the change.​
5. Close the command prompt when done.​
6. Restart the computer to apply.​
That's it,
Shawn




Attachments

Last edited:

My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

mansrm81

Vista Guru
Thanks for this tutorial Shawn.


My Computer

System One

  • Manufacturer/Model
    HP Compaq Presario/SR5113WM
    CPU
    AMD Athlon 64 X2 3600+ 1.9Ghz
    Motherboard
    Asus M2N68-LA
    Memory
    PNY Optima Memory DDR2 2GB 2x1 kit
    Graphics Card(s)
    PNY Nvidia 8400 GS 256MB
    Sound Card
    On board RealTek
    Monitor(s) Displays
    Acer X163W LCD
    Screen Resolution
    1366x768
    Hard Drives
    Western Digital 160 GB SATA 3G (3.0Gb/sec)
    7200 rpm
    Western Digital 160 GB IDE
    PSU
    Dynex 400w
    Case
    Nothin Special
    Cooling
    Stock
    Mouse
    Wireless Logitech LX7
    Keyboard
    Standard 102 key with volume and sleep buttons
    Internet Speed
    Comcrap 10mb cable
    Other Info
    Insignia 2.1 speakers, wireless Xbox 360 controller w/plug n play charger, Belkin wireless G + mimo usb network adapter.

Brink

Staff member
mvp
You'rs welcome Mansrm81.

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Airbot

---------------
Shawn, I know that you say Chimney Offload and Autotuning are set to enabled and normal by default but I have done a clean install of Home Premium and Ultimate and they were both set to Chimney Offload=Disabled, Autotuning= HighlyRestricted. Could it have anything to do with your network adapter and or Router that determine the setting, as soon as you connect to your router/adapter? Or am I making no sense? lol :geek:


My Computer

System One

  • Manufacturer/Model
    Airbot 2.0
    CPU
    Core i7 920 (D0) @ 4Ghz, 26c idle- 65c full load on air
    Motherboard
    Asus P6X58D Premium -Sata 6Gb/s - USB 3.0
    Memory
    12GB Corsair Dominator -CMD12GX3M6A1600C8
    Graphics Card(s)
    EVGA Nvidia GTX 480 -Fermi
    Sound Card
    ASUS Xonar D2X
    Monitor(s) Displays
    LG 24" Flatron W2453V-PF Full HD 1080p 2ms response time
    Screen Resolution
    [email protected]
    Hard Drives
    1 OCZ Vertex2 180GB SSD
    1 TB Samsung Spinpoint F1 7200RPM 32MB cache
    2 500GB WD Caviar Blacks 7200RPM 32MB cache (WD5001AALS)

    Pioneer DVD Burner DVR-S18M
    PSU
    Corsair HX1000W
    Case
    Cooler Master HAF 932
    Cooling
    Case Fans -3 230mm, 1 140mm/CPU - Tuniq Tower 120 Extreme
    Mouse
    Logitech Wireless MK700
    Keyboard
    Logitech Wireless MK700
    Internet Speed
    100 MBPS DL 30.17Mbps UL 0.98Mbps
    Other Info
    Windows 7
    Processor-7.7 RAM- 7.9 Graphics-7.9 Gaming Graphics- 7.9 HDD- 7.8

    W.E.I final score= 7.7

    Windows Vista=5.9

Brink

Staff member
mvp
Hello Aaron,

I'm noticing more people reporting this, so it may be so. The settings in the tutorial are the normal recommended settings. You might try either way to see if you notice a difference between them.


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

NormCameron

Vista Guru
Just read this. Nice one. Thanks mate

Norm


My Computer

System One

  • Manufacturer/Model
    Scratch Built
    CPU
    Intel Quad Core 6600
    Motherboard
    Asus P5B
    Memory
    4096 MB Xtreme-Dark 800mhz
    Graphics Card(s)
    Zotac Amp Edition 8800GT - 512MB DDR3, O/C 700mhz
    Monitor(s) Displays
    Samsung 206BW
    Screen Resolution
    1680 X 1024
    Hard Drives
    4 X Samsung 500GB 7200rpm Serial ATA-II HDD w. 16MB Cache .
    PSU
    550 w
    Case
    Thermaltake
    Cooling
    3 x octua NF-S12-1200 - 120mm 1200RPM Sound Optimised Fans
    Mouse
    Targus
    Keyboard
    Microsoft
    Internet Speed
    1500kbs
    Other Info
    Self built.

Brink

Staff member
mvp
You're welcome Norm.

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

rickrode

New Member
Hi Shawn,

I try step no. 2 of this tutorial enabling chimney offload state but I received a message "set global command failed on IPV4 the requested operation requires elevation" any help or additional info on this issue.


Rickrode


My Computer

Brink

Staff member
mvp
Hello Rickrode,

You will just need to open a elevated command prompt with administrator rights, as per step 1, instead of a normal command prompt. ;)

Hope this helps,
Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Brink

Staff member
mvp
You're welcome Rickrode. I'm happy to hear that you got an improvement.

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

dinesh

Vista Expert
Vista Guru
"The goal of TCP Chimney is to reduce CPU utilization and increase network throughput for long-lived TCP connections with bulk transfers and applications that pre-post buffers. Moving TCP processing tasks to hardware frees up the server's CPU for other application tasks."
Full read: http://technet.microsoft.com/en-us/network/dd277645.aspx
Hi shawn, just read this at technet. But dont you think changing this setting will cause a slow performance while using other applications? I have not tried it yet. But will try it today and will post the difference.


My Computer

System One

  • Manufacturer/Model
    Compaq
    CPU
    intel core 2 duo T 5550 @ 1.83 MHz
    Motherboard
    intel 965 chipset family
    Memory
    2 GB DDR 2 SD RAM @ 667 MHz
    Graphics Card(s)
    On board upto 358 MB RAM
    Sound Card
    Onboard
    Monitor(s) Displays
    15"
    Hard Drives
    160 GB WDC

Brink

Staff member
mvp
Thank you Dinesh. I have added it for more information. :)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

brummyfan

Brummy
Vista Guru
Thank you Shawn for this Tutorial as it made a difference in performance.


My Computer

System One

  • Manufacturer/Model
    Biostar
    CPU
    AMD Athlonx64 Dual Core 3800+ 2.0GHz
    Motherboard
    Biostar MCP6P-M2
    Memory
    4GB
    Graphics Card(s)
    NVIDIA GeForce 8400GS
    Monitor(s) Displays
    CIBOX
    Screen Resolution
    1280x800
    Hard Drives
    Hitachi 160GB

Brink

Staff member
mvp
You're welcome Brummy. :)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD
Top
