CORE i7

[skunksmash]

Nehalem is without a doubt the talk of the town, not the least thanks to Intel's recent presentations at IDF.
We haven't seen any real full performance tests though, not even overclocking tests have been available, which is far from odd though since no one but Intel and its closest partners have Nehalem systems at their disposal.

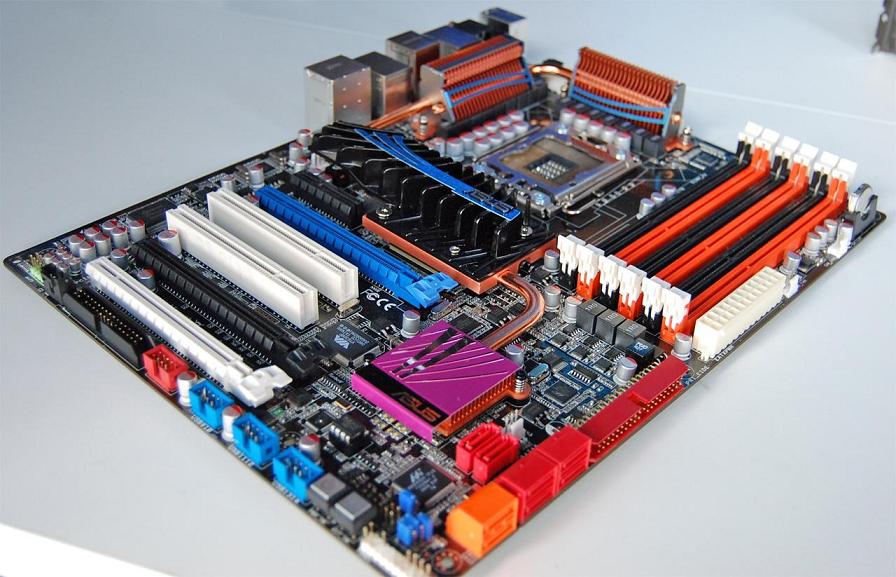

During the Advanced Overclocking Championship in Berlin, ASUS had brought its coming Intel X58 motherboard, ASUS P6T Deluxe, and Intel's Nehalem processor, also known as Core i7.

The information we got applied only to ASUS own P6T Deluxe motherboard, none of the performance tests or the the information was directly related to the processor.
Now, a few days later we've managed to dig up some exclusive information on Core i7 and its overclocking potential.

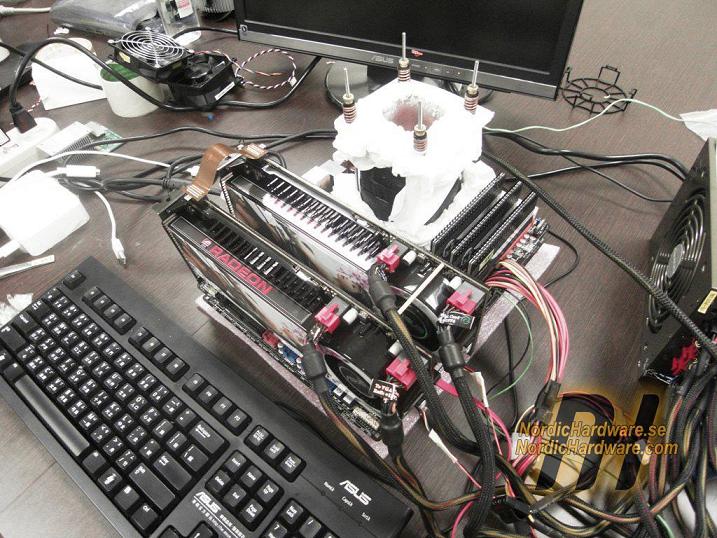

Our source installed a Core i7 processor in ASUS P6T Deluxe and threw liquid nitrogen at it, and the first tests have shown that the processor can handle temperatures as low as -120°C with ease. No coldbugs have been experienced, but we should say that it haven't tried lower than -120°C so far.
Something that may very well happen within the near future.


This bodes well for the extreme overclockers that are sitting around waiting for the Nehalem architecture and even if we have no detailed performance data or even clock frequencies to share, Intel's new architecture is not far behind Yorkfield in regards to overclocked frequencies. That's as much as we could get for now, but we will keep digging!

can you believe the bench results are still not available!!!!!
that's some serious processing power...



[z3r010]

Re: CORE i7 - 2x 4870x2 - LN2

Do we have a release date for the Nehalem yet as i'm iching to build a new PC.



[skunksmash]

Re: CORE i7 - 2x 4870x2 - LN2

here we go john......

''Intel next-generation CPU architecture, code-named Nehalem, and now known as Core i7, will be officially launched in Q4 of this year, most likely in November.''

not long for that new build!! .....

what you going for mate ......desktop offering ?? or going for the full fat 1366



[z3r010]

Re: CORE i7 - 2x 4870x2 - LN2

Well if there is a dual socket server offering and I could get it to run quietly, then that is what I plan.



[skunksmash]

Re: CORE i7 - 2x 4870x2 - LN2

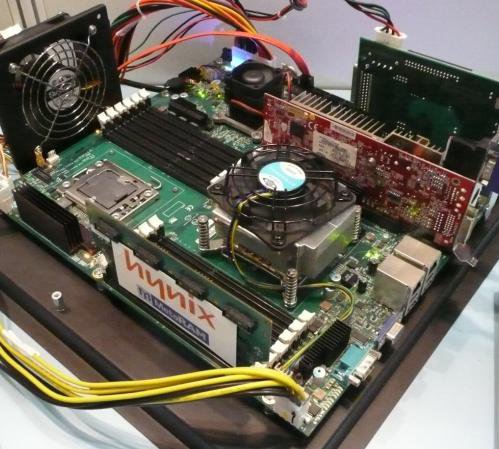

well here we have a Core i7 dual-socket, six-channel DDR3 Tylersburg DP Gainestown-based board from Intel, a server variant with six DDR3-1333 DIMM sockets per CPU (12 total)

As you can see from the photo, the board had only one CPU installed, with a "quickie fix" fan put on top of a large aluminum heatsink - and the fan was cool to the touch while the demo was running, even when putting task loads on. The Tylersburg IOH North Bridge had a fan on top too.

What's interesting here is that the single 8GB MetaRAM Hynix DDR3 DIMM on display is just the start.

Up to 16GB DDR3-1333 modules can be created, allowing up to 96GB RAM per CPU, or 192GB per dual-CPU board.

If you go for slower DDR3-1066 and boards with three DIMMs per channel,- nine DIMMs per CPU - we have 144GB per CPU, or 288GB memory per mobo!
However, the supposed up to 6ns - 8 DDR3-1333 CAS cycles - MetaRAM chip latency penalty could be a bit of a drawback for jobs with lots of short memory accesses.

However, for in-memory databases or large scientific models, the amount of RAM is far more important than its bandwidth or latency.

Not to mention that, with improved large-page TLBs, Nehalems should handle big memory tasks better.
On the other hand, the registered DDR3 server memory will be available in up to 8GB capacity, with somewhat lesser latency penalty.

So, for Gainestown dual Nehalem workstations and servers, if happy with up to 2GB per-DIMM capacity (24 GB RAM total), stick with fast unbuffered - ECC or not - standard modules.

If you need more, i.e. 48 to 96GB total RAM, the registered DDR3 should do the job.

And, if in need of ultra-large memory footprint and 192GB or RAM on your desktop from late 2008, then MetaRAM seems to be the only answer.



[z3r010]

Re: CORE i7 - 2x 4870x2 - LN2

I have not done any research yet, but I was thinking 2x8core 16gb ram but I need at least 2 pcie slots for my 4 monitors.

Hopefully with that spec I should have no trouble doing my main activities of surfing the net and editing php files in notepad+



[Napster]

Re: CORE i7 - 2x 4870x2 - LN2

That's awesome! Always loved LN2



[Everlong]

Re: CORE i7 - 2x 4870x2 - LN2

This will most likely lower the prices of C2s, as I know I won't be able to afford a Nehalem when it's out.

That motherboard too is the most beautiful motherboard I've seen.



[skunksmash]

Re: CORE i7 - 2x 4870x2 - LN2

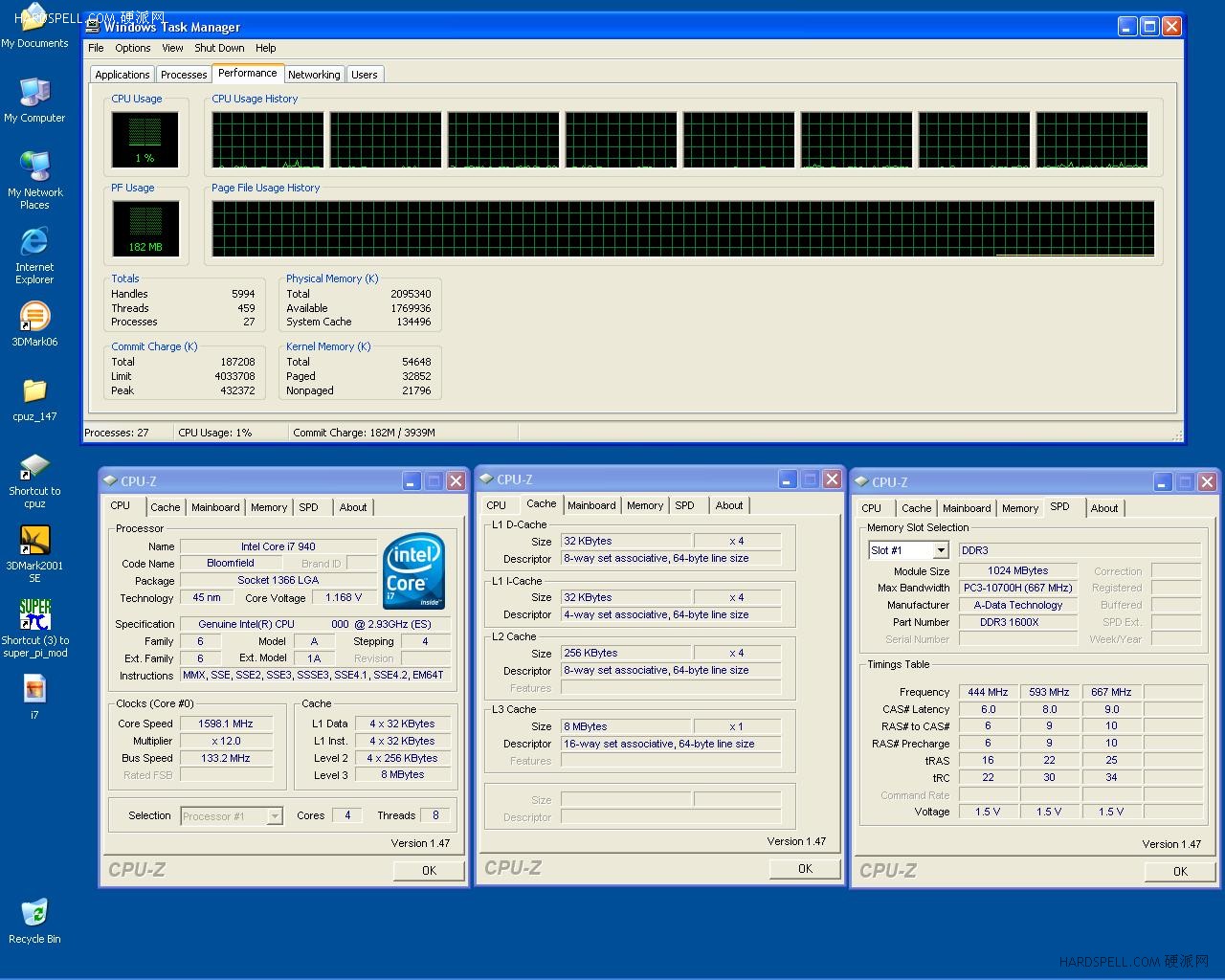

''In a recent sighting of more Gigabyte X58-DS4 pictures, Hardspell posted a CPU-Z screen shot of the board running the 2.93GHz "Bloomfield" chip, which the program identifies as
"Intel Core i7 940."
Could this in fact be true? ....I'm still confused with the hierarchy and "identifiers" of the upcoming Nehalem lineup..''

source

SpeedStep would be my first stop.....

i heard a rumor that these are based on the old ''Netburst'' architecture
hence the HT... plus the low bus speed & high multi. (could be wrong)



[skunksmash]

Trying to decide what your next upgrade is going to be, and when you plan on doing it? Well how about a little information that could help you decide. Just like a previous source on the AMD/ATI 2009 product roadmap we bring you the Intel product roadmap for 2009 to go along with it. Between now and the third quarter of 2009 we can expect to see a few new releases for the desktop platform from Intel. Ranging from high-end extreme editions to base-line consumer models, we have the Bloomfield, Lynnfield and Havendale processors on the way.
To go along with these new processors users can choose from the X58, G45, G43, G41 or the Ibex Peak in late 2009. The X58 chipset providing the most options and highest performance while the Gxx series offering solutions to standard consumers and business customers with its X4500 integrated graphics solution.
Let us have a closer look at some of the more interesting details.

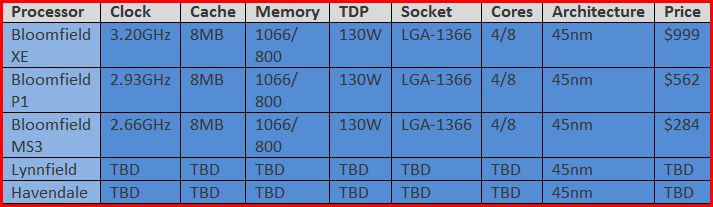

Bloomfield Processor Features: Based on next generation Nehalem architecture - Intel Turbo Boost Techonology* - Intel 8MB Smart Cache - Octo(8) Intel Hyper-Threading across four cores - Integrated Memory Controller – 3 channel DDR3 - Intel QuickPath Interconnect to the X58 Express Chipset - PCI Express 2.0 discrete graphics for multi-card performance (2x16 or 4x8) ATI or Nvidia - Seven new SSE4 instruction sets - Available in 2.66GHz , 2.93GHz and Extreme Edition 3.2GHz - LGA-1366 Socket Interface - Release starts late Q4-08
Lynnfield Processor: Based on next generation Nehalem architecture - Intel Turbo Boost Technology* - Octo(8) Intel Hyper-Threading across four cores - 8MB of Intel Smart Cache - Integrated Memory Controller – 2 channel DDR3 - PCI Express 2.0 discrete graphics for single or multicard performance (1x16 or 2x8) ATI or Nvidia - LGA-1366 Socket Interface - Release starts early Q3-09
Havendale Processor: Based on next generation Nehalem architecture - Intel Turbo Boost Technology* - Quad Intel Hyper-Threading across two cores - 4MB Intel Smart Cache - Integrated Memory Controller – 2 channel DDR3 - Integrated graphics or Discrete graphics support for single card performance (1x16) Nvidia or ATI - LGA-1366 Socket Interface - Release starts early Q3-09
Clarksfield Processor: Based on next generation Nahalem architecture - Octo(8) Intel Hyper-Threading technology on four cores - Intel Turbo Boost Technology* - Up to 8MB of Intel Smart Cache - Integrated Memory Controller – 2 channel DDR3 - Discrete Graphics Support for single or multi card performance (1x16 or 2x8) – Releases in late Q3-09
Auburndale Processor: Based on next generation Nehalem architecture - Quad Intel Hyper-Threading technology on two cores - Intel Turbo Boost Technology - Integrated Memory Controller – 2 channel DDR3 - Integrated Graphics or Discrete Graphics Support for single card performance (1x16) – Releases in late Q3-09
Intel Turbo Boost Technology: Intel Turbo Boost Technology dynamically increases or decreases processor performance based on demand from applications. Dynamically increases clock frequency based on available TDP headroom.

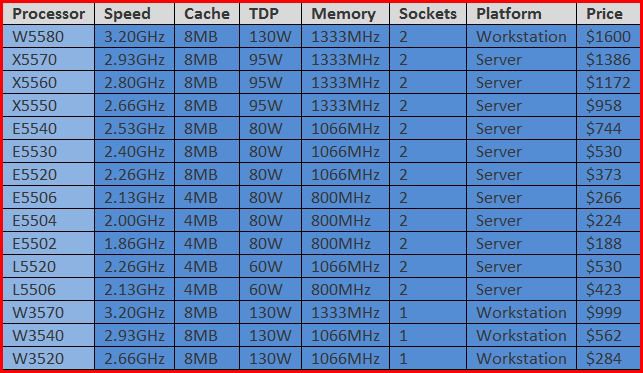

The new Tylersburg 5500 & 3500 series ''Server boards'' are due to start rolling out in Q1 of 2009. Pricing is yet to be determined.
At the same time Intel will be discontinuing many other consumer and enterprise products throughout 2009 as well.
SOURCE

SK



[xguntherc]

I'm thinkin if i do switch over.. it wont be for at LEAST 6 months to a year or more. I want second Gen Nehalem.. I'm still not completely sold on the Nehalem just yet. I think it will be good. but not to amazing. Not to mention that overclocking wont be nearly the same. or as good. Intel is trying to rid the overclocking thing.. there boards will not offer overclocking options I heard. but could be rumor.. take with a grain of salt. but I love my OC'n.. so that needs to be something I can do



[skunksmash]

CORE i7 BENCHED!!!

TWEAK TOWN

if this information is correct the new offering from Intel will wipe the floor with anything previously released by a fair amount!!!!

SK



[smarteyeball]

Put me down for a 965

Unfortunately the serious lack of $$$ may be a bit of a problem



[z3r010]

Looks like I better start planning my new build :D



[Everlong]

Well as you can only use DDR3 with it, looks like I won't be upgrading for over a year yet as I've promised myself to not spend any money on my PC now (that won't last long )

But those benchmarks are crazy.

Hopefully with that spec I should have no trouble doing my main activities of surfing the net and editing php files in notepad+

Hmm, you still might struggle in notepad with a setup like that



[Mr GRiM]

Here is a nice overclock for you all to have a look at
CPU-Z Validator 2.1



[Mr GRiM]

I found this to be the most complete review so far, very interesting!!
PC Perspective - Nehalem Revolution: Intel's Core i7 Processor Complete Review
Also it seems that you can already buy the i7 from some places, see link.
http://www.engadget.com/2008/11/02/intels-core-i7-purchased-overclocked-benchmarked/



[Grazor]

Who really needs 7 lol??
