Crackling sound

[Jekyll and Hyde]

I have one game in which I get crackling sound its Sword of the Stars and the expansion Born of Blood.

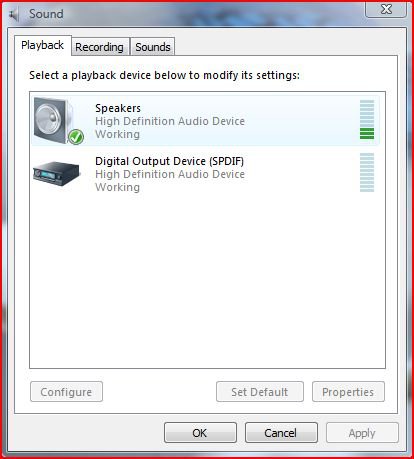

Only problem is I have absolutely no idea what sound I have I used to have realtek, but now all I can see on my system is this.

I don't want to get the latest realtek if it is not what I have, anyone know what mine might be, I realise it will be hard but I have no other idea of where else to look, to be more helpful. It just says High Definition Audio Device

Hope someone may know

Jekyll and Hyde



[stormy13]

I don't want to get the latest realtek if it is not what I have

It is, or at least according to what is available from Abit it is,

Universal abit > Motherboard, Digital Speakers, iDome, AirPace, Multimedia

Seeing as what they have is the R1.90 and the latest is R2.10, I would go with the latest,

http://www.vistax64.com/sound-audio/64250-new-realtek-hd-audio-driver-update.html

unless some of the other Realtek users have a better recommendation that the current driver.



[smarteyeball]

If it's only happening in one game, it may be the games sound settings itself.

Try SIW or Everest to find out the ins and outs of what hardware is installed on your PC:

SIW
SIW | Download

Everest
Lavalys - Comprehensive IT Security and Management

Both are handy



[Jekyll and Hyde]

Ok thanks chaps will do

Jekyll and Hyde



[Jekyll and Hyde]

I downloaded that SIW jobby and it is very informative, but on looking at the Sound section I cannot see anything that says Realtek

I am lost

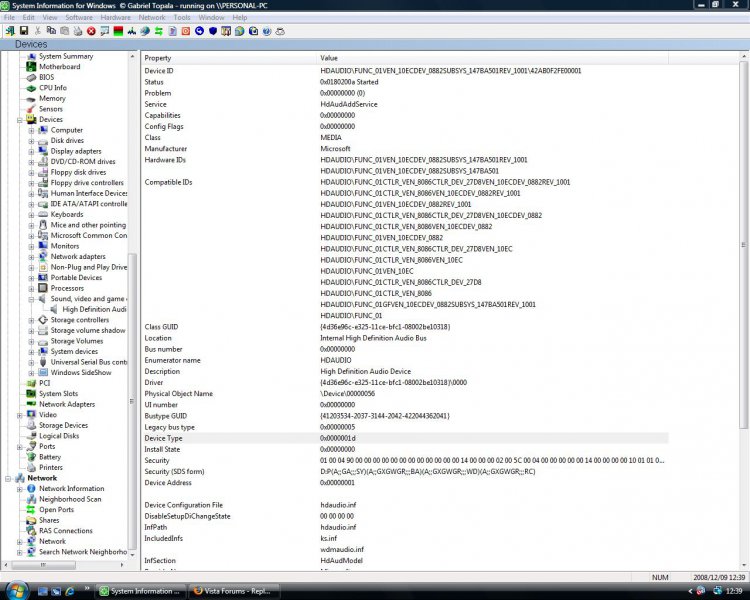

Here is what the SIW reports, although I may be looking in the wrong place, typical

I am starting to think that maybe the sound is meant to crackle, it would help if anyone else with this game could let me know if its the same only I say this because it seems to do the crackling when the ships move, the engines fire up and maybe its done for effect.....I don't know........I don't want to go altering anything as my other games are all fine and I have never updated my onboard sound......as the saying goes "If it aint broke don't fix it" lol

Jekyll and Hyde



[stormy13]

That and the previous screen shot are not showing anything at all regarding the onboard audio. In fact the three INF's showing in the second (hdaduio.inf, ks.inf and wdmaudio.inf) are all Microsoft files realting to the Microsoft UAA HD driver, and only used if your device supports it.

That being said have a look in Device Manager and see if there is anything audio or multimedia related that is showing with the yellow triangle/exclamation mark, as SIW isn't showing anything like that. If there is then you will need to re-install the Realtek drivers. If there isn't have a quick look in the bios and make sure that the onboard audio is still enabled.



[Jekyll and Hyde]

Ok I checked the Device Manager and no yellow exclamation marks or triangles, and whats worrying me even more is that there is no mention of Onboard Sound either in the Bios that is

But the weird thing that I just can't get my head round is that I have perfect sound in everything apart from that one game that has that crackling

Jekyll and Hyde



[smarteyeball]

If your hearing sound, don't have a sound card physically installed, then your onboard is not disabled

The links that Stormy provided are the correct ones for your board. here's another quick link to the 2.10 drivers:

AusGamers Files - Realtek High Definition Audio Driver R2.10 for Windows

The fact that it's only one game pretty much narrows down the cause the to S.o.t.s itself.

In the games audio options screen, have you set it to:

Stereo

44khz

16bit

Hardware : no

try adjusting the frequency and bit depth to see if has any impact.



[Jekyll and Hyde]

Thanks mate and to all you guys :D

I really hate any sound trouble as its a major thing for me to have just right, and when things play up, its a nightmare for me to sort out, but I'lll grab the update and then check my settings

Many thanks again

Jekyll and Hyde



[stormy13]

Don't know if you look there or not but according to the manual (and what a fun time it was finding that) the setting for the onboard audio is under the,

Integrated Peripherals -> On-Chip PCI Device

section and listed as "On-Chip Audio Controller" with the default setting being Auto; doesn't say in the manual whether there is also Enabled or Disabled, but if you find it and it is set to Auto set it to Enabled if you can.



[Jekyll and Hyde]

I'm ebarrassed to say this but that all goes over my head I know I'm thick but which manual? do you mean there is one in that download? or somewhere else

I'll go look around for it in the meantime, and check

I am also unsure what setting is best for me as I found a dropdown list of loads of things such as:

Padded Cell (in which I should be) and many others

Sorry for being so dumb, and I appreciate your help with this very much

Jekyll and Hyde



[stormy13]

Should look like this in the bios,

I know I'm thick but which manual?

Should have gotten one with the motherboard. If you didn't get one (or have lost it) don't try getting it from Abit as it appears they are cleaning out their FTP server in anticipation of shutting down next year (tip for anyone looking at buying any abit products in the near future, don't). You can download it from here,

ftp.csie.nctu.edu.tw/pub/Vendors/abit/manual/english/ - FTP Browser

the one you want is the aw9d_series.zip .



[Jekyll and Hyde]

I see what you mean now brains not in gear yet, thanks :D

Well that is a blow to hear that about Abit........so I suppose that my Motherboard will not get anymore updates once they pack up, great!!! I can't afford to get a new one of something else, so if this thing blows I've had it

Jekyll and Hyde



[stormy13]

Not that it helps with the problem but a little more info about Abit,

Universal abit - Wikipedia, the free encyclopedia

On January 25, 2006, ABIT announced that USI intended to purchase ABIT Computer's motherboard business and brand and announced a special shareholders meeting to discuss the sale of ABIT's Neihu building, changing ABIT's company name, the disposition of the company's assets, and the release of the directors from non-competition restrictions. ABIT sold its own office building in Taipei to Deutsche Bank in order to raise money to cut its debt.
Following USI's acquisition of the motherboard business, the remaining divisions of ABIT switched to distributing components and networking products, while using its Suzhou, China plant only to offer some motherboard contract manufacturing services.
The acquired motherboard business and the 'ABIT' brand name are now being used today by USI under the new brand name Universal abit. In the US, it is known as Universal abit USA Corporation. The old company, ABIT Computer Corporation (USA), is now dissolved and is no longer in existence.
By 2009, Abit will no longer sell motherboards and may focus on CE field. Warranties will still be handled by Abit for another 3 years or so.



[Jekyll and Hyde]

Well that option in the Bios was set to Auto but I have switched it to Enabled now

Thanks for the help Stormy13


Oh well looks like I will have to hope that this Mobo can hold out for a couple more years at least, and I doubt that, as it was installed in July 07

I don't know how long these things last but knowing me, not that long

Cheers

Jekyll and Hyde



[stormy13]

Let's try something. Follow the instructions here,

http://www.microsoft.com/technet/pr...serv/reskit/prork/prdh_dmt_tolm.mspx?mfr=true

and see if the onboard is showing as a hidden device.



[Jekyll and Hyde]

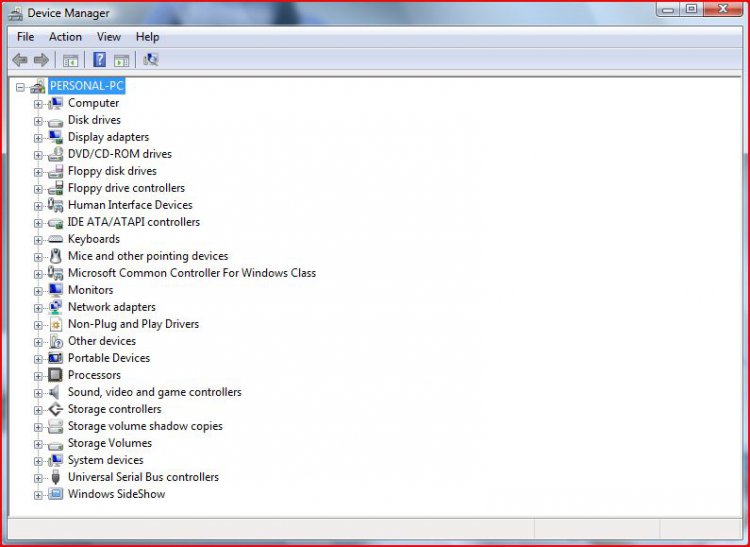

Ok this is what came up in Device Manager having done what your link told me


Jekyll and Hyde



[stormy13]

OK that says everything is installed and working correctly. Non-present devices won't show until you expand the category that they are listed under. I posted this in another thread recently,

In my case all the grayed out devices are a couple of mp3 players and a USB hub that weren't connected at the time. reason there is so many of them is I have a tendency to forget which USB port I used the last time, and Windows goes and installs the driver for it again, hence the multiple devices.

Anyway in your case what shows under "Sound, video and game controllers" when you expand it?



[Jekyll and Hyde]

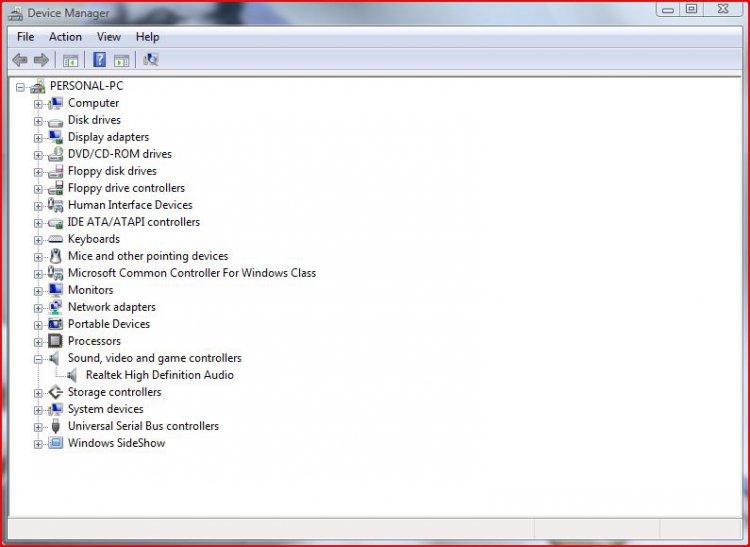

Had to dash of to dinner, sorry about that, right here we go:


Only one thing there for me, but it does not say what I was expecting and that was Realtek etc.......

Jekyll and Hyde



[stormy13]

What is SIW showing for a sound device now?

P.S. That screen shot is Device Manager in normal mode and not set to show non-present devices.
