Display Settings - Enable or Disable Changing How to Enable or Disable Changing Display Settings in Vista
This will enable or disable the ability to change the Display Settings for all users on the computer. The Display Settings include DPI size, screen resolution, screen refresh rate, and color depth.
Published by Brink Category: Customization
#1
ByLine
How to Enable or Disable Changing Display Settings in Vista
Synopsis
This will enable or disable the ability to change the Display Settings for all users on the computer. The Display Settings include DPI size, screen resolution, screen refresh rate, and color depth.
How to Enable or Disable Changing Display Settings in Vista

information   Information
This will enable or disable the ability to change the Display Settings for all users on the computer. The Display Settings include DPI size, screen resolution, screen refresh rate, and color depth.
Note   Note
Changing the Display Settings is enabled by default in Vista.

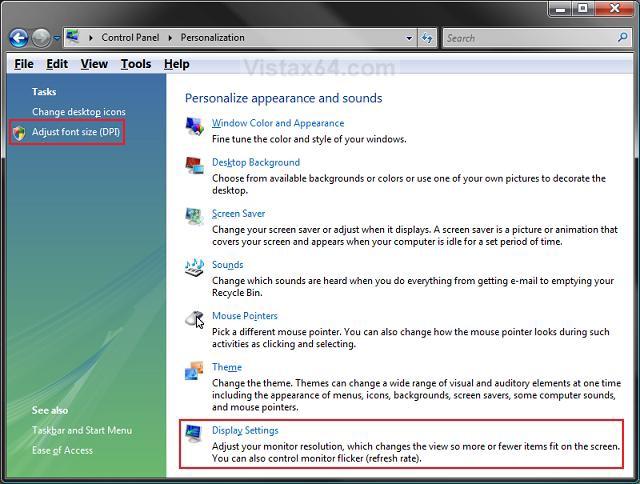

EXAMPLE: Display Settings and DPI link in the Personalize window
NOTE:
You will see this window by right clicking on a empty space on the desktop and click Personalize, or opening the Control Panel (Classic View) and click on the Personalization icon.

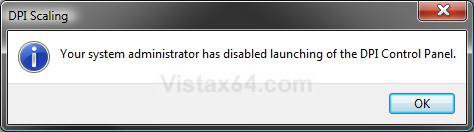

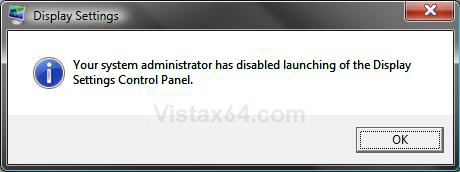

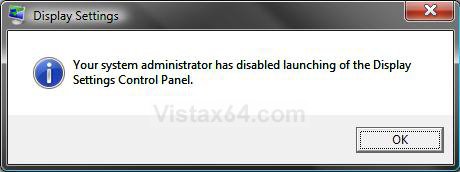

EXAMPLE: Changing the Display Settings and DPI size are Disabled Message
NOTE:
These are the messages you get when you click on the links boxed in red above when changing the Display Settings is disabled.






OPTION ONE
Through the Local Group Policy Editor

1. Open the all users, specific users or groups, or all users except administrators Local Group Policy Editor for how you want this policy applied.​

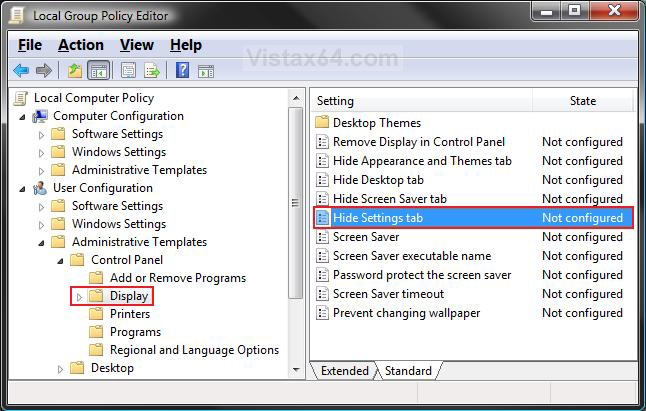

2. In the left pane, click on User Configuration, Administrative Templates, Control Panel, and Display. (See screenshot below step 5)​

3. In the right pane, right click on Hide Settings tab and click on Properties. (See screenshot above)​
4. To Enable Changing the Display Settings

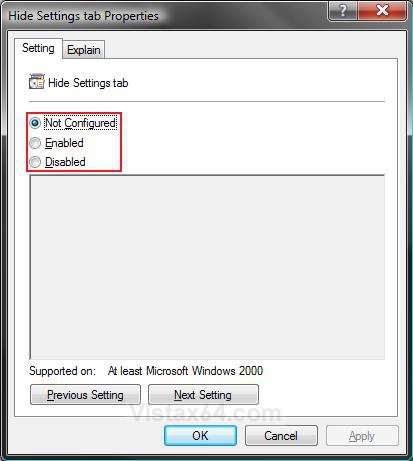

A) Select (dot) Disabled or Not Configured and click on OK. (See screenshot below step 7)​
B) Go to step 8.​
5. To Disable Changing the Display Settings
A) Select (dot) Enabled and click on OK.​

6. Close the Local Group Policy Editor window. Your done.​




OPTION TWO
Using a REG File Download

1. To Disable Changing the Display Settings
A) Click on the Download button below to download the file below.​
Disable_Display_Settings.reg
download

B) Go to step 3.​

2. To Enable Changing the Display Settings
A) Click on the Download button below to download the file below.​
Enable_Display_Settings.reg
download

3. Click on Save, and save the .reg file to the Desktop.​
4. Right click on the downloaded .reg file and click on Merge.​
5. Click on Run, Continue (UAC), Yes, and then OK when prompted.​
6. When done, you can delete the downloaded .reg file if you like.​



OPTION THREE
Manually in Registry Editor

1. Open the Start Menu.​
2. In the white line (Start Search) area, type regedit and press Enter.​
3. Click on the Continue button in the UAC prompt.​

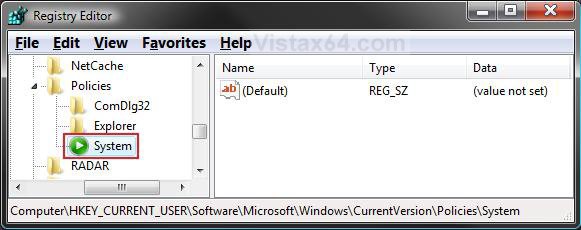

4. In regedit, go to: (See screenshot below)​
NOTE: If you do not have System, then right click on Polices and click on New and Key. Type System and press Enter.
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Policies\System

5. To Disable Changing the Display Settings
A) In the right pane of System, right click on a empty area and click on New and DWORD (32-bit) Value. Type NoDispSettingsPage and press Enter. (See screenshot below)​
B) Right click on NoDispSettingsPage and click on Modify.​

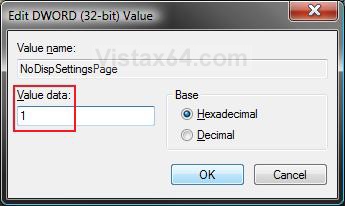

C) Type 1 and click on OK. (See screenshot below)​

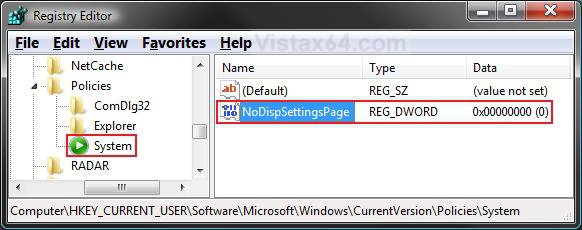

D) The registry will now look like this. (See screenshot below)​

E) Go to step 7.​

6. To Enable Changing the Display Settings
A) In the right pane of System, right click on NoDispSettingsPage and click on Delete. (See screenshot above)​
B) Click on Yes to confirm delete.​

7. Close regedit.​
That's it,
Shawn



Last edited:

My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#3
Your welcome Charukesi, and welcome to Vista Forums.

Shawn


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

di_dong

New Member
Messages
2
#4
Hi, Brink.
I have 2 files names nodispbackgroundpage and nodispscrsavpage in the field System of Policies. I think that's why my desktop background option and screen saver option disabled. I tried to delete them. But whenever I deleted them and log off then log in, they appeared again. I don't know why!
Please kindly help me soon!
Thank you so much!


My Computer

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#5
Hello di_dong, and welcome to Vista Forums.

Delete them again in this area of the registry, but also check to see if they are at this location to:

HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\Curr entVersion\Policies\Explorer

If so, delete them from here to and restart the computer to apply.

Hope this helps,
Shawn


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

di_dong

New Member
Messages
2
#6
Hi Brink,
Thanks for your reply. However, I found out that my problem is because of a virus which has just been deleted so my computer's okay now. Anyway, thank you very much for your help. I bookmarked this forum and found it great!Many thanks again!
:D


My Computer

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#7
Di_Dong,

I'm happy to hear that you got it sorted out. Thank you for posting your results.

Shawn


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

ilikefree

Vista Guru
Gold Member
Messages
2,877
Location
New Zealand
#8
Does this stop windows from changing my resolution when i connect my external monitor?
When I connect to my TV the resolution changes to a size where the settings box is off the screen and I am unable to click on anything to bring it back.
In my last laptop I had a setting I had made to have single or dual monitor but I have forgotten how I made it now as it was about 2004 I made it
I was able to right click the desktop and select either dual or laptop


My Computer

System One

  • Manufacturer/Model
    Lenovo Thinkpad T400
    CPU
    Intel Mobile Core 2 Duo P8700 @ 2.53GHz
    Motherboard
    LENOVO 64734VM
    Memory
    2.00GB Single-Channel DDR3 @ 531MHz
    Graphics Card(s)
    Intel Mobile Intel 4 Series Express Chipset Family
    Sound Card
    Conexant 20561 SmartAudio HD
    Monitor(s) Displays
    15 inch
    Screen Resolution
    1280 x 800
    Hard Drives
    1x 180GB Intel 530 series SSD
    1 x 120GB Hitachi 5400rmp
    1 x 650GB Western Digital Elements 5400rpm
    1x 1Tb Western Digital Elements 5400rpm
    Internet Speed
    Medium for New Zealand
    Other Info
    Weakest part of my computer is the graphics chipset.
    Only ever used a laptop.
    Also use USB Freeview TV Card
    Lenovo Docking Station
    External Speakers
    Other bits a pieces as needed

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#9
Hey Roger,

I'm afraid that it's only to hide or show the Display Settings window for users to make any changes. It won't prevent system (Windows) from automatically doing so.

You might also check the settings in your video driver software (Intel?) to see if it may have a setting for what you wanted.


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Users Who Are Viewing This Thread (Users: 1, Guests: 0)
