Drive Icon Change How to Change a Drive Icon in Vista
This will show you how to change any drive icon that uses a drive letter to whatever icon you want in a user account. These will be the ones that show up in Computer with a drive letter. This is not to fix a missing drive icon.
Published by Brink Category: Customization
#1
ByLine
How to Change a Drive Icon in Vista
Synopsis
This will show you how to change any drive icon that uses a drive letter to whatever icon you want in a user account. These will be the ones that show up in Computer with a drive letter. This is not to fix a missing drive icon.
How to Change a Drive Icon in Vista


information   Information
This will show you how to change any drive icon that uses a drive letter to whatever icon you want in a user account. These will be the ones that show up in Computer with a drive letter.
Note   Note

  • This is not to fix a missing or changed drive icon that just happened out of the blue, but to replace it with one you want instead of the default one. If the drive icon went missing or changed to some odd one, then try rebuilding the icon cache first. See: How to Rebuild the Icon Cache in Vista
  • If you want to also rename the drive, then see: How to Rename a Drive in Vista
warning   Warning
The icons you decide to use must be a 256x256 bit .ico (icon) file, not .png, to be used in Vista without viewing problems. A png file must be converted to a 256x256 ico file before it can be used. To convert a PNG to ICO you must use a program such as this with a free 30 day trial program called: Axialis IconWorkshop: Axialis IconWorkshop Download Page
Tip   Tip

  • The default icon path for the C:\ drive is located at C:\Windows\System32\imageres.dll,30.
  • Here's a good location for some free icons: deviantArt: Dock Icons
  • If your default drive icon is missing or was changed and you did not do it with the methods below, then look for a hidden (not always hidden though) autorun.inf when you open the drive letter in Computer and right click on the autorun.inf file and click on Delete. Next, approve the deletion.

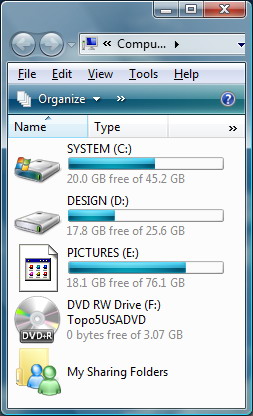

EXAMPLE: METHOD ONE Before and After Drive Icon Change
EXAMPLE: METHOD TWO Before and After Drive Icon Change



OPTION ONE
For a Single User Account

NOTE: This will only change the drive icons for the user account that you are currently logged on in.
1. Open the Start Menu.​
2. In the white line (Start Search) area, type regedit and press Enter.​
3. Click on Continue in the UAC prompt.​

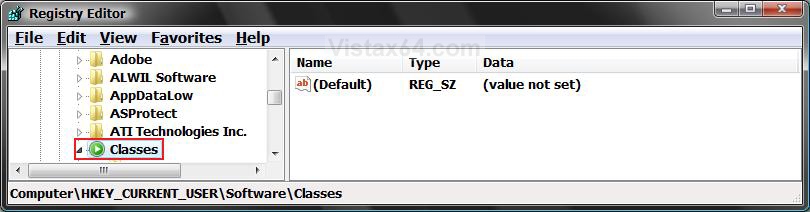

4. In regedit, go to: (See screenshot below step 5)​
HKEY_CURRENT_USER\Software\Classes

5. In the left pane, right click on Classes and click on New and Key.​
NOTE: If you already have the Applications key under Classes, then go to step 7.​

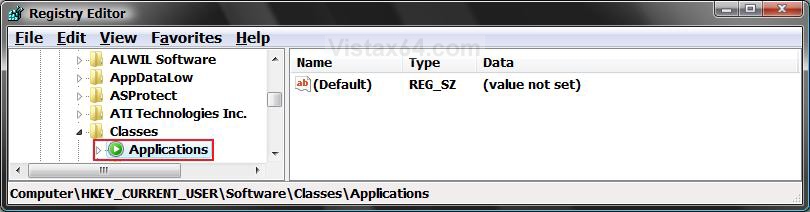

6. Type Applications and press Enter. (See screenshot below)​
7. In the left pane, right click on Applications and click on New and Key.​
NOTE: If you already have the Explorer.exe key under Applications, then go to step 9.​

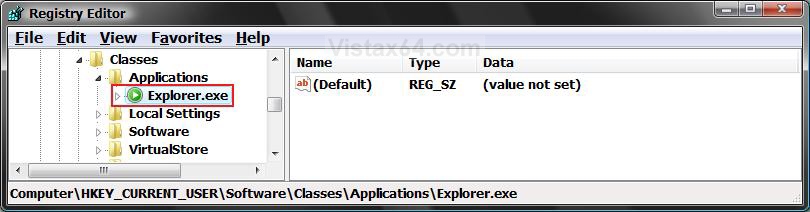

8. Type Explorer.exe and press Enter. (See screenshot below)​
9. In the left pane, right click on Explorer.exe and click on New and Key.​
NOTE: If you already have the Drives key under Explorer.exe, then go to step 11.

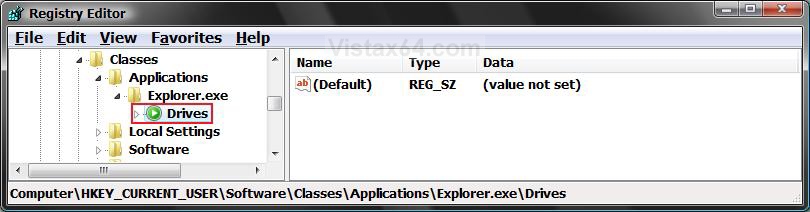

10. Type Drives and press Enter. (See screenshot below)​
11. In the left pane, right click on Drives and click on New and Key.​
NOTE: If you already have the Drive Letter (EX: C) key under Drives, then go to step 13.​

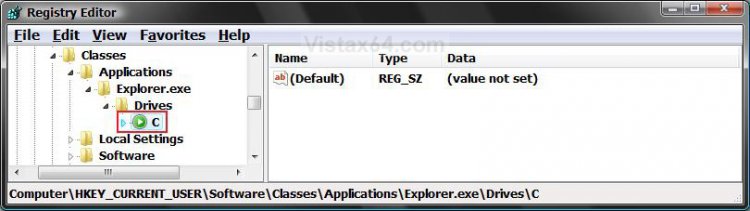

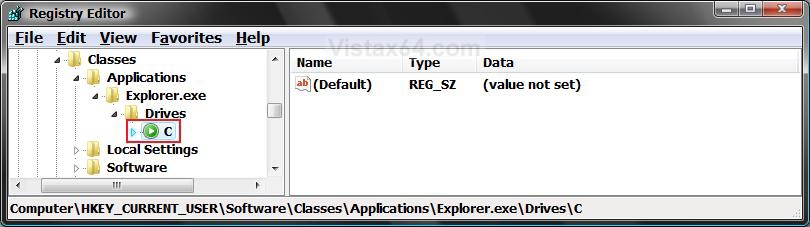

12. Type the drive letter (EX: C) you want to change the drive icon for and press Enter. (See screenshot below)​
13. In the left pane, right click on the drive letter (EX: C) and click on New and Key.​
NOTE: If you already have the DefaultIcon key under the drive letter, then go to step 15.​

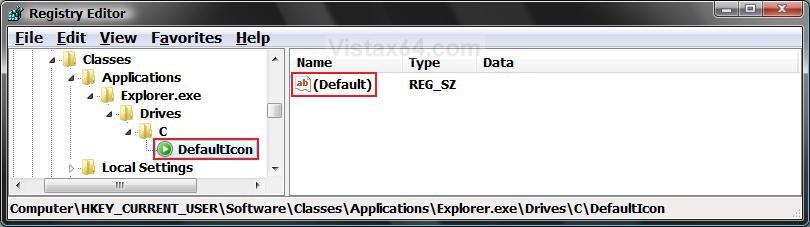

14. Type DefaultIcon and press Enter. (See screenshot below)​
15. In the right pane, right click on (Default) and click on Modify.​

16. To Restore the Default Drive Icon
A) Empty the Value data field and click on OK. (See screenshot below step 17)​
B) Go to step 19.​

17. To Change the Drive Icon

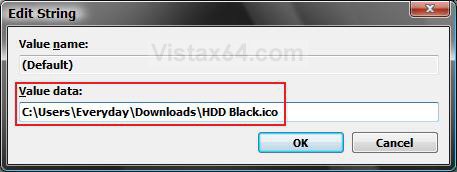

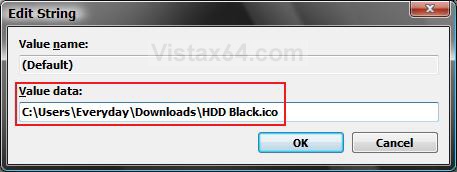

A) Type in the full path of where the icon is saved at and click OK.​
(EX: C:\Users\Everyday\Downloads\HDD Black.ico)​
NOTE: The icon will need to remain in it's location for as long as you are using it. You can use any icon (.ico file) you want, or one that came with Vista. (EX: A .dll file path) See the How to Use a DLL OR EXE Icon Library Filebelow.​

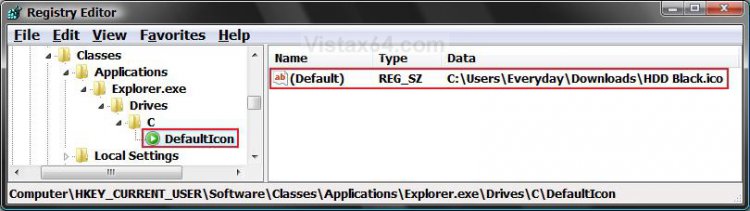

18. The registry should look similar to this now. (See screenshot below)​

19. Close regedit.​
NOTE: The change will be immediate. If you have Computer open, then you may need to press F5 to refresh the window to see the new icon. If you used a wrong icon size for the drive icon, then you may need to change the window's icon size in the View or Views menu to a smaller size.
20. Repeat steps 11 to 19 if you want to add another drive letter icon to change.​
21. In some cases, you may need to restart the computer to apply the changes.​
Tip   Tip
How to Use another Icon from Vista
Tip   Tip

A) Download and install the free program IconViewer for your 32-bit or 64-bit Vista.​
NOTE: This program will add a Icons tab to files (ex: imageres.dll) that contain a icon library in them so you can see the icons available in it.​
B) In Windows Explorer, navigate to C:\Windows\System32\imageres.dll and right click on imageres.dll, click on Properties, and click on the Icons tab.​
NOTE: You can use any of the Vista files that include icons in them that you want though. This is just the most common one.

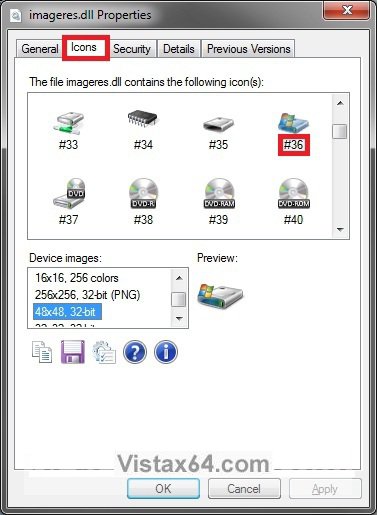

C) Scroll through the icons and make note of the icon number of the one you want to use to replace the default file extension icon with, then close the properties window. (see screenshot below)​
NOTE: For example, icon number 36 for the default C drive icon.​






OPTION TWO
For All User Accounts

NOTE: This method can be helpful for using with optical (DVD) or removable drives.
CREDIT TO: Member:AvatarOfTheShip
1. Open the Start Menu.​
2. In the white line (Start Search) area, type regedit and press Enter.​
3. Click on Continue in the UAC prompt.​

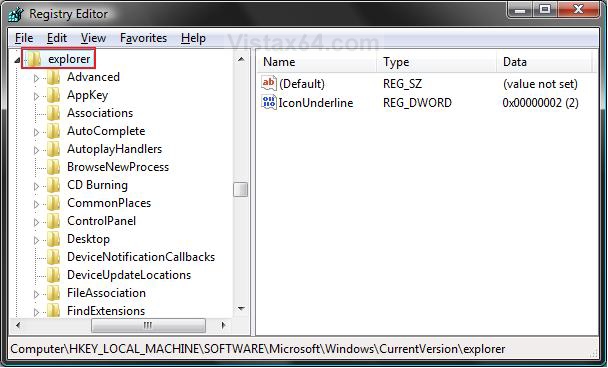

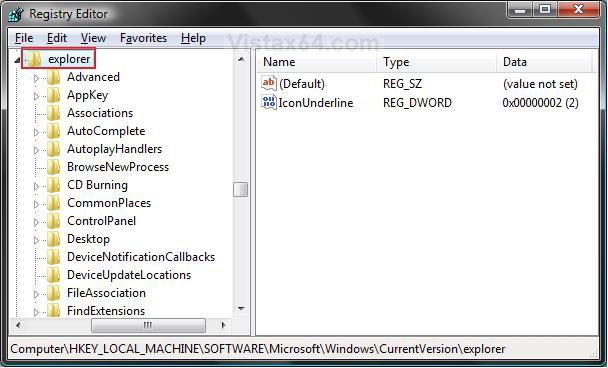

4. In regedit, go to: (See screenshot below step 5)​
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\explorer

5. In the left pane, right click on explorer.exe and click on New and Key.​

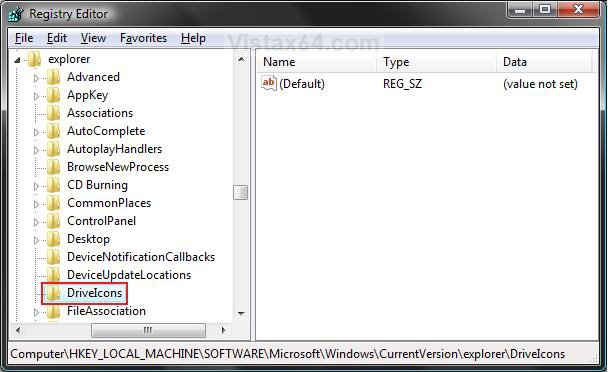

6. Type DriveIcons and press Enter. (See screenshot below)​
7. In the left pane, right click on DriveIcons and click on New and Key.​

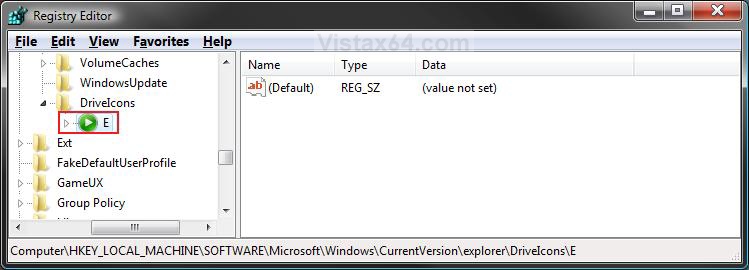

8. Type the drive letter (EX: D) you want to change the drive icon for and press Enter. (See screenshot below)​
9. In the left pane, right click on the drive letter (EX: D) and click on New and Key.​
NOTE: If you already have the DefaultIcon key under the drive letter, then go to step 11.​

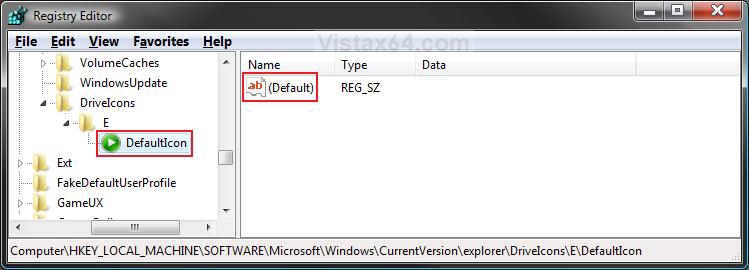

10. Type DefaultIcon and press Enter. (See screenshot below)​
11. In the right pane, right click on (Default) and click on Modify.​

12. To Restore the Default Drive Icon
A) Empty the Value data: field and click OK. (See screenshot below step 13)​
B) Go to step 15.​

13. To Change the Drive Icon

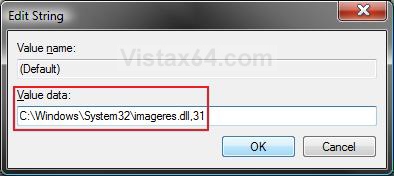

A) Type in the full path of where the icon is saved at and click OK.​
(EX: C:\Windows\System32\imageres.dll,31)​
NOTE: The icon will need to remain in it's location for as long as you are using it. You can use any icon (.ico file) you want, or one that came with Vista. (EX: A .dll file path) See the How to Use a DLL OR EXE Icon Library Fileabove.​

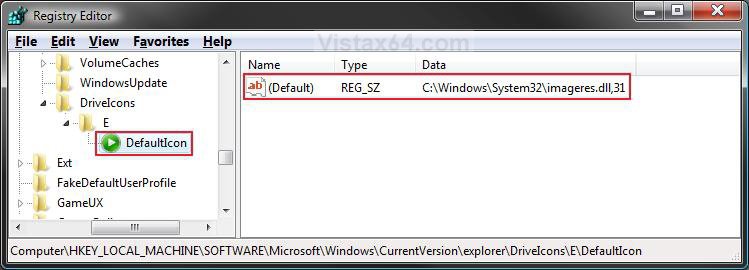

14. The registry should look similar to this now. (See screenshot below)​

15. To Rename the Dive
NOTE: This is helpful for something like a DVD (optical) drive since they cannot be renamed through the normal method here: How to Rename a Drive in Vista
If you do not want to rename the drive, then skip this step and go to step 16 below instead.​
A) In the left pane, right click on the drive letter (Ex: D) and click on New and Key. (See screenshot below)​

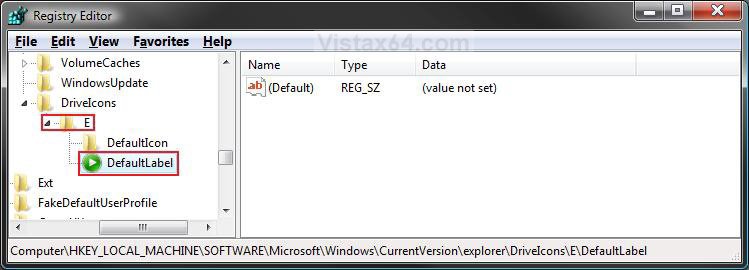

B) Type DefaultLabel and press Enter.​
C) In the right pane, right click on (Default) and click on Modify.​

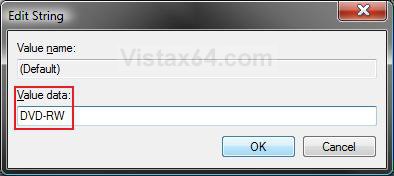

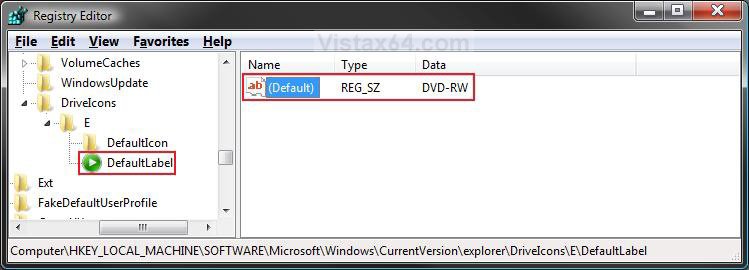

D) Type the name you want (Ex: DVD-RW) and click OK. (See screenshot below)​
NOTE: To Restore the Default Drive Name, leave this blank.​

E) The registry will now look similar to this. (See screenshot below)​

16. Close regedit.​
NOTE: The change will be immediate. If you have Computer open, then you may need to press F5 to refresh the window to see the new icon. If you used a wrong icon size for the drive icon, then you may need to change the window's icon size in the View or Views menu to a smaller size.
17. Repeat steps 7 to 16 if you want to add another drive letter icon to change.​
18. In some cases, you may need to restart the computer to apply the changes.​
That's it,
Shawn


Related Tutorials



Last edited by a moderator:

My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

niGht kiD

hello KiDdy
Member
Messages
30
Location
Malaysia
#2
Thanks so much again Shawn, for taking your time to write this tutorial :D

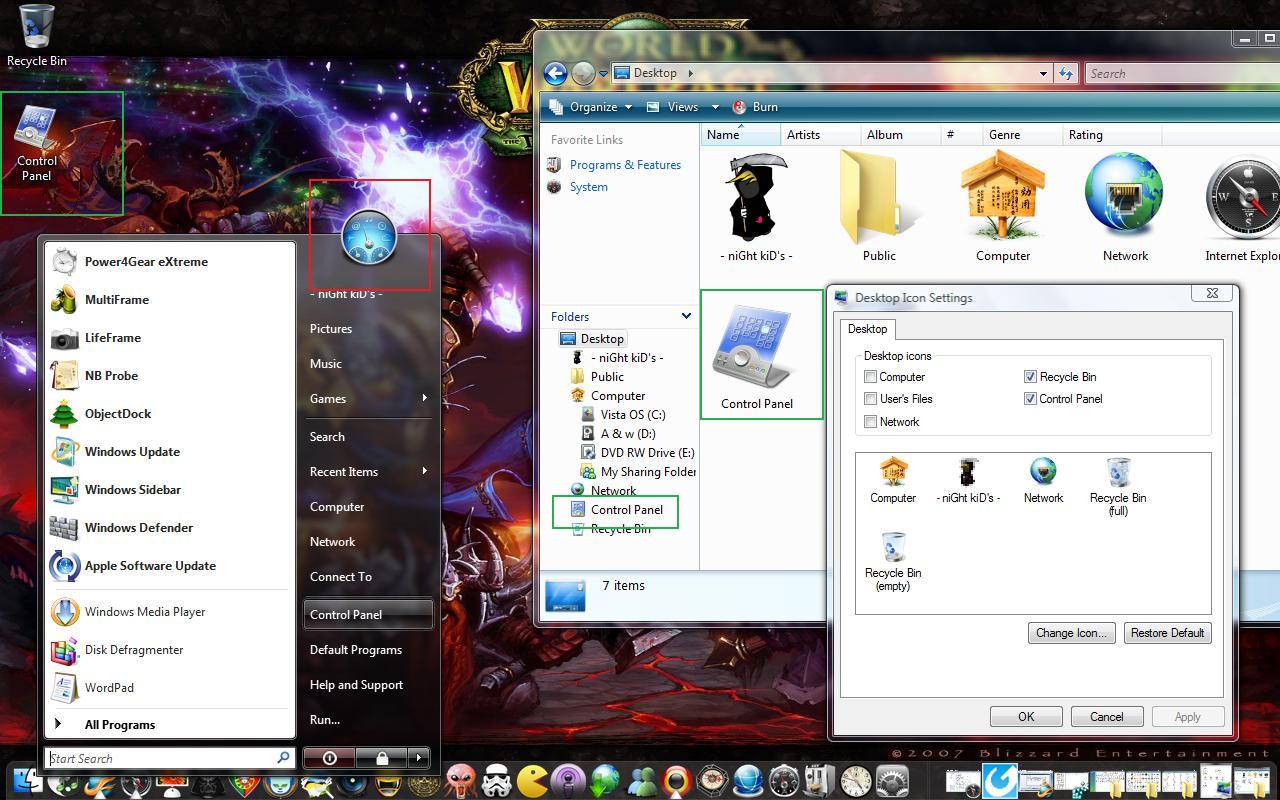

I've tried the Vista Manager that u recommended me yesterday. The Icon Manager is easy to use but I notice a small problem in changing the icon of control panel(not those icons in control panel, but the control panel itself). The icon I chose only applies to the one in Start Menu, the icon of control panel on my desktop & navigation window still remain the same. I just like to find out if there's way to fix it :p
