How to Use and Create a Flip 3D Shortcut in Vista
Synopsis
This will show you how to open and use Flip 3D, plus how to create a Flip 3D shortcut. This is also known as Switch Between Windows in Quick Launch.
How to Use and Create a Flip 3D Shortcut in Vista

information   Information
This will show you how to open and use Flip 3D, plus how to create a Flip 3D shortcut. Flip 3D is used to flip through your currently open windows in a easy to use format without having to click on the taskbar. Flip 3D displays your open windows in a stack. At the top of the stack, you'll see one open window. To see the other windows, you flip through the stack. Flip 3D is called Switch between windows in Quick Launch.
warning   Warning

HARDWARE REQUIREMENTS FOR: WINDOWS AERO
See: Windows Help and Support: Troubleshoot problems with Windows Aero

NOTE: The Windows Aero color scheme is not available for the Vista Home Basic version. :(
  • 1 GHz 32-bit or 64-bit processor
  • 1 GB of system memory
  • A graphics card with support for DirectX 9 graphics with at least 128 MB of memory.
  • The graphics card must support Pixel Shader 2.0 and the Windows Display Driver Model (WDDM).
  • You must be have True Color (32 bit) set instead of High Color (16 bit).
  • The Desktop Window Manager Session Manager and Themes Services need to be set as Started and Automatic.
  • Refresh or update your WEI score.
  • The Windows Aero color scheme selected and turned on.
  • The Enable desktop composition and Animate controls and elements inside windows options enabled in Visual Effects.
Tip   Tip
Keyboard Shortcut Keys without using Flip 3D
NOTE: This is for when you are using a color scheme other than Windows Aero. Press the key combinations below to activate. You will see this instead if your computer does not support Windows Aero Flip 3D.

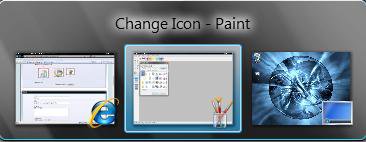

  • Alt + Tab = Press these two keys and hold down Alt and press Tab to scroll through the open windows. Release the Alt key to see the window that is highlighted.
  • Ctrl + Alt + Tab = Choose the window to see by clicking on it, or press Tab to scroll through the open windows and press Enter to see the window highlighted.

Keyboard Shortcut Keys for Flip 3D
NOTE:
Press the key combinations to activate. This is not supported in Vista Home Basic.
  • Windows Key + Tab = Press and hold Windows Key, then press Tab (Or roll mouse scroll wheel) to scroll through the open windows. Choose the open window you want by releasing the Windows Key when it is up front.
  • Ctrl + Windows Key + Tab = Scroll through the open windows by pressing the Tab key, arrow keys, or roll the mouse scroll wheel. Click on the window you want to see, or press Enter when it is up front.

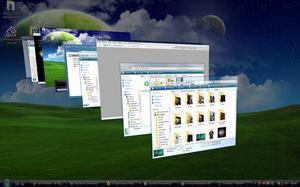

Flip 3D.jpg

Quick Launch Shortcut
NOTE:
It is called Switch between windows in Quick Lauch. Use the Tab or Arrow keys to scroll through the open windows, then press Enter to select the window in the front.







METHOD ONE
Download the Shortcut

1. Click on the download button below to download the Flip 3D.zip file.​
download

2. Click on Save and save it to the Desktop.​
3. Right click on the Flip 3D.zip file (on desktop) and click on Open.​
4. Click on Allow for UAC prompt.​
5. Extract the Flip 3D shortcut to the desktop.​
6. Put the shortcut where you like to use it at.​
7. When done, you can delete the Flip 3D.zip file (on desktop) if you want to.​
8. See the yellow How to Add the Flip 3D Shortcut Back to Quick Launch TIP box below.​




METHOD TWO
Manually Create the Shortcut

1. Right click on a empty area on desktop.​
2. Click on New and Shortcut.​

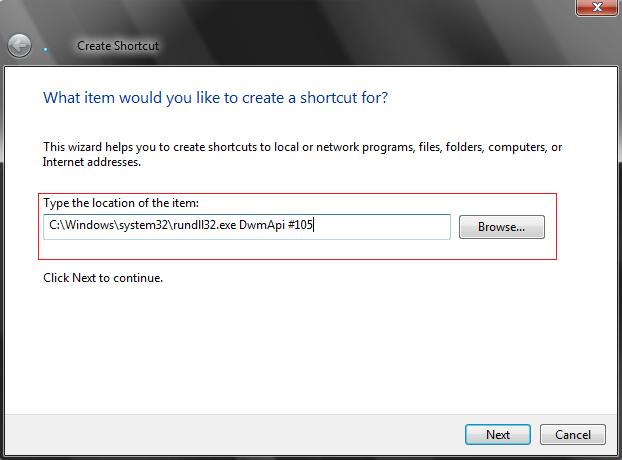

3. Type C:\Windows\system32\rundll32.exe DwmApi #105 into the location area. (See screenshot below)​

4. Click on the Next button.​

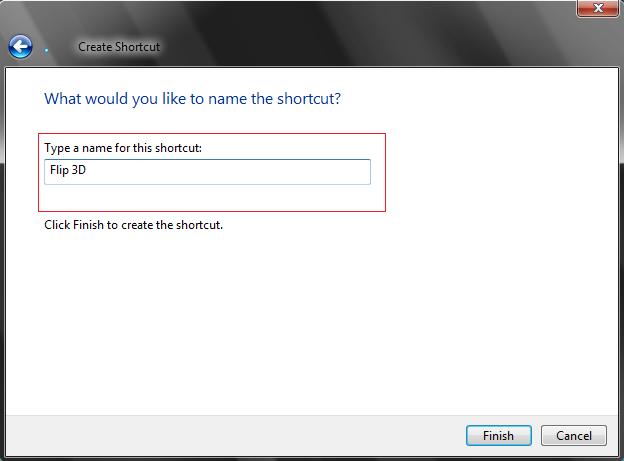

5. Type Flip 3D for the name. (See screenshot below)​
NOTE: You can name this anything you would like though.​

6. Click on the Finish button.​

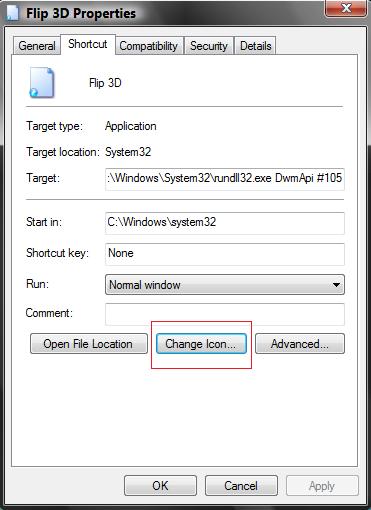

7. Right click on the new Flip 3D shortcut (on Desktop) and click on Properties.​

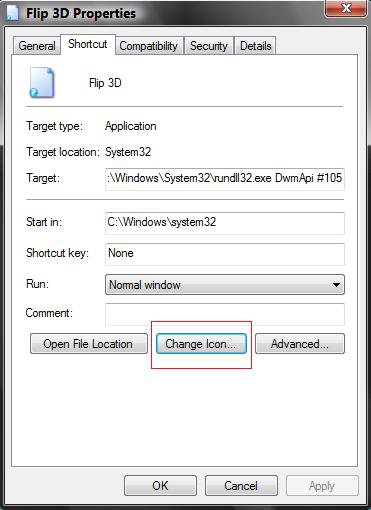

8. Click on the Change Icon button. (See screenshot below)​

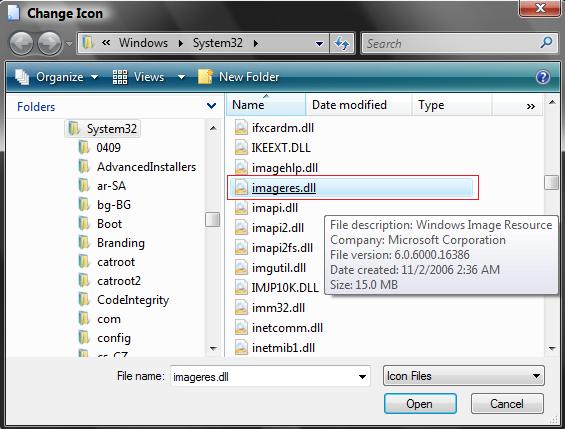

9. Click on the Browse button and scroll down and click on the file imageres.dll and on the Open button.​
(See screenshot below)​

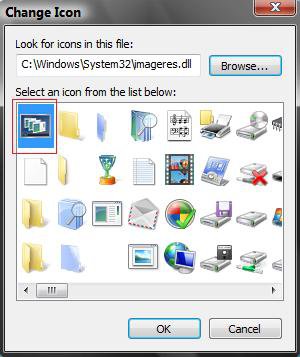

10. Click on the upper left icon, highlighted in blue, and click OK. (See screenshot below)​
Change Icon.jpg

11. Click OK to apply.​
12. Copy or move the shortcut to where you would like for easy use.​
Tip   Tip
How to Add the Flip 3D Shortcut Back to Quick Launch
NOTE:
Originally called Switch between windows in Quick Launch.

1. Go to: How to Use Quick Launch in Vista
NOTE: See OPTION ONE under the How to Add or Remove Shortcuts to Quick Launchsection at this link.

2. Move the new Flip 3D shortcut (On Desktop) from above to inside the Quick Launch folder location.



That's it,
Shawn




Attachments

  • Flip 3D.zip
    617 bytes · Views: 12,284
Last edited:

jilka007

New Member
:cool: Excellent post, I could not find this anywhere else in the Internet. Super, Thanks a lot. My Quick launch got deleted by a virus scanner and this one restored my shortcuts.


My Computer

Brink

Staff member
mvp
Your welcome Jilka007, and welcome to Vista Forums. :party:

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master 3
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

ulin

New Member
Hey,

Is there a way to map flip3d to alt+tab (and have alt+tab mapped to windows_button+tab or unmapped)? Searched high and low and couldn't find if this was possible at all.

Thanks


My Computer

Brink

Staff member
mvp
Hello Ulin, and welcome to Vista Forums.

Unless you have an advanced keyboard that includes software that will allow you to change the key bindings, then I do not believe so.

Sorry, :(
Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master 3
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

ulin

New Member
Hey Brink, thanks. Too bad, I find flip3d much more intuitive and faster to pin-point exactly which window I want to bring up front then alt tab. However alt tab is sort of built into the hardware of my brain's reflex its a bit awquard to use the windows button :/


My Computer

monster528

New Member
thank you very much


My Computer

System One

  • Manufacturer/Model
    Acer
    CPU
    Intel Pentium Duel @ 2.00Ghz
    Memory
    2Gb
    Graphics Card(s)
    Radeon X1650
    Monitor(s) Displays
    22 inch
    Screen Resolution
    1280x1024
    Hard Drives
    Acer (C:) 228GB
    Data(D:) 227GB
    Internet Speed
    900kbs

Brink

Staff member
mvp
Your welcome Monster.


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master 3
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Brink

Staff member
mvp
You're welcome Elvisd22. :)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master 3
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

laubo

New Member
Hi Shawn,

Flip3D is used for Windows Aero. I have Aero disabled and use the basic scheme. I also, accidentaly, deleted my Quick Launch and I am looking for my 'Switch between Window' icon. This is not the same as Flip3D, which doesn't work for me. I need 'Flip2D'... Can you help me?

Thanks,
LAUBO,


My Computer

Brink

Staff member
mvp
Hello Laubo,

When Aero is turned off or disabled, this "Switch Between Windows' (Flip3D) shortcut will then act as Flip2D instead like using Alt+Tab or Ctrl+Alt+Tab. It is the default shortcut. :)

Hope this helps,
Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    2 x Samsung Odyssey G7 27"
    Screen Resolution
    2560x1440
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master 3
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD
Top
