Solved hard disk not displayed in disk management

#1
my hard drives are working properly but they are not displayed in the disk management.
so what can i do for it?
and my computer icon on the destop was deleted by mistake so from where i can get back my computer icon also i deleted the icon from the recycle bin..:cry::cry:


My Computer

System One

  • Manufacturer/Model
    HCL
    CPU
    Intel(R) Pentium(R) Dual CPU T2330 @ 1.60GHz
    Memory
    2GB RAM
    Screen Resolution
    1280 x 800
    Hard Drives
    160 GB sata
    Keyboard
    BIOS=101/102 key Keyboard=AT-MF2 : 8

Lorien

Account Suspended
#2
Hi chinu89,

As far as the icons go, the following tutorial covers the procedure to restore both the icons you mentioned: http://www.vistax64.com/tutorials/83815-desktop-icons.html.

Do your drives show up in Windows Explorer?

Please attach a screenshot of Disk Management so we can see what it looks like as things currently exist. It will be easier than asking a dozen questions about what is or isn't there. We can then proceed from there.

Also, please update and run a full AV scan with your security software. Also, download, install, update, and run a full scan with Malwarebytes: http://www.malwarebytes.org/. This type of problem can be caused by malware - so let's rule that out.

I hope this helps.

Thanks and good luck!

Last edited:

My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01
#3

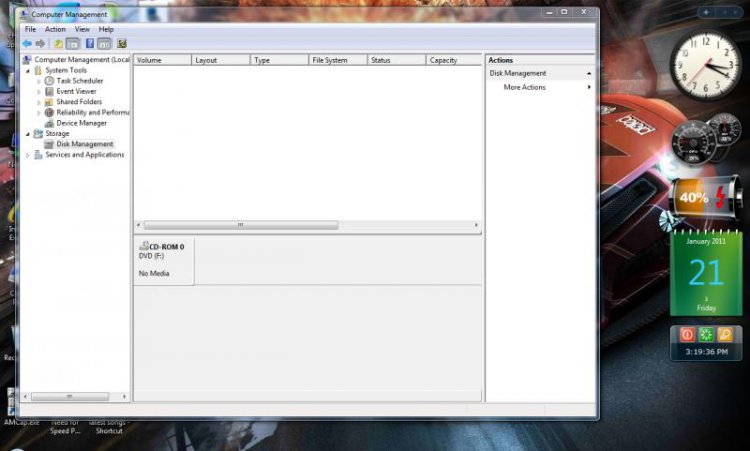

yes my drives shows in Windows Explorer but not shown in the diskmanagement the screenshot of the diskmanagement is given below
i also download the malwarebyte and scan my system it detects 12 malware and removes all malware but problem not solves still hard drive are not displayed in the disk management.


My Computer

System One

  • Manufacturer/Model
    HCL
    CPU
    Intel(R) Pentium(R) Dual CPU T2330 @ 1.60GHz
    Memory
    2GB RAM
    Screen Resolution
    1280 x 800
    Hard Drives
    160 GB sata
    Keyboard
    BIOS=101/102 key Keyboard=AT-MF2 : 8

Lorien

Account Suspended
#4
Hi chunu89,

Download the free version of Easeus Partition Manager: EASEUS FREE Partition Manager Software. Free Partition Magic alternative for Windows 2000/XP/Vista/7 and Windows Server 2000/2003/2008. Hard Drive partition software. and run it and see if it can see the drives. If so, there may be some issue with the Disk Management program. If not, then I'll be somewhat confused as it would suggest drive management software in general can't see the drives and I'm not sure what would cause that - but in either case, the following processes and procedures are recommended:

Go to Start / All Programs / Accessories / Command prompt and right click on command prompt and click run as Administrator.

Type sfc /scannow and enter and let it run. It will scan and try to fix some of your system files. Hopefully it will complete with no corruption it could not repair (if there is such corruption post back here or try to analyze it to find the problem file(s) using
http://support.microsoft.com/kb/928228. If it finds errors, run it three more times and use the report from the last run. Try to attach the report (you may need to copy it to your desktop before it will permit you to attach it) here so we can see if they can be repaired with good copies from the installation disk or other system files (unless there are too many).

While in Command Prompt, type chkdsk /f /r and enter and let it run. It will want to schedule itself to run at the next restart. Answer yes and then reboot to run the program. It will scan and try to fix any corruption or bad sectors on your hard drive and mostly remove that as a potential cause.

If that doesn't work, then please post any error messages from the Event Viewer concerning disk management (Start / Control Panel / Administrative Tools / Event Viewer). Here's how to use Event Viewer: http://www.petri.co.il/vista-event-viewer.htm. Look in the System section.

If that doesn't work, try a clean boot http://support.microsoft.com/kb/929135. If the problem goes away then it's just a matter of tracking down the culprit causing the problem. Follow the procedures in the article. Once found, delete, remove, deactivate, or uninstall it. Once done be sure to reset Vista back to normal status as explained in the procedures. If the problem occurs in clean mode then just restore the system to normal status and reboot - this solution is not going to work.

Boot into Safe mode and see if the problem in Disk Management occurs there. Either result helps us narrow down the search for the cause.

I hope this helps. If not, please tell me what happens with every step, attach the requested files or screenshots, and provide any additional details you think might help.

Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01
#5

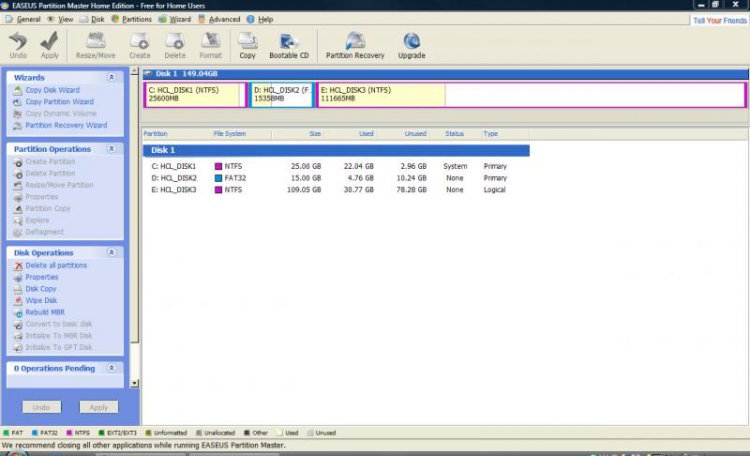

yes i can see drives in EASEUS FREE Partition manager software and here is the screenshot


My Computer

System One

  • Manufacturer/Model
    HCL
    CPU
    Intel(R) Pentium(R) Dual CPU T2330 @ 1.60GHz
    Memory
    2GB RAM
    Screen Resolution
    1280 x 800
    Hard Drives
    160 GB sata
    Keyboard
    BIOS=101/102 key Keyboard=AT-MF2 : 8
#6
I've just had the same thing happen to me. It had me tearing my hair out for four days. The system disk was missing in Disk Management (and in Device Manager) and all sorts of weird redirections occured in Firefox. However, disk tools such as Acronis Disk Director could see the missing drive and its three partitions.

Turned out it was a TDSS rootkit trojan: a very nasty thing that takes over control of the atapi system and your browsers. After many failed attempts to remove it I found a utility called TDSSKIller here:

How to remove malware belonging to the family Rootkit.Win32.TDSS (aka Tidserv, TDSServ, Alureon)?

I ran it and, 30 seconds and a reboot later, it was gone (I then spent a day checking all my drives with various anti-virus products and making new backups!)

Try it...good luck!


My Computer

System One

  • Manufacturer/Model
    Home build
    CPU
    Intel E5700
    Motherboard
    Foxconn G41MXE
    Memory
    2GB DDR3 single bank
    Graphics Card(s)
    Intel integrated
    Sound Card
    Intel integrated
    Monitor(s) Displays
    LG W2241S 22"
    Screen Resolution
    1680 x 1050
    Hard Drives
    SATA Hitachi 320GB
    SATA Maxtor 320GB
    PSU
    Quiet Tech
    Case
    Antec
    Cooling
    Standard
    Mouse
    MS wired
    Keyboard
    MS wired
    Internet Speed
    2.5 Mbits/sec
#7
thanks gustoby your solution works now my hard disks shown in disk management thanks a lot!!!!!!!!!!:):)


My Computer

System One

  • Manufacturer/Model
    HCL
    CPU
    Intel(R) Pentium(R) Dual CPU T2330 @ 1.60GHz
    Memory
    2GB RAM
    Screen Resolution
    1280 x 800
    Hard Drives
    160 GB sata
    Keyboard
    BIOS=101/102 key Keyboard=AT-MF2 : 8
#8
I've just had the same thing happen to me. It had me tearing my hair out for four days. The system disk was missing in Disk Management (and in Device Manager) and all sorts of weird redirections occured in Firefox. However, disk tools such as Acronis Disk Director could see the missing drive and its three partitions.

Turned out it was a TDSS rootkit trojan: a very nasty thing that takes over control of the atapi system and your browsers. After many failed attempts to remove it I found a utility called TDSSKIller here:

How to remove malware belonging to the family Rootkit.Win32.TDSS (aka Tidserv, TDSServ, Alureon)?

I ran it and, 30 seconds and a reboot later, it was gone (I then spent a day checking all my drives with various anti-virus products and making new backups!)

Try it...good luck!
Wow! thank you so much! Been messing with this for about 4 days now. I wanted to dual boot windows7 and solaris and needed to set some partition free. But Disk management, did not show C drive. Now my problem is solved. Thanks a lot!
