How can I enable the 'advanced settings' in Realtek HD audio manager.

libredy

New Member
I really need help enabling the 'advanced settings' for my audio manager.

I've aready reinstalled the drivers 'alot' of time using different versions of it.

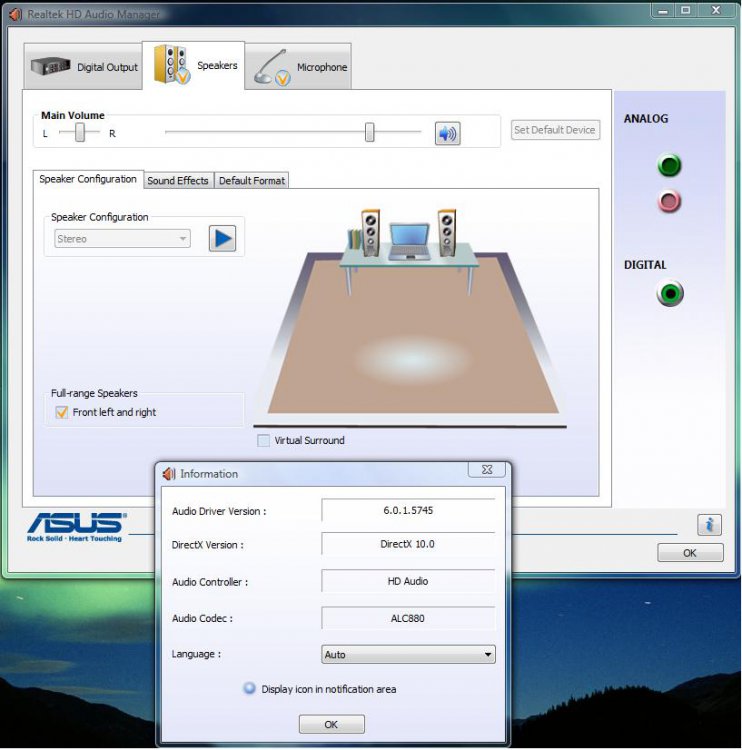

See the attached screen shot of my HD audio manager.


The speaker and mic works fine, the problem I have is

when I plug in the headphone jack into my s/pdif slot

both the speaker and headphone plays sounds :confused:

I heard I can change this in the advanced settings...

which I can't acess...:cry:


Thanks in advance.



Attachments

  • 1.jpg
    61.1 KB · Views: 10,933

My Computer

AllMac

Élite
Member
Assuming you have on-board sound, it probably depends on the motherboard and what it can handle for sound and audio. I have the Device Advanced Settings option in the upper right corner.

Check this pic.

.

Last edited:

My Computer

System One

  • Manufacturer/Model
    Self Made System #1 2004
    CPU
    Intel Pentium 4 650, 3566 MHz
    Motherboard
    Asus P5LD2 Deluxe
    Memory
    2048 MB (DDR2-533 DDR2 SDRAM)
    Graphics Card(s)
    NVIDIA GeForce 8800 GTS (640 MB)
    Sound Card
    Realtek ALC882/D/M @ Intel 82801GB ICH7 - High
    Monitor(s) Displays
    LG L204WT (Digital) [20" LCD]
    Screen Resolution
    1680 x 1050
    Hard Drives
    [XP (160 GB, 7200 RPM, SATA-II) 8M]
    [Vista (320 GB, 7200 RPM, SATA-II) 16M]
    [Storage (500 GB, 7200 RPM, SATA-II) 32M]
    PSU
    E-Power 570W Power Supply
    Case
    Antec SLK1650 Beige Mid Tower ATX Case
    Cooling
    Zalman CNPS9500 LED CPU Heatsink
    Mouse
    Microsoft HID-compliant mouse
    Keyboard
    Logitech Standard 101/102-Key or Microsoft Natural
    Internet Speed
    Max 700 kbps Down / Max 90 kbps Up
    Other Info
    Coming Up --> Self Made System #2 MID2009

libredy

New Member
Well, I think my motherboard should be able to handle it. It worked fine on windows XP and even on windows vista, but ever since I installed sp1 it stopped working :(


My Computer

Airbot

---------------
Well, like Allmac suggested, click on the Device advanced settings in top right corner and have it set to this.

View attachment 8298




Seperate all input jacks as independant input devices.

Last edited:

My Computer

System One

  • Manufacturer/Model
    Airbot 2.0
    CPU
    Core i7 920 (D0) @ 4Ghz, 26c idle- 65c full load on air
    Motherboard
    Asus P6X58D Premium -Sata 6Gb/s - USB 3.0
    Memory
    12GB Corsair Dominator -CMD12GX3M6A1600C8
    Graphics Card(s)
    EVGA Nvidia GTX 480 -Fermi
    Sound Card
    ASUS Xonar D2X
    Monitor(s) Displays
    LG 24" Flatron W2453V-PF Full HD 1080p 2ms response time
    Screen Resolution
    [email protected]
    Hard Drives
    1 OCZ Vertex2 180GB SSD
    1 TB Samsung Spinpoint F1 7200RPM 32MB cache
    2 500GB WD Caviar Blacks 7200RPM 32MB cache (WD5001AALS)

    Pioneer DVD Burner DVR-S18M
    PSU
    Corsair HX1000W
    Case
    Cooler Master HAF 932
    Cooling
    Case Fans -3 230mm, 1 140mm/CPU - Tuniq Tower 120 Extreme
    Mouse
    Logitech Wireless MK700
    Keyboard
    Logitech Wireless MK700
    Internet Speed
    100 MBPS DL 30.17Mbps UL 0.98Mbps
    Other Info
    Windows 7
    Processor-7.7 RAM- 7.9 Graphics-7.9 Gaming Graphics- 7.9 HDD- 7.8

    W.E.I final score= 7.7

    Windows Vista=5.9

Airbot

---------------
This is the version I have. Thats' weird, mines says Realtek on the bottom left and your says ASUS:confused: lol


View attachment 8302

Last edited:

My Computer

System One

  • Manufacturer/Model
    Airbot 2.0
    CPU
    Core i7 920 (D0) @ 4Ghz, 26c idle- 65c full load on air
    Motherboard
    Asus P6X58D Premium -Sata 6Gb/s - USB 3.0
    Memory
    12GB Corsair Dominator -CMD12GX3M6A1600C8
    Graphics Card(s)
    EVGA Nvidia GTX 480 -Fermi
    Sound Card
    ASUS Xonar D2X
    Monitor(s) Displays
    LG 24" Flatron W2453V-PF Full HD 1080p 2ms response time
    Screen Resolution
    [email protected]
    Hard Drives
    1 OCZ Vertex2 180GB SSD
    1 TB Samsung Spinpoint F1 7200RPM 32MB cache
    2 500GB WD Caviar Blacks 7200RPM 32MB cache (WD5001AALS)

    Pioneer DVD Burner DVR-S18M
    PSU
    Corsair HX1000W
    Case
    Cooler Master HAF 932
    Cooling
    Case Fans -3 230mm, 1 140mm/CPU - Tuniq Tower 120 Extreme
    Mouse
    Logitech Wireless MK700
    Keyboard
    Logitech Wireless MK700
    Internet Speed
    100 MBPS DL 30.17Mbps UL 0.98Mbps
    Other Info
    Windows 7
    Processor-7.7 RAM- 7.9 Graphics-7.9 Gaming Graphics- 7.9 HDD- 7.8

    W.E.I final score= 7.7

    Windows Vista=5.9

Killacore

Guru
Member
Maybe you could try un-installing the driver, and getting the driver from the motherboard manufacturer's website instead of directly through realtek.


My Computer

System One

  • Manufacturer/Model
    Custom Built
    CPU
    Intel Core 2 Quad Q9550 @ 3.6Ghz
    Motherboard
    EVGA 780i FTW SLI
    Memory
    OCZ Platnium 8GB DDR2-1066 (5-4-4-18)
    Graphics Card(s)
    2x eVGA 9800GX2 1GB DDR3
    Sound Card
    Creative Fatal1ty X-Fi Titanium (PCI-E) & Sony MDR-V700DJ
    Monitor(s) Displays
    24" SOYO LCD
    Screen Resolution
    1920x1200
    Hard Drives
    2x 150GB Western Digital VelciRaptors 10K RPM RAID 0
    2x 320GB Seagate Barracuda 7.2K RPM RAID 0
    PSU
    ABS 900WATT Modular
    Case
    Antec P180B Gunmetal Sound Dampning
    Cooling
    Zalman 9700CNPS 110MM Fan, 4x120MM Case Fans
    Mouse
    Logitech G5 Gaming Mouse (USB)
    Keyboard
    Saitek Cyborg Illuminted Keyboard (USB)
    Internet Speed
    15MB Down / 5MB Up (Cable)

libredy

New Member
I tried the manufacturer's website aready.

It was updated may 7the 2006, so I get a rthdcpl.exe compatability error with Vista

and no sounds :(


My Computer

pooch

Old Dog
Vista Guru
Hi Libredy,

Go to control panel, under Programs click on uninstall a program and uninstall the Realtek software after a restart Vista will automatically install the sound drivers again without the software.

Now when you right click on the speaker symbol in the notification area and left click on Playback devices This will open a window titled Sound by clicking on the Speaker and Headphone symbols and then the tab Levels you will be able to seperately adjust the sound levels

You should also be able to do this by right clicking on the speaker symbol in the notification area and left clicking on Open Volume Mixer

I hope this helps

Pooch


My Computer

System One

  • Manufacturer/Model
    Self build
    CPU
    Phenom II x4 Black Edition 940-Arctic-Cooling Freezer Xtreme
    Motherboard
    Asus M3A32-MVP Deluxe
    Memory
    8 gig Samsung PC800 RAM
    Graphics Card(s)
    NVidia 9600gt
    Sound Card
    AD1988b
    Monitor(s) Displays
    22" TFT-MONITOR WIDESCREEN mit VGA/DVI 17" Video7 TFT
    Screen Resolution
    1680 : 1050 1280 : 1024
    Hard Drives
    Drive #1 - SAMSUNG HD252HJ (250 GB)
    Drive #2 - Hitachi HDT721010SLA360 (1000 GB)
    Drive #3 - SAMSUNG HD250HJ (250 GB)
    Drive #4 - SAMSUNG HD103UJ (1000 GB) External eSATA
    PSU
    Thermaltake Toughpower Cable Management 750W
    Case
    Enermax Chakra
    Cooling
    2x 120mm Front and Back 1x 250mm Side
    Mouse
    Easy Line Laser Mouse
    Keyboard
    Standard
    Internet Speed
    16000
    Other Info
    I have also used Fedora, Suse, Ubuntu Linux
    And all other Windows from 95 to date except ME

stormy13

Member
Vista Guru
Try the AC'97 driver,

Realtek

instead of the HD one. Reason for saying that is you have the ALC880 and according to the ReadMe for the HD driver the ALC880 is only supported by that driver under XP,

Driver Package R2.09
Realtek HD Audio Driver support all of Realtek HD Audio Codec in Vista/WinXP/Win2000/Win2003 .
1. Vista WHQL Supporting: ALC882, ALC883, ALC885, ALC888, ALC889, ALC861VD, ALC660, ALC662, ALC663,
ALC260, ALC262,ALC267, ALC268, ALC269, ALC272, ALC273, ALC887

2. Windows 2000/XP WHQL Supporting: ALC880, ALC882, ALC883, ALC885, ALC888, ALC889, ALC861VC,
ALC861VD, ALC660, ALC662, ALC663, ALC260, ALC262, ALC267,ALC268, ALC269, ALC272, ALC273, ALC887
That is from the previous driver set (R2.09) and not the latest, but I really don't see them changing the support from one driver to the next.


My Computer

System One

  • Manufacturer/Model
    Me
    CPU
    Athlon x2 7750 BE
    Motherboard
    Asus M4A78 Pro
    Memory
    2x2gb Kingston
    Graphics Card(s)
    Sapphire HD 4830
    Sound Card
    X-Fi Xtreme Music
    Monitor(s) Displays
    Acer P221w and Acer 1916w
    Screen Resolution
    1680x1050 and 1440x900
    Hard Drives
    2x80 GB Seagate 7200.10 in RAID0, 500 GB Seagate 7200.12
    PSU
    Antec Earthwatts 500W
    Case
    Antec Sonata III
    Cooling
    AC Freezer 64 Pro and a couple of 120 mm case fans
    Mouse
    Logitech G5 v2
    Keyboard
    Logitech Wave
    Internet Speed
    10000/1000

libredy

New Member
Thanks for the reply.

but non of them works ...

Vista insn't able to install the audio drivers by iteself and the AC'97 driver

doens't install at all. Says something like not the right device or something . >_<;


My Computer

pooch

Old Dog
Vista Guru
When Vista restarted after the uninstall and it didnt load the drivers did you get any messages?

Does Vista notice that the hardware is there? Does it even try to install the drivers?

I am surprised that the drivers install with the software but that Vista will not automatically install the drivers on finding the driverless Hardware

Try with drivers uninstalled; Control Panel, Classic View, Add Hardware, follow the wizard, use the option to search for and install hardware automatically.

If this fails then the only answer left, is that although you can install the driver/software for Vista. That for what ever reason, (not supported/Hardware fault) the drivers do not and will not work properly. You will then just have to make the best of what you have.


My Computer

System One

  • Manufacturer/Model
    Self build
    CPU
    Phenom II x4 Black Edition 940-Arctic-Cooling Freezer Xtreme
    Motherboard
    Asus M3A32-MVP Deluxe
    Memory
    8 gig Samsung PC800 RAM
    Graphics Card(s)
    NVidia 9600gt
    Sound Card
    AD1988b
    Monitor(s) Displays
    22" TFT-MONITOR WIDESCREEN mit VGA/DVI 17" Video7 TFT
    Screen Resolution
    1680 : 1050 1280 : 1024
    Hard Drives
    Drive #1 - SAMSUNG HD252HJ (250 GB)
    Drive #2 - Hitachi HDT721010SLA360 (1000 GB)
    Drive #3 - SAMSUNG HD250HJ (250 GB)
    Drive #4 - SAMSUNG HD103UJ (1000 GB) External eSATA
    PSU
    Thermaltake Toughpower Cable Management 750W
    Case
    Enermax Chakra
    Cooling
    2x 120mm Front and Back 1x 250mm Side
    Mouse
    Easy Line Laser Mouse
    Keyboard
    Standard
    Internet Speed
    16000
    Other Info
    I have also used Fedora, Suse, Ubuntu Linux
    And all other Windows from 95 to date except ME

libredy

New Member
When vista tries to install the driver I get a 'Devicedriver software was not successfully installed' message.

In device manager I yellow ! mark show on the 'High Definition Audio Device' and a 'This deivce cannot start(Code 10) error message in properties


My Computer

stormy13

Member
Vista Guru

My Computer

System One

  • Manufacturer/Model
    Me
    CPU
    Athlon x2 7750 BE
    Motherboard
    Asus M4A78 Pro
    Memory
    2x2gb Kingston
    Graphics Card(s)
    Sapphire HD 4830
    Sound Card
    X-Fi Xtreme Music
    Monitor(s) Displays
    Acer P221w and Acer 1916w
    Screen Resolution
    1680x1050 and 1440x900
    Hard Drives
    2x80 GB Seagate 7200.10 in RAID0, 500 GB Seagate 7200.12
    PSU
    Antec Earthwatts 500W
    Case
    Antec Sonata III
    Cooling
    AC Freezer 64 Pro and a couple of 120 mm case fans
    Mouse
    Logitech G5 v2
    Keyboard
    Logitech Wave
    Internet Speed
    10000/1000

pooch

Old Dog
Vista Guru
When vista tries to install the driver I get a 'Devicedriver software was not successfully installed' message.

In device manager I yellow ! mark show on the 'High Definition Audio Device' and a 'This deivce cannot start(Code 10) error message in properties

Yet the drivers with the software install ok, very strange!!
I think that you will end up going back to how it was and making the best of a bad situation. :(

With a bit of luck stormy's idea will work

Pooch


My Computer

System One

  • Manufacturer/Model
    Self build
    CPU
    Phenom II x4 Black Edition 940-Arctic-Cooling Freezer Xtreme
    Motherboard
    Asus M3A32-MVP Deluxe
    Memory
    8 gig Samsung PC800 RAM
    Graphics Card(s)
    NVidia 9600gt
    Sound Card
    AD1988b
    Monitor(s) Displays
    22" TFT-MONITOR WIDESCREEN mit VGA/DVI 17" Video7 TFT
    Screen Resolution
    1680 : 1050 1280 : 1024
    Hard Drives
    Drive #1 - SAMSUNG HD252HJ (250 GB)
    Drive #2 - Hitachi HDT721010SLA360 (1000 GB)
    Drive #3 - SAMSUNG HD250HJ (250 GB)
    Drive #4 - SAMSUNG HD103UJ (1000 GB) External eSATA
    PSU
    Thermaltake Toughpower Cable Management 750W
    Case
    Enermax Chakra
    Cooling
    2x 120mm Front and Back 1x 250mm Side
    Mouse
    Easy Line Laser Mouse
    Keyboard
    Standard
    Internet Speed
    16000
    Other Info
    I have also used Fedora, Suse, Ubuntu Linux
    And all other Windows from 95 to date except ME

stormy13

Member
Vista Guru
Not sure if it is included in Vista or not (and if not, if even offered through WU), but I remember seeing lots of people with similar problems with updated Realtek drivers not working or installing properly when Microsoft released the UAA HD driver.

Hopefully that will get libredy back up and running properly again.


My Computer

System One

  • Manufacturer/Model
    Me
    CPU
    Athlon x2 7750 BE
    Motherboard
    Asus M4A78 Pro
    Memory
    2x2gb Kingston
    Graphics Card(s)
    Sapphire HD 4830
    Sound Card
    X-Fi Xtreme Music
    Monitor(s) Displays
    Acer P221w and Acer 1916w
    Screen Resolution
    1680x1050 and 1440x900
    Hard Drives
    2x80 GB Seagate 7200.10 in RAID0, 500 GB Seagate 7200.12
    PSU
    Antec Earthwatts 500W
    Case
    Antec Sonata III
    Cooling
    AC Freezer 64 Pro and a couple of 120 mm case fans
    Mouse
    Logitech G5 v2
    Keyboard
    Logitech Wave
    Internet Speed
    10000/1000
Top
