How to Change Maximum Download Sessions in Internet Explorer 7
Synopsis
This will show you how to change the number of simultaneous downloads from a web server to what you set them to for only the current or all user acounts. 10 is usually a good maximum. 2 is the default maximum.
How to Change Maximum Download Sessions in Internet Explorer 7

information   Information
This will show you how to change the number of simultaneous downloads from a web server to what you set them to for only the current or all user acounts. 10 is usually a good maximum. 2 is the default maximum.
Note   Note

  • The current HTTP specification limits the number of simultaneous file downloads to two downloads, plus one on stand by. As connection speeds increase, the number of simultaneous downloads to a single web server may not be enough for your needs.
  • If you visit a web page with lots of images (and supporting files like CSS styles and Javascript), then you can have a slower browsing experience. On average, your browser would have to make more than 40 requests to the server before it can assemble the complete page. Requesting all the files you need with the default 2 at a time is going to be slower than requesting say 10 files at a time.
Tip   Tip
This will work with any other web browser you are using as well. For example, FireFox.





OPTION ONE
For the Current User Account Only

Using a REG File Download:
1. Click on the Download button below to download the file below.​
Current User 10Max.reg
download

2. Click on Save and save the .reg file to the desktop.​
3. Right click on the downloaded .reg and click on Merge.​
4. Click on Run, Continue, Yes, and OK if prompted.​
5. Log off and log on, or restart the computer to apply the changes.​
6. When done, you can delete the downloaded .reg if you like.​
Manually in Registry Editor:
1. Open the Start Menu.​
2. In the white line (Start Search) area, type regedit and press Enter.​
3. Click on Continue in the UAC prompt.​
4. In regedit, go to: (See screenshot below step 5)​
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings

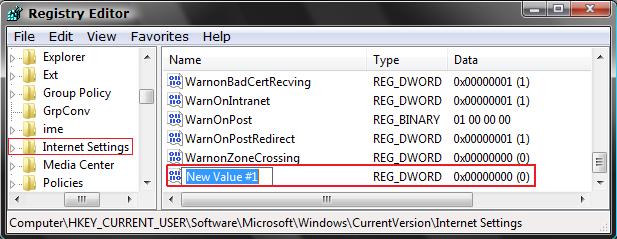

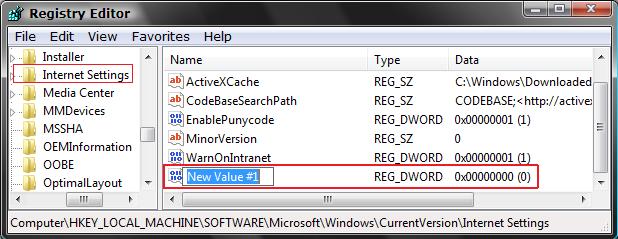

5. In right pane, right click on a empty area and click on New and DWORD (32-bit) Value.​

6. Type MaxConnectionsPer1_0Server and press Enter.​

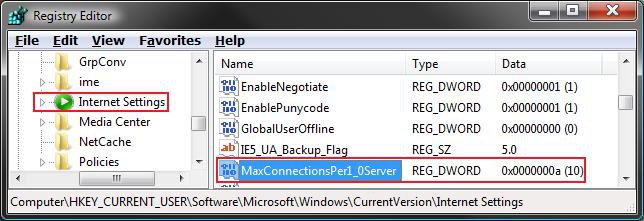

7. In right pane, right click MaxConnectionsPer1_0Server and click on Modify. (See screenshot below)​

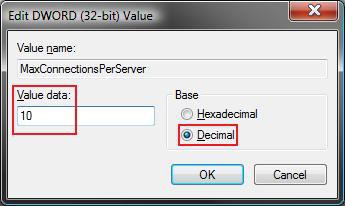

8. Dot Decimal, then type 10 and click on OK. (See screenshot below)​
NOTE: The default value is 2, but you can change it to your needs.

9. Repeat steps 5 to 8 above, but use MaxConnectionsPerServer instead now.​

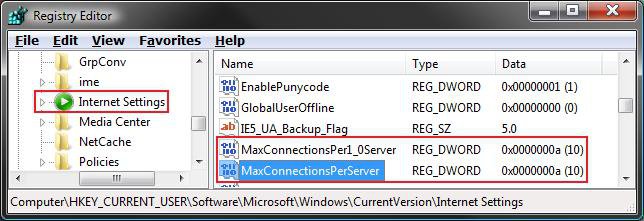

10. When done you should see this below boxed in red.​
11. Close regedit.​
12. Log off and log on, or restart the computer to apply the changes.​






OPTION TWO
OPTION TWO:
For All User Accounts

Using a REG File Download:
1. Click on the Download button below to download the file below.​
All Users 10Max.reg
download


Attachments

Last edited by a moderator:

My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

z3r010

Staff member
Thanks Shawn, this one was well needed.


My Computers

System One System Two

  • Operating System
    Windows 10
    Manufacturer/Model
    me
    CPU
    Intel Core i7 5960X Extreme Unlocked
    Motherboard
    Asus RAMPAGE V EXTREME
    Memory
    32GB (8x4GB) Corsair DDR4 Vengeance LPX Black PC3-24000 3000
    Graphics Card(s)
    2x 4GB ASUS GTX 980 STRIX CUII
    Sound Card
    Creative
    Monitor(s) Displays
    3 x27" Dell U2714H & 3 x 25" U2515H Dell
    Screen Resolution
    6 @ 2560x1440
    Hard Drives
    3x 1TB Samsung Evo 840's
    PSU
    1500W ThermalTake Toughpower
    Case
    ThermalTake Level 10 GT
    Cooling
    Enermax Liqtech 240
    Mouse
    Logitech Performance MX
    Keyboard
    Surface Ergonomic
    Internet Speed
    350 Mb/s
    Other Info
    WinTV NovaTD
    HP CP1515n Color Laser
    Sony BD-5300S-0B Blu-ray Writer
    Microsoft LifeCam Cinema
    APC 750i Smart UPS
  • Operating System
    windows 10
    Manufacturer/Model
    Surface Pro 3
    CPU
    1.9GHz Intel Core i5-4300U (dual-core, 3MB cache, up to 2.9GHz with Turbo Boost)
    Memory
    4GB
    Graphics card(s)
    Intel HD Graphics 4400
    Monitor(s) Displays
    12" Multi Touch
    Screen Resolution
    2160 x 144
    Hard Drives
    128GB
    Mouse
    Logitech
    Keyboard
    yes
    Internet Speed
    350 Mb/s

Brink

Staff member
mvp
Your welcome.

I found plenty of references for the Current user out there, but nothing for All users. I thought people would like to have a choice.


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Brink

Staff member
mvp
niGht kiD,

I have not tried it with FireFox, but I believe it should. You can test and see by trying to download more than 2 items from the exact same website at the same time.

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Brink

Staff member
mvp
Thank you niGht kiD for confirming that it works with FireFox as well.

The tutorial as been updated for this.

Shawn :geek:


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

hdbg62

Member
Just curious, what does (16) after the value of 10 stand for?


My Computer

System One

  • Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 DuoE4500 2.20G
    Memory
    3.00G DDR2, 667MHz
    Graphics Card(s)
    Intel G33/G31 Express 320
    Sound Card
    Realtec ALC888 (7.1 Channel audio)
    Monitor(s) Displays
    Dell 22" E228WFP
    Screen Resolution
    1680x1050
    Hard Drives
    Samsung HD501LJ ATA 500 G
    PBDS DVD+RW DH-16W1S ATA

    MAXTOR 320 G USB
    Internet Speed
    5.28 Mb/s Down, 0.64 Mb/s Up, ATT Dry Loop DSL

Brink

Staff member
mvp
Hi hdbg62,

The 10 is the hexadecimal number and 16 would be the decimal number for the same number if you were to enter either one in step 8 and dot the correct hexadecimal or decimal option for it.

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

hdbg62

Member
Thanks for the information; any relation to 1.6 kilometers to the mile (just kidding)?


My Computer

System One

  • Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 DuoE4500 2.20G
    Memory
    3.00G DDR2, 667MHz
    Graphics Card(s)
    Intel G33/G31 Express 320
    Sound Card
    Realtec ALC888 (7.1 Channel audio)
    Monitor(s) Displays
    Dell 22" E228WFP
    Screen Resolution
    1680x1050
    Hard Drives
    Samsung HD501LJ ATA 500 G
    PBDS DVD+RW DH-16W1S ATA

    MAXTOR 320 G USB
    Internet Speed
    5.28 Mb/s Down, 0.64 Mb/s Up, ATT Dry Loop DSL

Brink

Staff member
mvp
Thanks for the information; any relation to 1.6 kilometers to the mile (just kidding)?
LOL, it would not surprise me if it was. ;)


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

CarolinaFaithful

New Member
I noticed ya'll said that it work with Firefox. Does this accomplish the same thing as altering the MaxConnectionsPerServer in about:config? In other words, should I apply this to my registry if I've already altered them in Firefox?


My Computer

System One

  • Manufacturer/Model
    Custom Build
    CPU
    Intel Core Duo E6600 (Conroe)
    Motherboard
    Gigabyte P35-DS3R (Rev. 1.0)
    Memory
    Corsair 2x2048-6400C4DHX
    Graphics Card(s)
    NVIDIA GeForce FX 5500
    Sound Card
    Creative Sound Blaster Audigy SE
    Monitor(s) Displays
    Samsung SyncMaster 720n
    Screen Resolution
    1280x1024
    Hard Drives
    Seagate Barracuda 7200.10 500GB ST3500630A
    PSU
    Ultra LS 500Watt
    Case
    PowerUp 5511 Silver ATX Mid-Tower TC3J-4032 P
    Cooling
    Cooler Master X Dream 4
    Mouse
    Logitech RX300
    Keyboard
    Logitech Internet 350
    Internet Speed
    21.46Mb/s

sidney1st

Member
Vista Guru
Hi Carolina,
It really does not matter.
With regards to the max number i think that the Hexa value should be 0a (10) instead of 10 (16)
Wait for Shawn to confirm.


My Computer

Brink

Staff member
mvp
Doh! :o

Thank you Sid for catching this. The tutorial has been updated to use the correct Decimal settings not Hex.

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

johngalt

Antidisestablishmentarianist
Vista Guru
Avant Browser is an overlay on IE, I believe - so applying this to the IE settings makes Avant use it as well.

Avant Browser::Support


My Computers

System One System Two

  • Operating System
    Windows 10 Pro X64 Insider Preview (Skip Ahead) latest build
    Manufacturer/Model
    The Beast Model V (homebrew)
    CPU
    Intel Core i7 965 EE @ 3.6 GHz
    Motherboard
    eVGA X58 Classified 3 (141-GT-E770-A1)
    Memory
    3 * Mushkin 998981 Redline Enhanced triple channel DDR3 4 GB CL7 DDR3 1600 MHz (PC3-12800)
    Graphics Card(s)
    eVGA GeForce GTX 970 SSC ACX 2.0 (04G-P4-3979-KB)
    Sound Card
    Realtek HD Audio (onboard)
    Monitor(s) Displays
    2 * Lenovo LT2323pwA Widescreeen
    Screen Resolution
    2 * 1920 x 1080
    Hard Drives
    SanDisk Ultra SDSSDHII-960G-G25 960 GB SATA III SSD (System)
    Crucial MX100 CT256MX100SSD1 256GB SATA III SSD (User Tree)
    2 * Seagate Barracuda 7200.12 ST31000528AS 1TB 7200 RPM SATA II Mech. HD
    Seagate ST1500DL001-9VT15L Barracuda 7200.12 1.5 TB S
    PSU
    Thermaltake Black Widow TX TR2 850W 80+ Bronze Semi-Mod ATX
    Case
    ThermalTake Level 10 GT (Black)
    Cooling
    Corsair H100 (CPU, dual 140 mm fans on radiator) + Air (2 *
    Mouse
    Logitech MX Master (shared)
    Keyboard
    Logitech G15 (gen 2)
    Internet Speed
    AT&T Lightspeed Gigabit duplex
  • Operating System
    Sabayon Linux (current, weekly updates, 5.1.x kernel)
    Manufacturer/Model
    Lenovo ThinkPad E545
    CPU
    AMD A6-5350M APU
    Motherboard
    Lenovo
    Memory
    8 GB
    Graphics card(s)
    Radeon HD (Embedded)
    Sound Card
    Conextant 20671 SmartAudio HD
    Monitor(s) Displays
    Lenovo 15" Matte
    Screen Resolution
    1680 * 1050
    Hard Drives
    INTEL Cherryvill 520 Series SSDSC2CW180A 180 GB SSD
    PSU
    Lenovo
    Case
    Lenovo
    Cooling
    Lenovo
    Mouse
    Logitech MX Master (shared) | Synaptics TouchPad
    Keyboard
    Lenovo
    Internet Speed
    AT&T LightSpeed Gigabit Duplex

Brink

Staff member
mvp
what about Avant Browser ?
Hi ReD_FoX,

Yes, it should work for any web browser program. It is a universal setting in Vista that is not specific to just IE7.

Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

hdbg62

Member
This newbie could use a bit of help. Used the download method on "OPTION TWO" and this is what I have now in
HKEY_LOCAL_MACHINE\Software\Microsoft\Windows\CurrentVersion\Internet Settings:

MaxConnectionsPer1_0Server REG_DWORD 0x0000000a (10)
MaxConnectionsPer1_0Server REG_DWORD 0x00000010 (16)
MaxConnectionsPerServer REG_DWORD 0x0000000a (10)
MaxConnectionsPerServer REG_DWORD 0x00000010 (16)

Is this correct or should everything be at (10)?

I've made no changes in HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersion\Internet Settings, in fact I don't even show a setting for
MaxConnectionsPer1_0Server or MaxConnectionsPerServer there


My Computer

System One

  • Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 DuoE4500 2.20G
    Memory
    3.00G DDR2, 667MHz
    Graphics Card(s)
    Intel G33/G31 Express 320
    Sound Card
    Realtec ALC888 (7.1 Channel audio)
    Monitor(s) Displays
    Dell 22" E228WFP
    Screen Resolution
    1680x1050
    Hard Drives
    Samsung HD501LJ ATA 500 G
    PBDS DVD+RW DH-16W1S ATA

    MAXTOR 320 G USB
    Internet Speed
    5.28 Mb/s Down, 0.64 Mb/s Up, ATT Dry Loop DSL

Brink

Staff member
mvp
Hi Hdbg62,

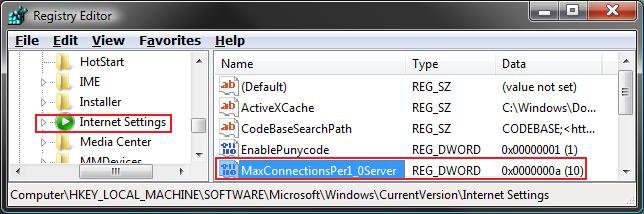

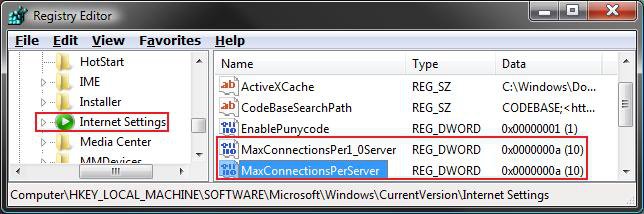

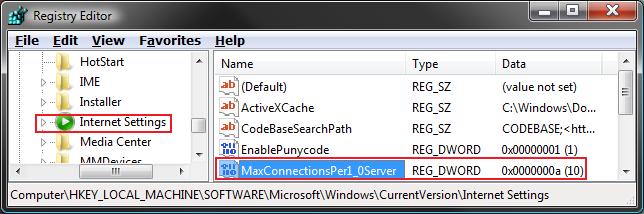

You should only have one set in the HKLM section. See the screenshot below step 12 in Option Two.

MaxConnectionsPer1_0Server REG_DWORD 0x0000000a (10)
MaxConnectionsPerServer REG_DWORD 0x0000000a (10)


You will have to create the entries in the HKCU section, but it is not necessary if you have them in the HKLM section since it affects all user account.

The number in the (10) brackets is the Decimal value for 10 in Modify, and the 0x0000000a is the Hexadecimal value for 10 in Modify.

Hope this helps,
Shawn


My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD
Top
