Lock and Switch User - Add or Remove

ByLine
How to Add or Remove Lock and Switch User from the Start Menu in Vista
Synopsis
This will show you how to add or remove Lock and Switch User from the Start Menu for all user accounts on the computer.
How to Add or Remove Lock and Switch User from the Start Menu in Vista

information   Information
This will show you how to add or remove Lock and Switch User from the Start Menu for all user accounts on the computer.
Tip   Tip
If you only wanted to add or remove Switch User, then see: How to Add or Remove Switch User from the Start Menu in Vista

EXAMPLE: Before (Add) and After (Remove) Switch User and Lock



OPTION ONE
Using a REG File Download

1. To Remove Lock and Switch User
A) Click on the Download button below to download the file below.​
Remove_Lock_Start_Menu.reg
download

B) Go to step 3.​

2. To Add Lock and Switch User
A) Click on the Download button below to download the file below.​
Add_Lock_Start_Menu.reg
download

3. Click on Save, and save the .reg file to the Desktop.​
4. Right click the downloaded .reg file and click on Merge.​
5. Click on Run, Continue (UAC), Yes, and then OK when prompted.​
6. Log off and log on, or restart the computer to apply the changes.​
7. When done, you can delete the downloaded .reg file if you like.​



OPTION TWO
Manually in Registry Editor

1. Open the Start Menu.​
2. In the white line (Start Search) area, type regedit and press Enter.​
3. Click on Continue in the UAC prompt.​

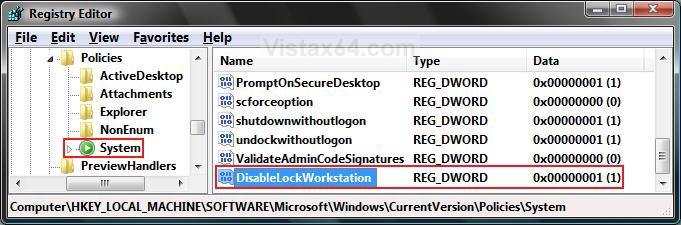

4. In regedit, go to: (See screenshot below step 5C)​
NOTE: If you do not have System, then right click on Polices and click on New and Key, then type System and press Enter.
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System
5. To Remove Lock and Switch User
A) In the right pane of the System key, right click on a empty area and click on New and click DWORD (32 bit) Value.​
B) Type DisableLockWorkstation and press Enter. (See screenshot below)​
C) Right click on DisableLockWorkstation and click on Modify. (See screenshot below)​

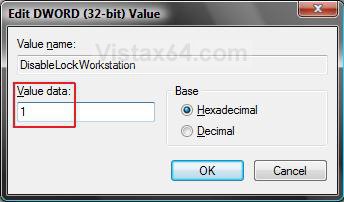

D) Type 1 and click on OK. (See screenshot below)​

6. To Add Switch User
A) Right click on DisableLockWorkstation and click Delete. (See screenshot below step 5C)​
B) Click on Yes to confirm the delete.​

7. Close regedit.​
8. Log off and log on, or restart the computer to apply the changes.​
That's it,
Shawn




Attachments

  • Remove_Lock_Start_Menu.reg
    328 bytes · Views: 6,325
  • Add_Lock_Start_Menu.reg
    954 bytes · Views: 1,301
  • LogOff.jpg
    2.1 KB · Views: 72
Last edited:

Zhizara

New Member
The screen originally showed a sort of button with my user picture with my name below it and with the word "locked" beneath. Below that "button" was another button saying "Guest" and "switch user" below the word "guest".

Now the Guest button is gone, but my "button" is still there and still says "locked". All I have to do is hit enter or click on the button and go about my business, it's just annoying that I can't get it to do what I want. I guess I'll just have to live with it.

The screen is a Vista background, and the only other thing on the page beside the two (now one) button is a accessibility wheelchair logo in the bottom left corner. When I press that it just takes me to the accessibility portion of Control Panel.

I do not have lock on my start menu, nor switch user, I'm not positive, but I really don't think they were ever there.

I'm the only person who uses my computer, so I don't have a password nor do I ever plan to. I just don't put sensitive information on the computer.

I do appreciate your trying to help and thanks for taking the time.

Sally


My Computer

System One

  • Manufacturer/Model
    Compaq Presario F572US
    CPU
    AMD Athlon 64X2 Dual Core Processor TK-53 1.70 GHz
    Motherboard
    ?
    Memory
    1024MB DDR2 memory 80GB hard drive
    Graphics Card(s)
    ?
    Sound Card
    ?
    Monitor(s) Displays
    Generic PnP Monitor on NVIDIA GeForce Go 6100
    Screen Resolution
    1280 by 800 pixels
    Mouse
    Synaptics touch pad and external generic ball-less mouse
    Keyboard
    built in laptop keyboard

Brink

Staff member
mvp
Ok Sally. I understand what you mean now. The other posts were removed to keep this on track.

You are talking about at the log on screen for when you click on Lock or Switch User in the Start Menu. This is completely different than what this tutorial is for. This tutorial only adds or removed the Lock or Switch User from only the Start Menu as in the example screenshot at the top of the tutorial.

Anytime you click on Lock from the Start Menu, Lock will always appear under you (user name) icon on the log on screen until you logon again.
