Solved Need Help: Missing Flash Drive Icons in File Open/Save Dialog box

mookiemeister

New Member
Hi,

My PC has problem displaying flash drive icons correctly in file open and file save dialog boxes.

On my Dell Inspiron, there are 4 flash drives (Compact Flash, SD, Memory Stick, and xD/SM). The 4 drives' icons display fine from Windows Explorer but all 4 drive icons are missing in File Open and File Save dialog boxes. The problem exists in every application's file open and file save that I checked so I'm thinking it's a problem with Vista and not with specific application.

I'm running Vista x64 Home Premium.

Has anyone else encounter this problem? Does anyone have a solution for fixing these missing icons?

Thanks in advance for any help.

Last edited by a moderator:

My Computer

System One

  • Name
    David Lin
    Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 Duo CPU E7400 @ 2.8GHz
    Memory
    6GB
    Graphics Card(s)
    Intel G33/G31 Express Chipset
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Samsung 25" SyncMaster T260HD
    Screen Resolution
    1920x1200
    Hard Drives
    750GB SATA
    PSU
    300W
    Case
    Dell Inspiron Case
    Cooling
    Fan - Maximum Heat Dissipation 162W
    Mouse
    Logitech LX3 Optical Mouse
    Keyboard
    Dell
    Internet Speed
    768kbps
    Occupation
    None, that's why I'm a bum
    Other Info
    Triple Boot With Windows 7 x64 and Ubuntu Linux 10.04 x64
    Country Flag
    usa
    State/Region Flag
    us texas

mookiemeister

New Member
Ok. Thanks for the tip. I'll give it a try.

Sorry if this is obvious, but where can I get the most up-to-date MS Controller driver you mentioned?


My Computer

System One

  • Name
    David Lin
    Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 Duo CPU E7400 @ 2.8GHz
    Memory
    6GB
    Graphics Card(s)
    Intel G33/G31 Express Chipset
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Samsung 25" SyncMaster T260HD
    Screen Resolution
    1920x1200
    Hard Drives
    750GB SATA
    PSU
    300W
    Case
    Dell Inspiron Case
    Cooling
    Fan - Maximum Heat Dissipation 162W
    Mouse
    Logitech LX3 Optical Mouse
    Keyboard
    Dell
    Internet Speed
    768kbps
    Occupation
    None, that's why I'm a bum
    Other Info
    Triple Boot With Windows 7 x64 and Ubuntu Linux 10.04 x64
    Country Flag
    usa
    State/Region Flag
    us texas

mookiemeister

New Member
I went to Device Manager and right click on each of the 4 flash drives and select 'Update Driver Software...' and then 'Search Automatically for Updated Driver Software'. It stated that my drivers for the 4 flash drives are all up-to-date.


My Computer

System One

  • Name
    David Lin
    Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 Duo CPU E7400 @ 2.8GHz
    Memory
    6GB
    Graphics Card(s)
    Intel G33/G31 Express Chipset
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Samsung 25" SyncMaster T260HD
    Screen Resolution
    1920x1200
    Hard Drives
    750GB SATA
    PSU
    300W
    Case
    Dell Inspiron Case
    Cooling
    Fan - Maximum Heat Dissipation 162W
    Mouse
    Logitech LX3 Optical Mouse
    Keyboard
    Dell
    Internet Speed
    768kbps
    Occupation
    None, that's why I'm a bum
    Other Info
    Triple Boot With Windows 7 x64 and Ubuntu Linux 10.04 x64
    Country Flag
    usa
    State/Region Flag
    us texas

Ashvin Busviah

Vista Guru
go on the dell website and find the model of your laptop and find the latest dated driver there.. download it and install it


My Computer

System One

  • Occupation
    Technical Support
    Country Flag
    newzealand

mookiemeister

New Member
I couldn't find a driver called MS Controller you mentioned. But I reinstalled the Card Reader driver that came with the Dell, then I went to Dell web site and updated the BIOS from 1.0.15 to 1.0.18. It seems to fix the problem. Now the icons are displayed in the file open/save dialog boxes inside applications. On the other hand, before it used to display distinct icons for each of the 4 drives, now it just display 4 generic 'Removeable Disk' icons. Not a biggie.

I just noticed there is a driver called 'Matrix Storage Manager' on the Dell web site for my system. Is this the MS Controller you mentioned before?


My Computer

System One

  • Name
    David Lin
    Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 Duo CPU E7400 @ 2.8GHz
    Memory
    6GB
    Graphics Card(s)
    Intel G33/G31 Express Chipset
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Samsung 25" SyncMaster T260HD
    Screen Resolution
    1920x1200
    Hard Drives
    750GB SATA
    PSU
    300W
    Case
    Dell Inspiron Case
    Cooling
    Fan - Maximum Heat Dissipation 162W
    Mouse
    Logitech LX3 Optical Mouse
    Keyboard
    Dell
    Internet Speed
    768kbps
    Occupation
    None, that's why I'm a bum
    Other Info
    Triple Boot With Windows 7 x64 and Ubuntu Linux 10.04 x64
    Country Flag
    usa
    State/Region Flag
    us texas

mookiemeister

New Member
I just noticed you referred to my PC as 'your laptop' in your previous post. In case it makes any difference, my PC is Dell Inspiron as I mentioned in the original post and it's a desktop PC, not a laptop.

Anyways, thanks for your helpful suggestions.


My Computer

System One

  • Name
    David Lin
    Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 Duo CPU E7400 @ 2.8GHz
    Memory
    6GB
    Graphics Card(s)
    Intel G33/G31 Express Chipset
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Samsung 25" SyncMaster T260HD
    Screen Resolution
    1920x1200
    Hard Drives
    750GB SATA
    PSU
    300W
    Case
    Dell Inspiron Case
    Cooling
    Fan - Maximum Heat Dissipation 162W
    Mouse
    Logitech LX3 Optical Mouse
    Keyboard
    Dell
    Internet Speed
    768kbps
    Occupation
    None, that's why I'm a bum
    Other Info
    Triple Boot With Windows 7 x64 and Ubuntu Linux 10.04 x64
    Country Flag
    usa
    State/Region Flag
    us texas

mookiemeister

New Member
Not really... it's a long story...

Well, it turned out that when I reinstalled the Card Reader driver, in addition to changing the 4 different flash drive icons to the same generic icon, it also displays 'Safely Remove Hardware' icon in the notification area of the task bar. So when I click on 'Safely Remove Hardware' the 4 flash drives from this icon in the notification area, it actually removed the 4 drives so I have no access to the drives anymore. After that even if I inserted a flash card (I tried SD card and Compact Flash card), no drives would be re-enabled.

So then I decided to Restore Windows to a state before I reinstalled the Card Reader driver. After that, when it rebooted my PC, the 4 flash drive icons went back to the original 4 unique drive icons and the 'Safely Remove Hardware' icon in the notification area disappears so I won't accidentally remove the drives and then couldn't access anymore.

After that I checked different applications' file open/save dialog box, and the 4 flash drive icons are all missing again. So it looks like flashing the BIOS to the latest version didn't fix the problem like I stated before. The problem was fixed because the drives icons were generic icons or something. I don't know.

Oh well. At least it seems to be back to where it was. Should I download and install the Matrix Storage Manager from Dell web site? I compared all the drivers versions listed for my system on Dell and it looks like everything is up-to-date. Everything except the Matrix Storage Manager which wasn't on my Dell Device Driver CD that came with my PC. And when I searched on the web for info on the Matrix Storage Manager, I learned that it's some support for RAID drives which I don't use.


My Computer

System One

  • Name
    David Lin
    Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 Duo CPU E7400 @ 2.8GHz
    Memory
    6GB
    Graphics Card(s)
    Intel G33/G31 Express Chipset
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Samsung 25" SyncMaster T260HD
    Screen Resolution
    1920x1200
    Hard Drives
    750GB SATA
    PSU
    300W
    Case
    Dell Inspiron Case
    Cooling
    Fan - Maximum Heat Dissipation 162W
    Mouse
    Logitech LX3 Optical Mouse
    Keyboard
    Dell
    Internet Speed
    768kbps
    Occupation
    None, that's why I'm a bum
    Other Info
    Triple Boot With Windows 7 x64 and Ubuntu Linux 10.04 x64
    Country Flag
    usa
    State/Region Flag
    us texas

mookiemeister

New Member

Attachments

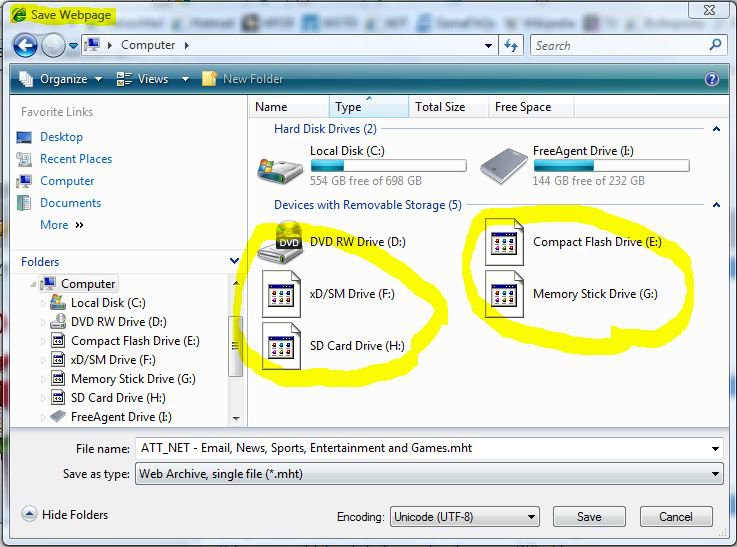

  • Missing Icons.JPG
    Missing Icons.JPG
    72.5 KB · Views: 441

My Computer

System One

  • Name
    David Lin
    Manufacturer/Model
    Dell Inspiron 530
    CPU
    Intel Core 2 Duo CPU E7400 @ 2.8GHz
    Memory
    6GB
    Graphics Card(s)
    Intel G33/G31 Express Chipset
    Sound Card
    Realtek HD Audio
    Monitor(s) Displays
    Samsung 25" SyncMaster T260HD
    Screen Resolution
    1920x1200
    Hard Drives
    750GB SATA
    PSU
    300W
    Case
    Dell Inspiron Case
    Cooling
    Fan - Maximum Heat Dissipation 162W
    Mouse
    Logitech LX3 Optical Mouse
    Keyboard
    Dell
    Internet Speed
    768kbps
    Occupation
    None, that's why I'm a bum
    Other Info
    Triple Boot With Windows 7 x64 and Ubuntu Linux 10.04 x64
    Country Flag
    usa
    State/Region Flag
    us texas

mookiemeister

New Member
Ok. I finally fix the missing flash drive icons on my system. I'll mention what I did in case anyone else has this problem. But I don't know if my fix is a hack and might break something else or not.

So what I did was the following:

1) Use regedit and search for the 4 flash drive names shown in Windows Explorer ('Compact Flash Drive', 'Memory Stick Drive', 'xD/SM Drive', 'SD Card Drive'). I found the keys corresponding to the flash drive icons in Computer\HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\explorer\AutoplayHandlers\DeviceGroups under the keys (TEAC_CF, TEAC_MS, TEAC_SD, TEAC_XDSM).

2) In the data fields, I noticed that the icon files is located in %SystemRoot%\system32\TEACico2.dll.

3) I checked the file using Windows Explorer, IE8 (32-bit), and IE8 (64-bit) and noticed that the file is missing in IE8 (32-bit). And there are some strange temp files (temp.000, temp.001, temp.002, temp.003) in IE8 (32-bit) that is not in Windows Explorer or IE8 (64-bit).

4) Then I did a full search from Windows Explorer for the 4 strange temp files that is showing up in IE8 (32-bit) and found that they are actually located in C:\Windows\SysWOW64 directory.

5) Doing a little more search on the web and from Vista x64 forums, I learned that SysWOW64 is the shadow directory for the older 32-bit applications. When you use file open/save dialog box to navigate to System32 directory, Vista 64 actually shows the SysWOW64 directory.

6) So the solution seems simple. I just copied the TEACico2.dll that has all the 4 flash drive icons from System32 to SysWOW64 directory. And the flash drive icons are all showing up in 32-bit app's file open/save dialog boxes.
