Network Posting Tips - PLEASE READ!!!

When Posting a Thread about Wireless Issues there are some information needed before we can Suggest a Solution So Please Read this with care

IPCONFIG

Along when creating a Thread about Wireless problems please Upload an Image of your IPCONFIG,

To do this Please Follow these Steps:

1. Click Start>All Programs>Accessories
a. Right Click on Command Prompt and click on Run as Administrator

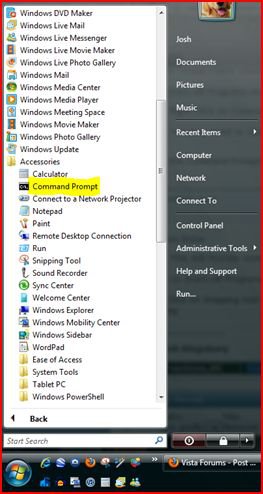

Command Prompt.JPG


b. You may need to Click Continue if a UAC Prompt appears

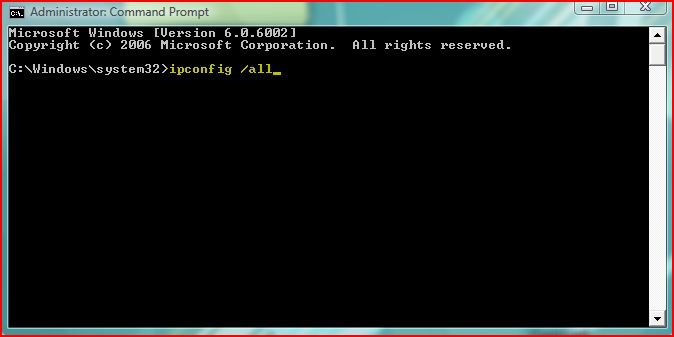

2. Once the Command Prompt windows Opens Please type in the following code

Code:
ipconfig /all
Then Press Enter

a. This Will Provide some Information please Upload a Snip of the Information when you Create the Thread -

Go to Start>All Programs>Accessories

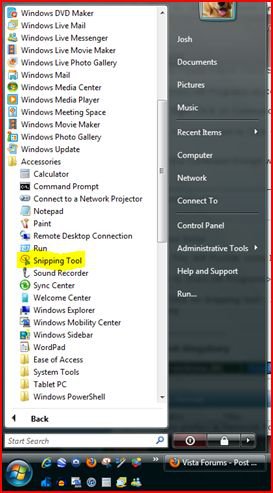

Snipping Tool.JPG

b Click on Snipping tool - After that Drag your Mouse over the Command Prompt Window and save the File as a Jpeg - Then Upload the Picture with your Thread

3. After you have done that Please Run the Attached File AS ADMINISTRATOR Before you Post your Thread

The File will Flush you DNS Cache and Restore the HOSTS File

BE WARNED ONCE THE FILE HAS FINISHED IT WILL RESTART YOUR COMPUTER AND DELETE THE FILE



The Attached Batch File Contains this Information:

Code:
@Echo on
pushd\windows\system32\drivers\etc
attrib -h -s -r hosts
echo 127.0.0.1 localhost>HOSTS
attrib +r +h +s hosts
popd
ipconfig /release
ipconfig /renew
ipconfig /flushdns
netsh winsock reset all
netsh int ip reset all
shutdown -r -t 1
del %0
View attachment FlushDNS.zip

Many Thanks,
Josh

Last edited by a moderator:

My Computer

System One

  • Manufacturer/Model
    Custom Built
    CPU
    Intel Core i5 2400 @ 3.10GHz
    Motherboard
    Foxconn H67MP-S/-V/H67MP
    Memory
    8.0GB DDR3 @ 665MHz (2GBx4)
    Graphics Card(s)
    AMD HD Radeon 6870
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    SMB1930NW ([email protected])
    Screen Resolution
    1280x800
    Hard Drives
    977GB Seagate ST31000524AS ATA Device (SATA) + 250GB WD iSCSI attached Drive
    Case
    Novatech Night
    Mouse
    Dell HID-compliant mouse
    Keyboard
    Standard PS/2 Keyboard

Lorien

Account Suspended
Very nice, Josh. I've used this several times now and it has helped in many cases - mostly having the IPCONFIG than the script, but I'll take any assistance I can get.

Thanks for putting it together, posting it, and getting it listed as a sticky.


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01

Shadowjk

Network Enthusiast
Vista Guru
Gold Member
No Problem Jesica It is Designed to help others who need it :)


My Computer

System One

  • Manufacturer/Model
    Custom Built
    CPU
    Intel Core i5 2400 @ 3.10GHz
    Motherboard
    Foxconn H67MP-S/-V/H67MP
    Memory
    8.0GB DDR3 @ 665MHz (2GBx4)
    Graphics Card(s)
    AMD HD Radeon 6870
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    SMB1930NW ([email protected])
    Screen Resolution
    1280x800
    Hard Drives
    977GB Seagate ST31000524AS ATA Device (SATA) + 250GB WD iSCSI attached Drive
    Case
    Novatech Night
    Mouse
    Dell HID-compliant mouse
    Keyboard
    Standard PS/2 Keyboard

calmat

Member
hello shadowjk

can you tell me what you mean on No.3 instruction (run the attached file as administrator)

my ISP is The Post Office
my router is a wireless ZyXEL router

calmat


My Computer

Lorien

Account Suspended
Hi calmat,

1. Right click on the attached .bat file and click save target as and then choose to save it to your desktop.

2. Once on your desktop, right click on the file and click "Run as Administrator". That will do the trick.

I hope this helps.

Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01

Lorien

Account Suspended
Hi Calmat,

Here are two pictures which may help. One is what shows when you right click on the attachment in the post - click on save target to and choose the desktop.

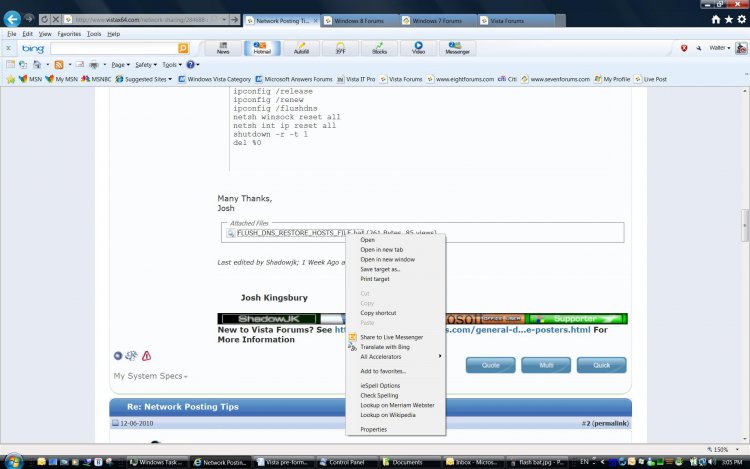

The other is what shows when you right click on the file once it has been copied to the desktop. Click on run as administrator.

I hope this helps.

Good luck!


Attachments

My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01

calmat

Member
hello lorien

i think i must have done something wrong because when i open up my accessories
i have not got COMMAND PROMPT in the list

calmat


My Computer

Lorien

Account Suspended
Hi calmat,

Go to start / search box and type cmd.exe and enter. This will bring up a program icon for that. Right click on it and click on run as administrator and you will be in Command Prompt. You can take the rest from there.

Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01

Lorien

Account Suspended
Hi calmat,

It occurred to me that maybe you want Command Prompt back in your start menu too. Here's how.

1. Go to start / search box and type cmd.exe and enter. This will bring up a program icon for that. Right click on it and click on Send To and then click on Desktop (create shortcut). This will put a shortcut to Command Prompt on your desktop.

2. Click on that new shortcut and simultaneously push CTRL and X (called CTRL-X) to cut it (unless you want to also keep it on the desktop, then use CTRL-C).

3. Click on Start / All Programs / Accessories and right click on Accessories and click Open to open the folder containing the controls. Once there, put the mouse in a blank section and hit CTRL-V to paste the shortcut to that folder. Go to Start / All Programs / Accessories and verify the program is there. If you don't like the name (it probably used cmd.exe or something like that), right click on the shortcut icon and click on rename and type Command Prompt (or whatever you want) and you're back to normal.

I hope this helps.

Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01

Vista32

Member
Thanks Shadowjk, for this tutorial, helped resolve my connection issues, web pages not loading correctly, spinning, or at all, etc.

Thanks Vista32....:)!


My Computer

System One

  • Manufacturer/Model
    Acer Aspire 5920
    CPU
    Intel Mobile Core 2 Duo T5550 @ 1.83GHz 52 °C Merom 65nm Tec
    Motherboard
    Acer, Inc. Chapala (U2E1)
    Memory
    Type DDR2 Size 4096 MBytes Channels # Dual DRAM Frequency 333.3 MHz CAS# Latency (CL) 5 clocks RAS#
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Generic PnP Monitor on Sherry 1.3.1 Driver for 945 and 965
    Screen Resolution
    Pretty good!
    Hard Drives
    Was Western Digital 250GB HDD with 3 bad sectors. 6 minutes to start page & Internet.

    Now Seagate Momentus XT 750GB SSHD. Huge difference in start up times. 30-50 seconds. Snot to bad for a SSHD.
    Case
    Mental case.
    Cooling
    Ice cubes.
    Mouse
    Mickey
    Keyboard
    Yes
    Internet Speed
    54 Mbps

Lynn8

Member
Is there any personal or sensitive info we should block out before we post it online here? I don't want to get hacked or anything.
