Solved no 2.1 option in realtek HD

8600gt

New Member
guyz there is no 2.1 speaker option in realtek hd control panel
wat to do:(


My Computer

System One

  • CPU
    Intel Quad Core 9450
    Motherboard
    Gigabyte G33
    Memory
    4 GB
    Graphics Card(s)
    Nvidia 8600gt 512 MB
    Sound Card
    onboard sound card
    Monitor(s) Displays
    LG
    Screen Resolution
    1440 x 900
    Hard Drives
    1 TB
    Cooling
    Cooler master

mansrm81

Vista Guru
Its actually called 2/2.1 speaker, and do you have the lastest realtek driver.


My Computer

System One

  • Manufacturer/Model
    HP Compaq Presario/SR5113WM
    CPU
    AMD Athlon 64 X2 3600+ 1.9Ghz
    Motherboard
    Asus M2N68-LA
    Memory
    PNY Optima Memory DDR2 2GB 2x1 kit
    Graphics Card(s)
    PNY Nvidia 8400 GS 256MB
    Sound Card
    On board RealTek
    Monitor(s) Displays
    Acer X163W LCD
    Screen Resolution
    1366x768
    Hard Drives
    Western Digital 160 GB SATA 3G (3.0Gb/sec)
    7200 rpm
    Western Digital 160 GB IDE
    PSU
    Dynex 400w
    Case
    Nothin Special
    Cooling
    Stock
    Mouse
    Wireless Logitech LX7
    Keyboard
    Standard 102 key with volume and sleep buttons
    Internet Speed
    Comcrap 10mb cable
    Other Info
    Insignia 2.1 speakers, wireless Xbox 360 controller w/plug n play charger, Belkin wireless G + mimo usb network adapter.

8600gt

New Member
ya i have installed 2.06 latest 1
bur no 2.1 in the option


My Computer

System One

  • CPU
    Intel Quad Core 9450
    Motherboard
    Gigabyte G33
    Memory
    4 GB
    Graphics Card(s)
    Nvidia 8600gt 512 MB
    Sound Card
    onboard sound card
    Monitor(s) Displays
    LG
    Screen Resolution
    1440 x 900
    Hard Drives
    1 TB
    Cooling
    Cooler master

Dwarf

The Contemplator
Vista Guru
Gold Member
Hi,

There is a workaround for this which involves setting some options in the HD control panel. To get to these options, click the start orb, 'Control Panel' and 'Additional Options'. Next, click 'Realtek HD Audio Manager'. This should open as shown in the image below. Select 'Speakers' and 'Speaker Configuration' if not already selected. In 'Speaker Configuration', select '5.1 Speaker'.

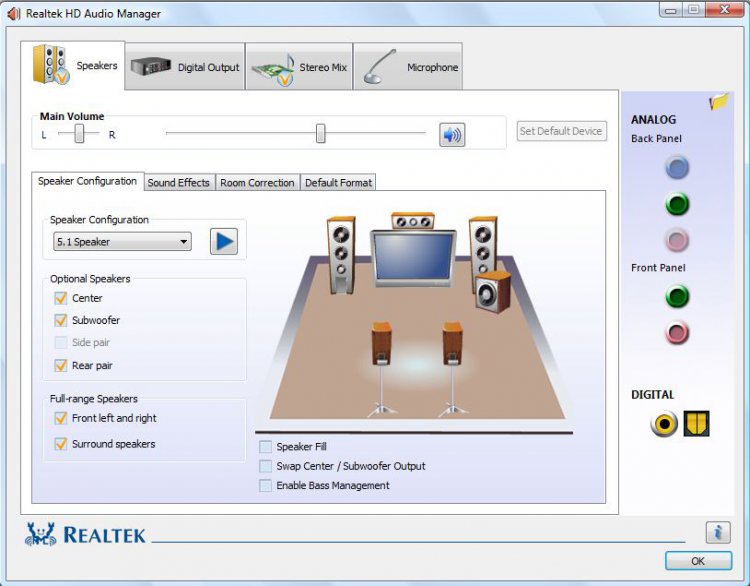

attachment.php

This shows the default 5.1 setup.

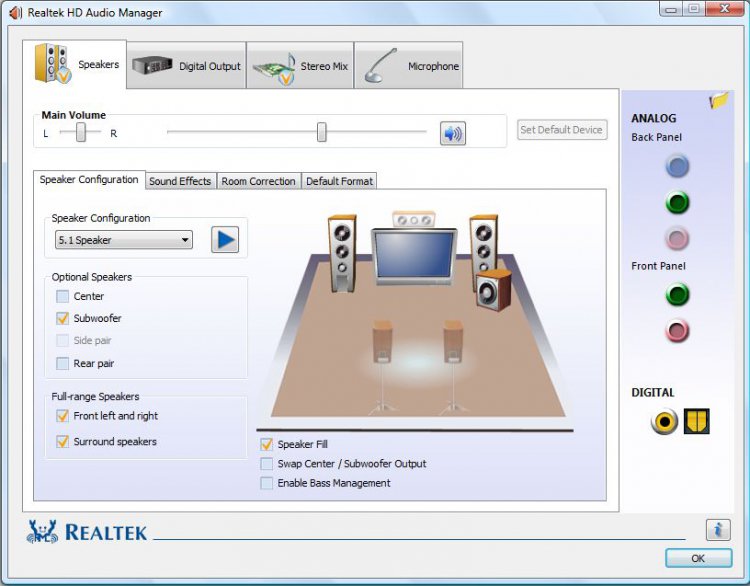

attachment.php

To change it to a 2.1 setup, you need to deselect the 'Optional Speakers' as shown above. The signals will then be fed as follows:
Rear Left > Front Left
Rear Right > Front Right
Center > Balanced between Front Left and Front Right
The Subwoofer will behave as normal.


Attachments

  • Capture.JPG
    60.9 KB · Views: 29,079
  • Capture1.JPG
    60.8 KB · Views: 23,550

My Computer

System One

  • Manufacturer/Model
    Dwarf Dwf/11/2012 r09/2013
    CPU
    Intel Core-i5-3570K 4-core @ 3.4GHz (Ivy Bridge) (OC 4.2GHz)
    Motherboard
    ASRock Z77 Extreme4-M
    Memory
    4 x 4GB DDR3-1600 Corsair Vengeance CMZ8GX3M2A1600C9B (16GB)
    Graphics Card(s)
    MSI GeForce GTX770 Gaming OC 2GB
    Sound Card
    Realtek High Definition on board solution (ALC 898)
    Monitor(s) Displays
    ViewSonic VA1912w Widescreen
    Screen Resolution
    1440x900
    Hard Drives
    OCZ Agility 3 120GB SATA III x2 (RAID 0)
    Samsung HD501LJ 500GB SATA II x2
    Hitachi HDS721010CLA332 1TB SATA II
    Iomega 1.5TB Ext USB 2.0
    WD 2.0TB Ext USB 3.0
    PSU
    XFX Pro Series 850W Semi-Modular
    Case
    Gigabyte IF233
    Cooling
    1 x 120mm Front Inlet 1 x 120mm Rear Exhaust
    Mouse
    Microsoft Comfort Mouse 3000 for Business (USB)
    Keyboard
    Microsoft Comfort Curve Keyboard 3000 (USB)
    Internet Speed
    NetGear DG834Gv3 ADSL Modem/Router (Ethernet) ~4.0 Mb/s (O2)
    Other Info
    Optical Drive: HL-DT-ST BD-RE BH10LS30 SATA Bluray
    Lexmark S305 Printer/Scanner/Copier (USB)
    WEI Score: 8.1/8.1/8.5/8.5/8.25
    Asus Eee PC 1011PX Netbook (Windows 7 x86 Starter)

cubish

New Member
hows it going...for some reason i am having trouble getting realtek hd audio manager to recognize my subwoofer...i dont have the speaker options showing..and i went to the control panel and went to additional options and the link for the realtek wasnt there...where should i go from here?


My Computer

Dwarf

The Contemplator
Vista Guru
Gold Member
Hi cubish and welcome to Vista Forums :party:

Have you actually installed the Realtek driver? Although Vista natively supports Realtek HD audio (at least, Vista Ultimate 64-bit SP1 does), it is only a basic driver. For full functionality, you need the driver from the Realtek site. Before you do so, what are your system specs, and are you running 32-bit or 64-bit? In particular, we need the make and model number of your motherboard as this will determine whether you want the HD or AC'97 driver (or a driver from a different manufacturer).


My Computer

System One

  • Manufacturer/Model
    Dwarf Dwf/11/2012 r09/2013
    CPU
    Intel Core-i5-3570K 4-core @ 3.4GHz (Ivy Bridge) (OC 4.2GHz)
    Motherboard
    ASRock Z77 Extreme4-M
    Memory
    4 x 4GB DDR3-1600 Corsair Vengeance CMZ8GX3M2A1600C9B (16GB)
    Graphics Card(s)
    MSI GeForce GTX770 Gaming OC 2GB
    Sound Card
    Realtek High Definition on board solution (ALC 898)
    Monitor(s) Displays
    ViewSonic VA1912w Widescreen
    Screen Resolution
    1440x900
    Hard Drives
    OCZ Agility 3 120GB SATA III x2 (RAID 0)
    Samsung HD501LJ 500GB SATA II x2
    Hitachi HDS721010CLA332 1TB SATA II
    Iomega 1.5TB Ext USB 2.0
    WD 2.0TB Ext USB 3.0
    PSU
    XFX Pro Series 850W Semi-Modular
    Case
    Gigabyte IF233
    Cooling
    1 x 120mm Front Inlet 1 x 120mm Rear Exhaust
    Mouse
    Microsoft Comfort Mouse 3000 for Business (USB)
    Keyboard
    Microsoft Comfort Curve Keyboard 3000 (USB)
    Internet Speed
    NetGear DG834Gv3 ADSL Modem/Router (Ethernet) ~4.0 Mb/s (O2)
    Other Info
    Optical Drive: HL-DT-ST BD-RE BH10LS30 SATA Bluray
    Lexmark S305 Printer/Scanner/Copier (USB)
    WEI Score: 8.1/8.1/8.5/8.5/8.25
    Asus Eee PC 1011PX Netbook (Windows 7 x86 Starter)

cubish

New Member
thank you...i honostly dont know much about computers..but im going to read off what i have on the sticker lol..it says amd live..64x2 dual core prossescor...windows vista home premium..


My Computer

BlueSkies

New Member
Thanks for the advice so far, I appear to have the latest drive provided for Audio for my ASUS P5Q Pro motherboard and have followed the instrutions in this thread to setup in 5.1 mode and get 2.1.

When I play music the suwoofer appears to be working, but I am not sure whether everything is working optimally.

When I do a test using the test button beside "Speaker Configuration" all the speakers create sound but the subwoofer, is this a problem considering the subwoofer is creating sound when playing music?

Also, I am a bit confused on the best way to hookup my speakers to the computer. I have Logitech Z4 2.1 speakers but my motherboard has a lot of 5.1 related outputs and also a digital S/PDIF output ... I was told by logitech just to plug the single connector into the "green" connector on the computer (which is either headphones or Front Speaker Out).

Am I getting full use of my speaks using this setup or can I use S/PDIF out and some sort of conversion cable for it to work better?

Thanks for any advice.


My Computer

thepizzaman

Banned
if its 2.1 you won't hear it in the test since its 2.1 the sub will play though.......


My Computer

System One

  • Manufacturer/Model
    Acer, Aspire M1201\Custom Build
    CPU
    AMD Athlon X2 5000+ @ 2.6Ghz
    Motherboard
    Acer Micro-ATX Motherboard
    Memory
    2x2gb Patriot Viper DDR2 PC6400 @ 800mhz Dual Channel SLI Edition (4-4-4-12)
    Graphics Card(s)
    ATI HD3870 with 512mb GDDR4
    Sound Card
    Realtek HD 7.1 Onboard Sound
    Monitor(s) Displays
    22" Acer X223 Widescreen
    Screen Resolution
    1680 X 1050
    Hard Drives
    320gb Western Digital SATA II (Ubuntu 9.10)
    500gb Seagate SATA II
    1tb Seagate SATA II (Vista Home Premium)
    PSU
    ULTRA X3 600 Watt Modular
    Case
    NZXT Tempest (The Airflow King) 2x 140mm Fans, 4x 120mm Fans
    Cooling
    1x 135mm In PSU, 1x 70mm On CPU, And 1x 120mm On GPU
    Mouse
    Microsoft Sidewinder X5
    Keyboard
    Microsoft Sidewinder X6
    Internet Speed
    6 Mbs Down 1 Mbs Up
    Other Info
    AVerMedia 1500MCE TV Tuner
    Logitech X540 5.1 Surround Sound

warfront1

New Member
This comes up as one of the top searches for this issue with no subwoofer and 2.1 problems. I went threw around 6 hours of research to finally getting this to work, So I figured I would join a share my findings on how to fix this issue.

Using 2.1 on Realtek HD Audio driver:

First thing you want to do is visit:
http://www.realtek.com/downloads/

Download the most up to date Realtek HD Audio Driver from them.

The solution To Proper 2.1(or at least working):
