Please Help!! Network Cable Unplugged?!

#1
OK, after goin around many sites and looking at many "solutions" I can't find one.
Basically, I'm tryin to set up a PS3 to my laptop to get shared connection through my Mobile Broadband Dongle.

I know how to do it, as I've done it before, and the connection says its shared beside my ISP..

The Ethernet Cable is connected to both PS3 and Laptop, but it says on my laptop "Network cable unplugged" and has a red x beside it. Also on the playstation side of things, it says "connect ethernet cable".

I know it works as I had an xbox hooked up this way not so long ago.
Question is, why won't it see the cable this time?

I've tried 4 cables, so it cant be the cables..

???!!


My Computer

System One

  • Manufacturer/Model
    Advent (dixonsxp)
    CPU
    Intel(R) Pentium(R) Dual CPU T2310 @ 1.46GHz

Lorien

Account Suspended
usa us_maryland
#2
Hi DannyBoi3k,

Welcome to Vista Forums!

First, check the following article to see if it helps: How to Use Wireless Broadband (Dongle) on a Ps3 | Computersight.

********************************************************

If that doesn't work, try the following You Tube video showing how to setup the connection:

http://www.youtube.com/watch?v=xDAcmrOVTdk

*********************************************************

If that doesn't work, try the attached PDF file at the end of this post to see if it helps.

*********************************************************

If that still doesn't work, you have to run the internet off of your computer and plug an ethernet cable into your ps3 from your computer then go to your connection on your computer (Vista: Control panel > network and sharing center > manage network connections) right click > properties > sharing, and select allow other users to connect through this computers internet connection.

Then on the ps3 go to settings and change the connection to wired connection and set it up from there.

*******************************************************

If that doesn't work, open your Network Connections. You will see the 3 modem, ignore this for now. Further down you will see 2 ethernet connections, Local area connection, and 1394 connection. Right click on Local Area Connection and Bridge the connection. Then open the properties of your 3 modem and under Advanced click on internet connection sharing. Install your ethernet cable from the back of your computer directly to the PS3. On your PS3 network settings search for the new connection. You should be fine from there.

*******************************************************

It could also be an IP address issue. Try the following:

http://www.5min.com/Video/How-to-Fin...ur-PC-40302872

From your laptop Do this and input "ipconfig /all" into the command prompt.

It will show you your dns server IP's you need to input on the PS3

OR if using those don't work and you still have a DNS problem, try the following for DNS problems:

Go to your PS3 network settings. Manually setup up your connection instead of automatic. Leave all the settings on automatic except for DNS settings. Manually enter

Primary: 208 67 222 222

Secondary: 208 67 220 220

That's your PS3 ready. Now go to your PC. For Vista follow these steps. Network sharing center>next to "mobile connect' in your case click on 'view status' > properties > continue > networking > Click on IPv4 > properties > then in the window that pops up enter the same DNS primary and secondary numbers again

Primary: 208 67 222 222

Secondary: 208 67 220 220

Click 'ok'. Under the 'sharing' tab double check that sharing is enabled.

Finally disconnect your internet connection then reconnect to apply all the new settings.

*************************************************

I hope this helps. If not, post back and we'll try some other options.

Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01

derekimo

Staff member
usa us_california
#3

My Computer

System One

  • Manufacturer/Model
    Self Built
    CPU
    Intel I5-2500K @3.3GHz
    Motherboard
    Asrock P67 Extreme4
    Memory
    16GB G.Skill Ripjaws X (4x4GB)
    Graphics Card(s)
    EVGA GeForce 750 Ti SC 2GB
    Sound Card
    ASUS Xonar DG 5.1 Channels 24-bit 96KHz PCI Interface Sound
    Monitor(s) Displays
    auria eq2367
    Screen Resolution
    1920 x 1080
    Hard Drives
    250GB Samsung 850 EVO SSD
    1TB WD Blue
    1TB Hitachi
    PSU
    SeaSonic X 650W 80 Plus Gold
    Case
    Corsair Obsidian 750D
    Cooling
    Corsair H60, Three 140mm case fans
    Mouse
    Logitech Wireless Mouse M310
    Keyboard
    Logitech Wireless Keyboard K520
    Internet Speed
    Wave Broadband ~ 100 down 5 Up
    Other Info
    Laptop specs: HP g7-1365dx /
    CPU: AMD A6-3420M APU with Radeon(tm) HD Graphics /
    RAM: Crucial 8Gb (2x4Gb) /
    SSD: Crucial M4-CT128M4SSD2 ATA Device/ FW 000F /
    GFX: AMD Radeon HD 6520G /
    OS: Windows 10 Pro x64
#4
Thanks very much Lorien, but have tried all that and still no luck, very frustrated here :/

also when I try put the IP address in manually, it wont let me save it, it just has the option to "edit" or "cancel" and when i press left on the d-pad i can only go to "automatic" for the IP address!?

Don't know why the laptop cant pick up the ethernet also there is no 1394 connection in my manage network connections and no sharing tab in my ISP's tab menu?! it just disappeared...


My Computer

System One

  • Manufacturer/Model
    Advent (dixonsxp)
    CPU
    Intel(R) Pentium(R) Dual CPU T2310 @ 1.46GHz
#5
If that doesn't work, open your Network Connections. You will see the 3 modem, ignore this for now. Further down you will see 2 ethernet connections, Local area connection, and 1394 connection. Right click on Local Area Connection and Bridge the connection. Then open the properties of your 3 modem and under Advanced click on internet connection sharing. Install your ethernet cable from the back of your computer directly to the PS3. On your PS3 network settings search for the new connection. You should be fine from there.

I've tried this on an older XP pc where I had the 1394 connection (which said connected even when the ethernet was out) and the Local Area Connection still said unplugged?? And the PS3 wont recognize that there is an Ethernet cable in it?!


My Computer

System One

  • Manufacturer/Model
    Advent (dixonsxp)
    CPU
    Intel(R) Pentium(R) Dual CPU T2310 @ 1.46GHz

derekimo

Staff member
usa us_california
#6

My Computer

System One

  • Manufacturer/Model
    Self Built
    CPU
    Intel I5-2500K @3.3GHz
    Motherboard
    Asrock P67 Extreme4
    Memory
    16GB G.Skill Ripjaws X (4x4GB)
    Graphics Card(s)
    EVGA GeForce 750 Ti SC 2GB
    Sound Card
    ASUS Xonar DG 5.1 Channels 24-bit 96KHz PCI Interface Sound
    Monitor(s) Displays
    auria eq2367
    Screen Resolution
    1920 x 1080
    Hard Drives
    250GB Samsung 850 EVO SSD
    1TB WD Blue
    1TB Hitachi
    PSU
    SeaSonic X 650W 80 Plus Gold
    Case
    Corsair Obsidian 750D
    Cooling
    Corsair H60, Three 140mm case fans
    Mouse
    Logitech Wireless Mouse M310
    Keyboard
    Logitech Wireless Keyboard K520
    Internet Speed
    Wave Broadband ~ 100 down 5 Up
    Other Info
    Laptop specs: HP g7-1365dx /
    CPU: AMD A6-3420M APU with Radeon(tm) HD Graphics /
    RAM: Crucial 8Gb (2x4Gb) /
    SSD: Crucial M4-CT128M4SSD2 ATA Device/ FW 000F /
    GFX: AMD Radeon HD 6520G /
    OS: Windows 10 Pro x64
#7

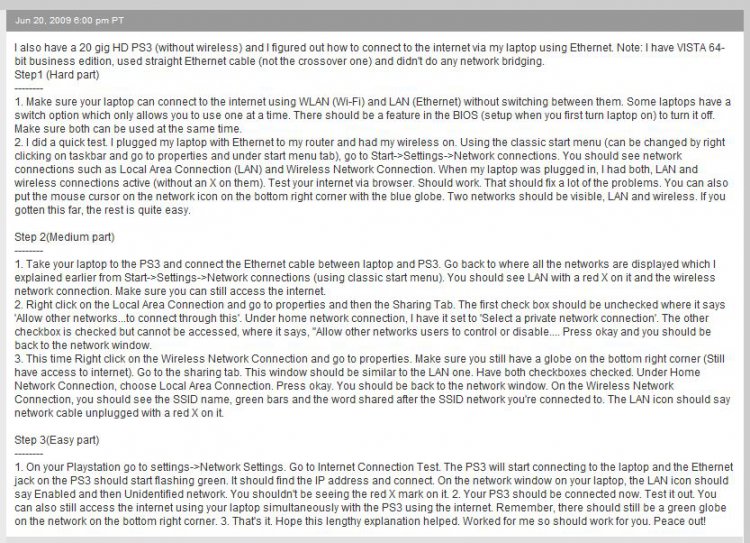

3. This time Right click on the Wireless Network Connection and go to properties. Make sure you still have a globe on the bottom right corner (Still have access to internet). Go to the sharing tab. This window should be similar to the LAN one. Have both checkboxes checked. Under Home Network Connection, choose Local Area Connection. Press okay. You should be back to the network window. On the Wireless Network Connection, you should see the SSID name, green bars and the word shared after the SSID network you're connected to. The LAN icon should say network cable unplugged with a red X on it.

Step 3(Easy part)
--------
1. On your Playstation go to settings->Network Settings. Go to Internet Connection Test. The PS3 will start connecting to the laptop and the Ethernet jack on the PS3 should start flashing green. It should find the IP address and connect. On the network window on your laptop, the LAN icon should say Enabled and then Unidentified network. You shouldn't be seeing the red X mark on it. 2. Your PS3 should be connected now. Test it out. You can also still access the internet using your laptop simultaneously with the PS3 using the internet. Remember, there should still be a green globe on the network on the bottom right corner. 3. That's it. Hope this lengthy explanation helped. Worked for me so should work for you. Peace out!

Where it Says Under Home Network Connection, choose Local Area Connection. Press okay. I dont have that. Also "Sharing" is gone from the tab menu,

And when I do that, and I click test network it just says connect ethernet cable..
Thanks but its just not working !?!! Cant understand it


My Computer

System One

  • Manufacturer/Model
    Advent (dixonsxp)
    CPU
    Intel(R) Pentium(R) Dual CPU T2310 @ 1.46GHz

derekimo

Staff member
usa us_california
#9
3. This time Right click on the Wireless Network Connection and go to properties. Make sure you still have a globe on the bottom right corner (Still have access to internet). Go to the sharing tab. This window should be similar to the LAN one. Have both checkboxes checked. Under Home Network Connection, choose Local Area Connection. Press okay. You should be back to the network window. On the Wireless Network Connection, you should see the SSID name, green bars and the word shared after the SSID network you're connected to. The LAN icon should say network cable unplugged with a red X on it.

Step 3(Easy part)
--------
1. On your Playstation go to settings->Network Settings. Go to Internet Connection Test. The PS3 will start connecting to the laptop and the Ethernet jack on the PS3 should start flashing green. It should find the IP address and connect. On the network window on your laptop, the LAN icon should say Enabled and then Unidentified network. You shouldn't be seeing the red X mark on it. 2. Your PS3 should be connected now. Test it out. You can also still access the internet using your laptop simultaneously with the PS3 using the internet. Remember, there should still be a green globe on the network on the bottom right corner. 3. That's it. Hope this lengthy explanation helped. Worked for me so should work for you. Peace out!

Where it Says Under Home Network Connection, choose Local Area Connection. Press okay. I dont have that. Also "Sharing" is gone from the tab menu,

And when I do that, and I click test network it just says connect ethernet cable..
Thanks but its just not working !?!! Cant understand it

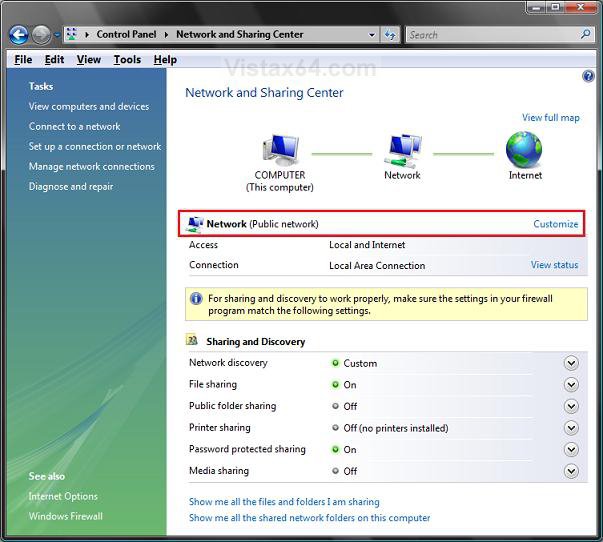

Can you post a screenshot of your network screen like this,


Also in Device manager, are there any notification icons next to network adapters?


My Computer

System One

  • Manufacturer/Model
    Self Built
    CPU
    Intel I5-2500K @3.3GHz
    Motherboard
    Asrock P67 Extreme4
    Memory
    16GB G.Skill Ripjaws X (4x4GB)
    Graphics Card(s)
    EVGA GeForce 750 Ti SC 2GB
    Sound Card
    ASUS Xonar DG 5.1 Channels 24-bit 96KHz PCI Interface Sound
    Monitor(s) Displays
    auria eq2367
    Screen Resolution
    1920 x 1080
    Hard Drives
    250GB Samsung 850 EVO SSD
    1TB WD Blue
    1TB Hitachi
    PSU
    SeaSonic X 650W 80 Plus Gold
    Case
    Corsair Obsidian 750D
    Cooling
    Corsair H60, Three 140mm case fans
    Mouse
    Logitech Wireless Mouse M310
    Keyboard
    Logitech Wireless Keyboard K520
    Internet Speed
    Wave Broadband ~ 100 down 5 Up
    Other Info
    Laptop specs: HP g7-1365dx /
    CPU: AMD A6-3420M APU with Radeon(tm) HD Graphics /
    RAM: Crucial 8Gb (2x4Gb) /
    SSD: Crucial M4-CT128M4SSD2 ATA Device/ FW 000F /
    GFX: AMD Radeon HD 6520G /
    OS: Windows 10 Pro x64

Lottiemansion

Vista Guru
Gold Member
uk uk_yorkshire
#10
Hi,

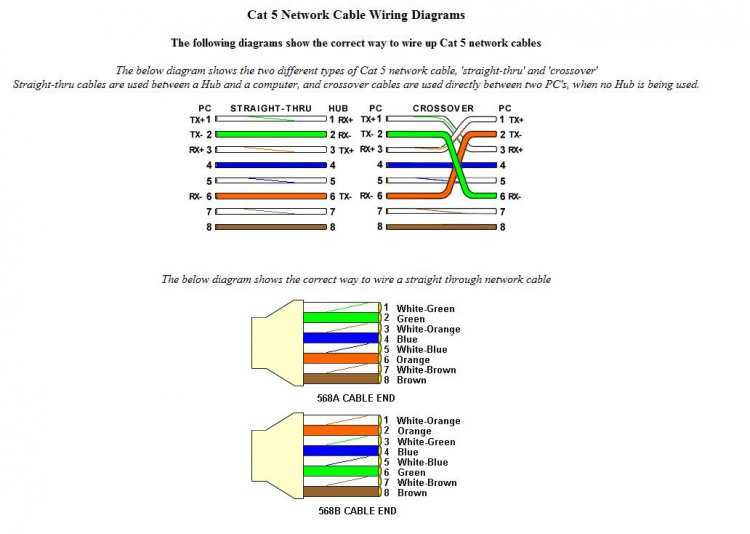

What type of cable are you using? it should be a standard "Cross over" NOT a "Straight" one.


My Computer

System One

  • Manufacturer/Model
    HP-Pavilion m9280.uk-a
    CPU
    2.30 gigahertz AMD Phenom 9600 Quad-Core
    Motherboard
    ASUSTek Computer INC. NARRA3 3.02
    Memory
    3582 Megabytes Usable Installed Memory (4 Gig)
    Graphics Card(s)
    ASUS NVIDIA Geforce GTS450
    Sound Card
    Realtek High Definition 7.1 Audio (HP drivers)
    Monitor(s) Displays
    HP w2408 24.0" (Dual monitor)
    Screen Resolution
    1920 * 1200, 1920 * 1200
    Hard Drives
    3*500 Gigabytes Usable Hard Drive Capacity
    Plus 2x USB (160Gig each) external HDD
    BluRay & DVD Weiters
    HL-DT-ST BD-RE GGW-H20L SCSI CdRom (Bluray RW) Device
    AlViDrv BDDVDROM SCSI CdRom (Blueray) Device
    TSSTcorp CDDVDW TS-H653N SCSI CdRom
    Internet Speed
    40 Meg
#11
3. This time Right click on the Wireless Network Connection and go to properties. Make sure you still have a globe on the bottom right corner (Still have access to internet). Go to the sharing tab. This window should be similar to the LAN one. Have both checkboxes checked. Under Home Network Connection, choose Local Area Connection. Press okay. You should be back to the network window. On the Wireless Network Connection, you should see the SSID name, green bars and the word shared after the SSID network you're connected to. The LAN icon should say network cable unplugged with a red X on it.

Step 3(Easy part)
--------
1. On your Playstation go to settings->Network Settings. Go to Internet Connection Test. The PS3 will start connecting to the laptop and the Ethernet jack on the PS3 should start flashing green. It should find the IP address and connect. On the network window on your laptop, the LAN icon should say Enabled and then Unidentified network. You shouldn't be seeing the red X mark on it. 2. Your PS3 should be connected now. Test it out. You can also still access the internet using your laptop simultaneously with the PS3 using the internet. Remember, there should still be a green globe on the network on the bottom right corner. 3. That's it. Hope this lengthy explanation helped. Worked for me so should work for you. Peace out!

Where it Says Under Home Network Connection, choose Local Area Connection. Press okay. I dont have that. Also "Sharing" is gone from the tab menu,

And when I do that, and I click test network it just says connect ethernet cable..
Thanks but its just not working !?!! Cant understand it
Can you post a screenshot of your network screen like this,

View attachment 22022

Also in Device manager, are there any notification icons next to network adapters?

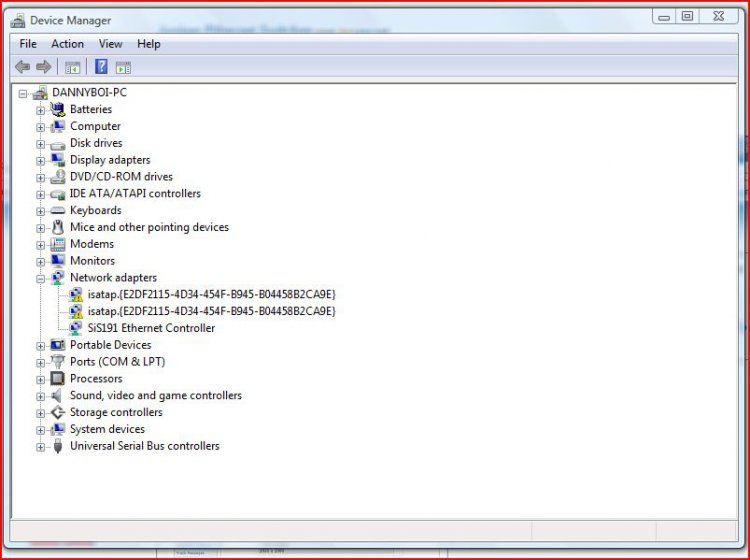

Yeah they are two exclamation marks beside network adapters, try to update the drivers but windows says im usin the latest drivers..

And yeah its a crossover cable..


My Computer

System One

  • Manufacturer/Model
    Advent (dixonsxp)
    CPU
    Intel(R) Pentium(R) Dual CPU T2310 @ 1.46GHz
#12

My Computer

System One

  • Manufacturer/Model
    Self Built
    CPU
    Intel I5-2500K @3.3GHz
    Motherboard
    Asrock P67 Extreme4
    Memory
    16GB G.Skill Ripjaws X (4x4GB)
    Graphics Card(s)
    EVGA GeForce 750 Ti SC 2GB
    Sound Card
    ASUS Xonar DG 5.1 Channels 24-bit 96KHz PCI Interface Sound
    Monitor(s) Displays
    auria eq2367
    Screen Resolution
    1920 x 1080
    Hard Drives
    250GB Samsung 850 EVO SSD
    1TB WD Blue
    1TB Hitachi
    PSU
    SeaSonic X 650W 80 Plus Gold
    Case
    Corsair Obsidian 750D
    Cooling
    Corsair H60, Three 140mm case fans
    Mouse
    Logitech Wireless Mouse M310
    Keyboard
    Logitech Wireless Keyboard K520
    Internet Speed
    Wave Broadband ~ 100 down 5 Up
    Other Info
    Laptop specs: HP g7-1365dx /
    CPU: AMD A6-3420M APU with Radeon(tm) HD Graphics /
    RAM: Crucial 8Gb (2x4Gb) /
    SSD: Crucial M4-CT128M4SSD2 ATA Device/ FW 000F /
    GFX: AMD Radeon HD 6520G /
    OS: Windows 10 Pro x64
#13

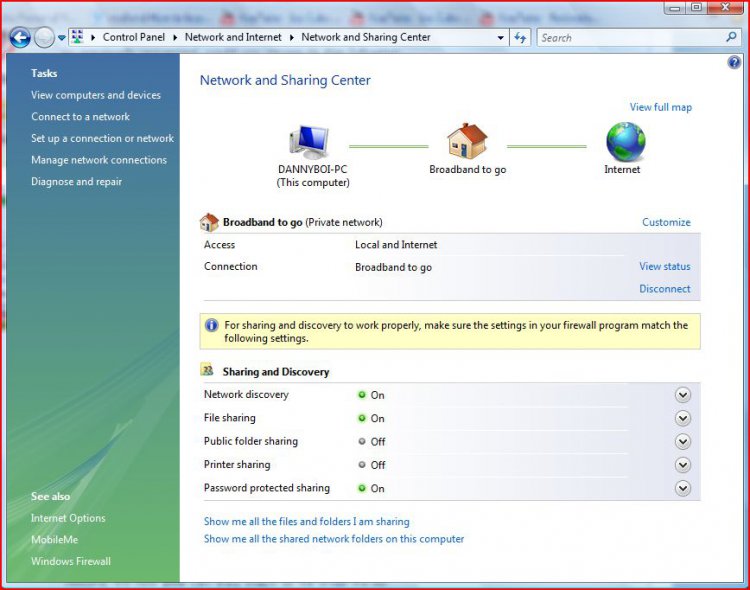

Theres the screen shot .. hope it helps..
It wont let me download new drivers for it?

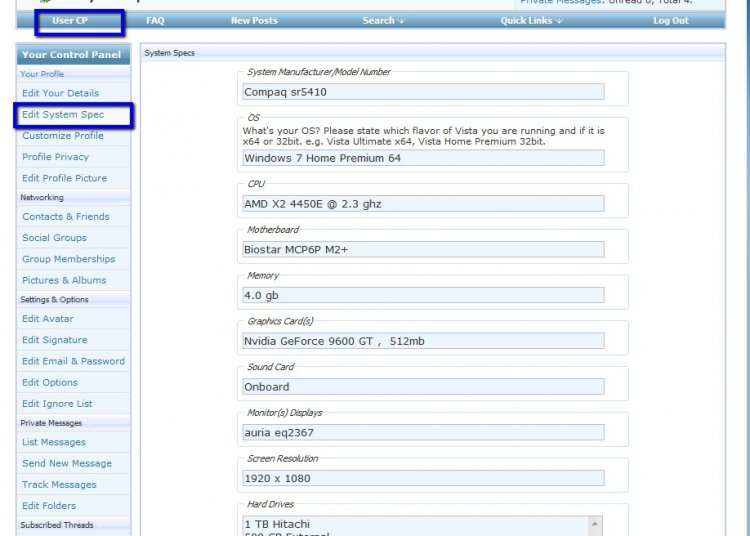

System Info bein filled out now..

Thanks


My Computer

System One

  • Manufacturer/Model
    Advent (dixonsxp)
    CPU
    Intel(R) Pentium(R) Dual CPU T2310 @ 1.46GHz

Lorien

Account Suspended
usa us_maryland
#14
Hi DannyBoi3k,

As previously requested, could you please do the following:

Can you post a screenshot of your network screen like this,

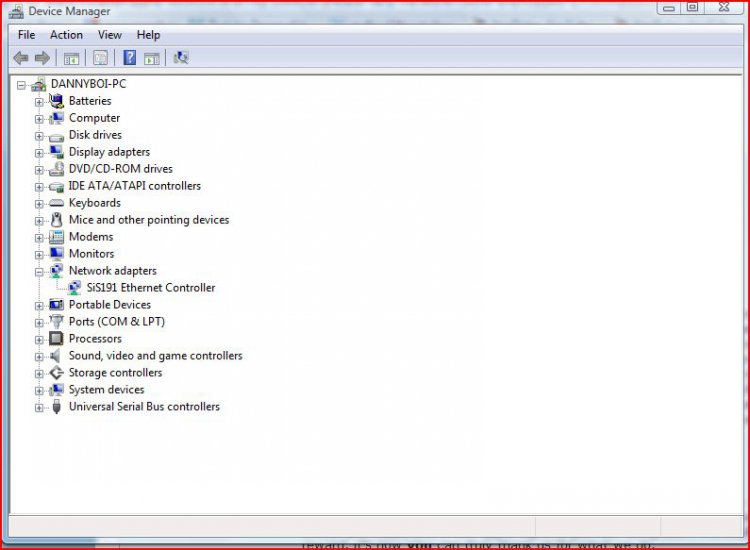

Also, go to Device Manager and go to Network Adapters and remove everything there. When all are gone, click on Actions on the Menu and click Scan for Hardware Changes. Follow the recommended wizard and it should locate and re-install the device drivers for the Network Adapter(s). It may request new device driver files, so have the updated drivers for that Network Adapter handy in case they are needed (if necessary, download them with another computer to a flash drive or a blank CD). Once done, reboot and then go back to Device Manager and see if it still shows any problems or if things now look OK. If OK, try connecting and see what happens. If there are still problems, double click on the problem devices and screenprint the General Tab of those screens as well to see the message about the problem.

Thanks and Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01
#15
Its just uninstalled the two isatap drivers and when I click on Network Adapters and "scan for hardware changes it just closes the menu and opens it back up again.. no wizard.

Here is a screenshot



and one you requested


My Computer

System One

  • Manufacturer/Model
    Advent (dixonsxp)
    CPU
    Intel(R) Pentium(R) Dual CPU T2310 @ 1.46GHz

Lorien

Account Suspended
usa us_maryland
#16
Your Adapter does not seem to be in Device Manager - which would explain why it doesn't think it's connected (because it isn't if the device isn't being recognized). If it were recognized and connected, you should see another connection listed including that Adapter (and it would probably be a local connection). The device there (and the connection listed) are for connecting the computer to the internet - not your laptop to the PS3.

Go to Start / Control Panel / Add Hardware and first try the recommended option to find and install new hardware. If that results in nothing, then choose the option to select what to install and go through the process to install the Adapter (which will definitely require the drivers and possibly firmware and/or software - I'm not certain what this adapter needs).

If this doesn't work, then I have to wonder if the Adapter is compatible with your system (or even Windows in general) and/or if it has some type of hardware problem - especially if it also doesn't work on another XP computer.

I hope this helps.

Good luck!


My Computer

System One

  • Manufacturer/Model
    Dell Inc. MP061 Inspiron E1705
    CPU
    2.00 gigahertz Intel Core 2 Duo 64 kilobyte primary memory
    Motherboard
    Board: Dell Inc. 0YD479 Bus Clock: 166 megahertz
    Memory
    2046 Megabytes Usable Installed Memory
    Graphics Card(s)
    ATI Mobility Radeon X1400 (Microsoft Corporation - WDDM) [Di
    Sound Card
    SigmaTel High Definition Audio CODEC
    Monitor(s) Displays
    Generic PnP Monitor (17.2"vis)
    Screen Resolution
    1920 x 1200 pixels
    Hard Drives
    Hitachi HTS541616J9SA00 [Hard drive] (160.04 GB) -- drive 0, s/n SB2411SJGLLRMB, rev SB4OC74P, SMART Status: Healthy
    Case
    Chassis Serial Number: 5YK95C1
    Mouse
    Logitech HID-compliant Cordless Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    1958 Kbps download ; 754.8 Kbps upload
    Other Info
    Optiarc DVD+-RW AD-5540A ATA Device [CD-ROM drive]

    Dell AIO Printer A940

    Conexant HDA D110 MDC V.92 Modem

    6TO4 Adapter
    Broadcom 440x 10/100 Integrated Controller
    Broadcom 802.11n Network Adapter
    Microsoft ISATAP Adapter
    Teredo Tunneling Pseudo-Interface

    Router Linksys / WRT54G -01

Users Who Are Viewing This Thread (Users: 1, Guests: 0)
