How to Open and Use Private Character Editor in Vista, Windows 7, and Windows 8
Synopsis
You can use Private Character Editor (PCE) to create your own special characters, which you can then insert into documents by using Character Map.
How to Open and Use Private Character Editor in Vista, Windows 7, and Windows 8

information   Information
You can use Private Character Editor (PCE) to create your own special characters, which you can then insert into documents by using Character Map. You can create up to 6,400 unique characters (such as special letters and logos) for use in your font library. PCE contains basic tools for creating and editing characters, along with more advanced options. For more information, see: Windows Help and How-to: Private Character Editor
Note   Note

  • The Private Character Editor EXE file is located at:
    C:\Windows\System32\eudcedit.exe
  • The Private Character folder location is at:
    C:\Users\(User Name)\AppData\Local\Microsoft\Windows\EUDC
    NOTE: This is a hidden system file. For how to see it, see: How to Hide or Show Hidden Files and Folders in Vista


Here's How:

1. Press the Windows + R keys to open the Run dialog, type eudcedit.exe, and press Enter.

2. If prompted by UAC, then click/tap on Continue (Vista) or Yes (Windows 7/8).

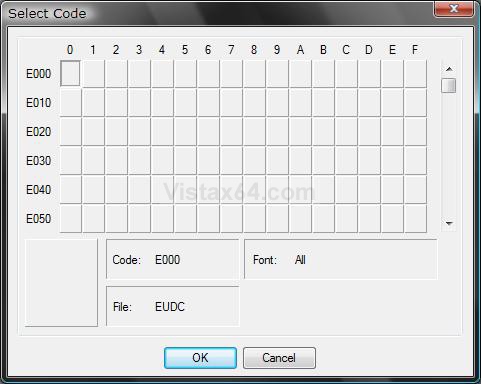

3. Select a code box for the character, and click/tap OK. (See screenshot below)
NOTE: A code is just a location of the character. Think of it like a spreadsheet. If you have already created a character and saved it, you will see it in one of the code boxes.


4. Click/tap on File on the menu bar, and click/tap on Font Links. (See screenshot below)

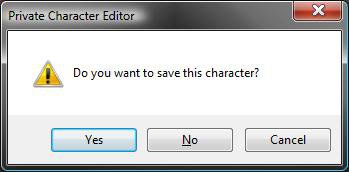

5. Click/tap on Yes to save. (See screenshot below)


6. To Link with All Fonts
NOTE:
To link a private character to all the fonts installed on your computer.
A) Dot Link with All Fonts, and click/tap OK. (See left screenshot below step 7)​
NOTE: This will have this character available in the Font selection TT All Fonts (Private Characters in Character Map.​
B) Go to step 10 below.​

7. To Link with Selected Fonts
NOTE:
To link a private character to a specific font installed on your computer.

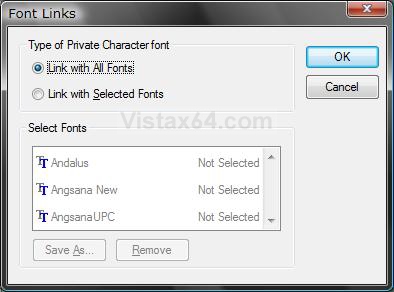

A) Select (dot) Link with Selected Fonts. (See left screenshot below)​
B) Under Select Fonts, click on the font you want to link the character to. (See left screenshot below)​
C) Click/tap on Save As. (See left screenshot below)​

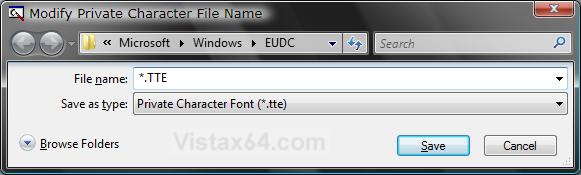

D) Enter a file name for the private character. (See right screenshot below)​
E) Click/tap on Save (See right screenshot below), and click/tap on OK (See left screenshot below).​

8. How to Use Private Character Editor Tools

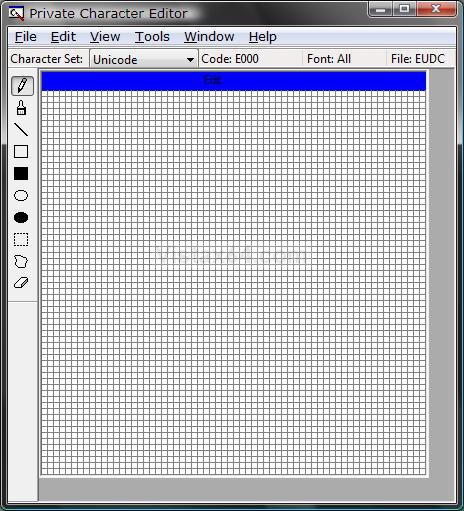

A) Select a tool, from the toolbar to the left, to create your private character. (See screenshot below step 4)​
NOTE: To select a tool when the toolbar is hidden, click/tap on the Tools menu, point to Item, and then click the tool you want.

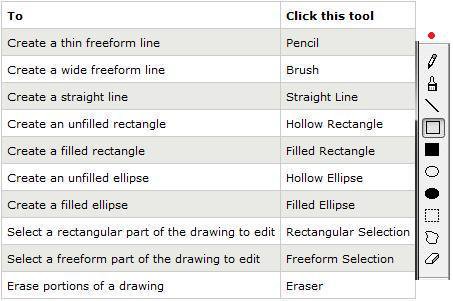

Using the Toolbar:

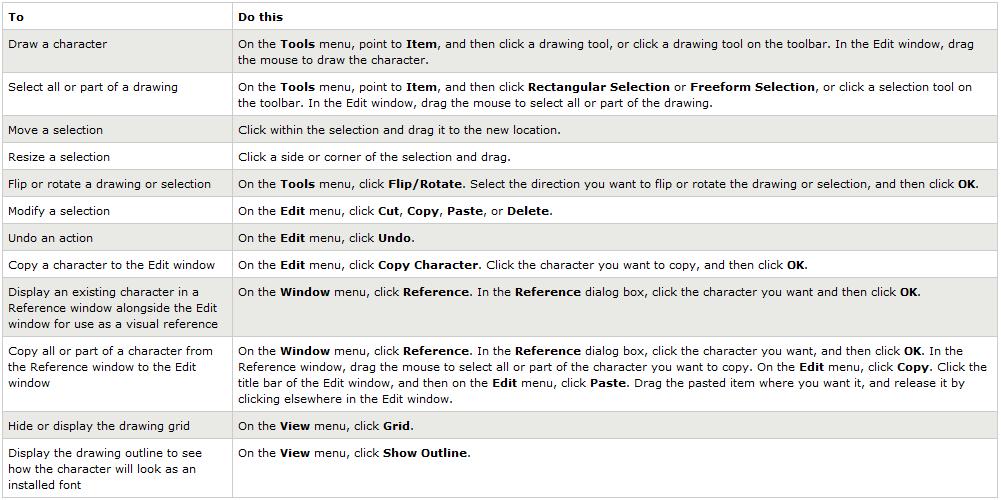

Using the Drawing Tools:

9. To Save the Private Character
A) Click/tap on the Edit menu.​

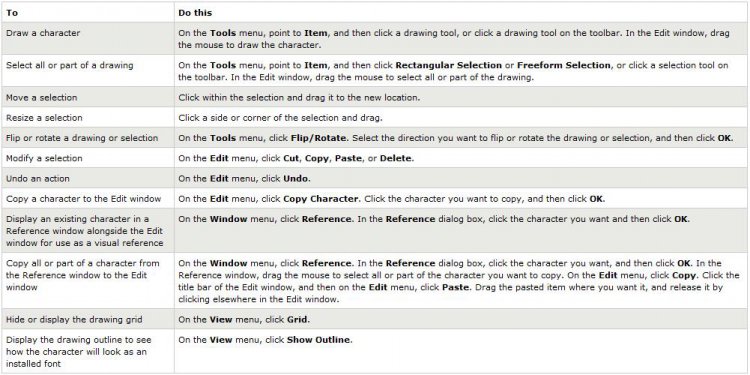

B) Click/tap on the option you want to do. (See table below)​

Menu Option

Description

Save Character

Click to save in the current code box.

Save Character As

Click to select a code box to save in. (see screenshot below step 4)

10. The private character will now be available to be used with Character Map.


That's it,
Shawn




Attachments

Last edited:

My Computers

System One System Two

  • Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS ROG Maximus XI Formula Z390
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated Digital Audio (S/PDIF)
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    1TB Samsung 970 EVO Plus M.2,
    250GB Samsung 960 EVO M.2,
    6TB WD Black WD6001FZWX
    8TB WD MyCloudEX2Ultra NAS
    PSU
    Seasonic Prime Titanium 850W
    Case
    Thermaltake Core P3
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    1 Gb/s Download and 35 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Logitech BRIO 4K Pro webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB8200 cable modem,
    APC SMART-UPS RT 1000 XL - SURT1000XLI,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

sclouse

New Member
It seems that we can only create Private Characters starting at E100. That's fine... but we need quick access to the symbols/characters while typing. Is there an ALT+NNNNN equivalent to E100, etc that we can type to get the Private Character into a document?

(PS - Using the Copy / Paste suggestion that I keep reading about simply won't work for my customers)

Thanks in advance.
