Realtech HD Audio Manager not working with front jacks

Megz

New Member
Messages
27
#1
It shows my front jacks. But when I plug in my headset nothing pops up, and I can't manually click the jack. Having to pull out my entire computer every time I want to plug in my headset it really really annoying, which is the whole reason I got jacks on the front of my computer...now they don't work?


My Computer

System One

  • CPU
    Intel(R) Core(TM)2 Quad CPU
    Motherboard
    I know it's made by MSI that's about it
    Memory
    4gigs RAM
    Graphics Card(s)
    NVIDIA GeForce 9800 GT
    Sound Card
    *shrugs* RealTek I'd guess
    Monitor(s) Displays
    LCD I'm fairly certain, one corner says HDMonitor and the other says emachines.
    Screen Resolution
    don't think i ever knew
    PSU
    not even sure what this is
    Case
    it's pretty and i can see through one side...it glows!
    Cooling
    I see 2 fans.
    Mouse
    Also a Dell
    Keyboard
    Not sure, it's a Dell
    Internet Speed
    Cable
    Other Info
    I really don't know where to find any of this information. We bought the computer online from a website that builds gaming computers. I know it's pretty and it lets me play WoW at a normal speed. If I wanna sound like I know something about computers I throw out the words "4gig Quad Core!"

pooch

Old Dog
Vista Guru
Messages
1,046
Location
Germany
#2
It shows my front jacks. But when I plug in my headset nothing pops up, and I can't manually click the jack. Having to pull out my entire computer every time I want to plug in my headset it really really annoying, which is the whole reason I got jacks on the front of my computer...now they don't work?
Hi Megz,

Welcome to the Forum,

You need to check that the front speakers are connected to the motherboard. There are up two connectors one is for HD (mine is yellow) and the other for AC97. You now need to Enter the Bios and check that Front Panel Audio is selected to the same HD or AC97


I hope this helps

Pooch


My Computer

System One

  • Manufacturer/Model
    Self build
    CPU
    Phenom II x4 Black Edition 940-Arctic-Cooling Freezer Xtreme
    Motherboard
    Asus M3A32-MVP Deluxe
    Memory
    8 gig Samsung PC800 RAM
    Graphics Card(s)
    NVidia 9600gt
    Sound Card
    AD1988b
    Monitor(s) Displays
    22" TFT-MONITOR WIDESCREEN mit VGA/DVI 17" Video7 TFT
    Screen Resolution
    1680 : 1050 1280 : 1024
    Hard Drives
    Drive #1 - SAMSUNG HD252HJ (250 GB)
    Drive #2 - Hitachi HDT721010SLA360 (1000 GB)
    Drive #3 - SAMSUNG HD250HJ (250 GB)
    Drive #4 - SAMSUNG HD103UJ (1000 GB) External eSATA
    PSU
    Thermaltake Toughpower Cable Management 750W
    Case
    Enermax Chakra
    Cooling
    2x 120mm Front and Back 1x 250mm Side
    Mouse
    Easy Line Laser Mouse
    Keyboard
    Standard
    Internet Speed
    16000
    Other Info
    I have also used Fedora, Suse, Ubuntu Linux
    And all other Windows from 95 to date except ME

Megz

New Member
Messages
27
#3
EDIT: I did check (although I wasn't really sure what I was looking for) after I posted (and searched the net some more) and it seemed to me that the lines were connected to the motherboard.

I searched and searched and finally figured this out.

1. Go to Control Panel and set it to Classic View.
2. Click on Sound.
3. Go to the Playback or Recording tab (depending on if you're having trouble with mic or speakers)
4. Click on the Speakers/Microphone icon.
5. Go to the Levels tab.
6. Crank up the volume levels.
7. Go to Realtech HD Audio Manager
8. Click the little folder on the side (Connector Settings)
9. Check the box that says 'Disable Front Jack Detection.

Not sure what that did but it's working now. HOORAY.


My Computer

System One

  • CPU
    Intel(R) Core(TM)2 Quad CPU
    Motherboard
    I know it's made by MSI that's about it
    Memory
    4gigs RAM
    Graphics Card(s)
    NVIDIA GeForce 9800 GT
    Sound Card
    *shrugs* RealTek I'd guess
    Monitor(s) Displays
    LCD I'm fairly certain, one corner says HDMonitor and the other says emachines.
    Screen Resolution
    don't think i ever knew
    PSU
    not even sure what this is
    Case
    it's pretty and i can see through one side...it glows!
    Cooling
    I see 2 fans.
    Mouse
    Also a Dell
    Keyboard
    Not sure, it's a Dell
    Internet Speed
    Cable
    Other Info
    I really don't know where to find any of this information. We bought the computer online from a website that builds gaming computers. I know it's pretty and it lets me play WoW at a normal speed. If I wanna sound like I know something about computers I throw out the words "4gig Quad Core!"

Megz

New Member
Messages
27
#4
Ok maybe it's not totally fixed.
Now I can't make my speakers mute while my headset is plugged in. Easy enough to live with, I just turn my speakers off when I'm using the headphones.

But if anyone knows how to fix that it would be nice. :)


My Computer

System One

  • CPU
    Intel(R) Core(TM)2 Quad CPU
    Motherboard
    I know it's made by MSI that's about it
    Memory
    4gigs RAM
    Graphics Card(s)
    NVIDIA GeForce 9800 GT
    Sound Card
    *shrugs* RealTek I'd guess
    Monitor(s) Displays
    LCD I'm fairly certain, one corner says HDMonitor and the other says emachines.
    Screen Resolution
    don't think i ever knew
    PSU
    not even sure what this is
    Case
    it's pretty and i can see through one side...it glows!
    Cooling
    I see 2 fans.
    Mouse
    Also a Dell
    Keyboard
    Not sure, it's a Dell
    Internet Speed
    Cable
    Other Info
    I really don't know where to find any of this information. We bought the computer online from a website that builds gaming computers. I know it's pretty and it lets me play WoW at a normal speed. If I wanna sound like I know something about computers I throw out the words "4gig Quad Core!"

petrossa

Old Geezer
Vista Pro
Messages
48
Location
Menton, Paradise
#5
Ok maybe it's not totally fixed.
Now I can't make my speakers mute while my headset is plugged in. Easy enough to live with, I just turn my speakers off when I'm using the headphones.

But if anyone knows how to fix that it would be nice. :)

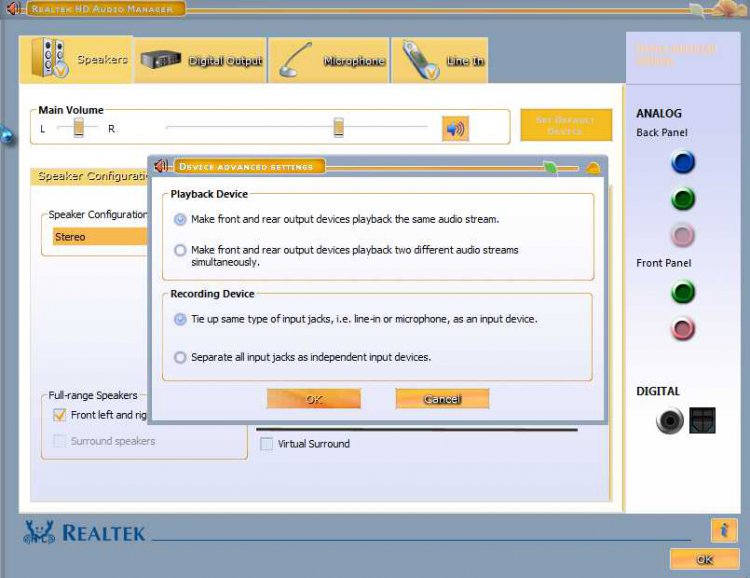

is assume you've setup (see screenshot) properly?


Attachments

My Computer

System One

  • CPU
    amd phenom 9950 BE
    Motherboard
    M2A-VM HDMI
    Memory
    8 gb
    Graphics Card(s)
    Geforce 8600 GTS
    Monitor(s) Displays
    dual 19" HD monitors
    Hard Drives
    2 x wd 500 sata
    1 x Seagate 500 sata
    1 x Seagate 1000 sata
    1 wd 500 ide
    1 raptor 80 gb
    1 usb maxtor 160 gb
    Cooling
    standard
    Mouse
    wirelss MS laser 6000
    Keyboard
    wireless MS
    Internet Speed
    18 mb according to my ISP :)
