How to Use a Scanner with Vista
Synopsis
How to use a Scanner with Vista using Paint and Windows Photo Gallery.
How to Use a Scanner with Vista

information   Information
This function is built-in to Vista for many scanners - I have the HP1110 model (shown here as HP psc 1100) and have no problems with it. The main programs that you are likely to use with the scanner are Paint and Windows Photo Gallery. These can be run by clicking the start orb, typing the appropriate name in the search box and pressing enter/return. The procedures used with each program are described in detail below.


Scan Using Paint

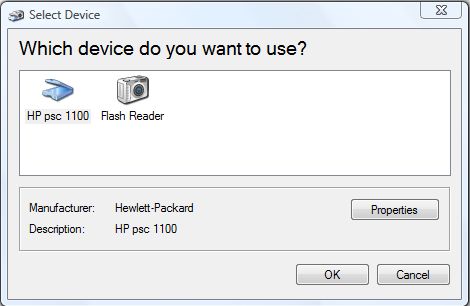

1) To scan using 'Paint', click on 'File' and then 'From Scanner or Camera...'. The following dialogue is displayed.

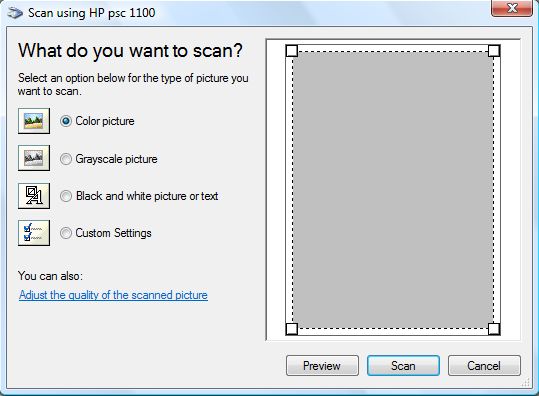

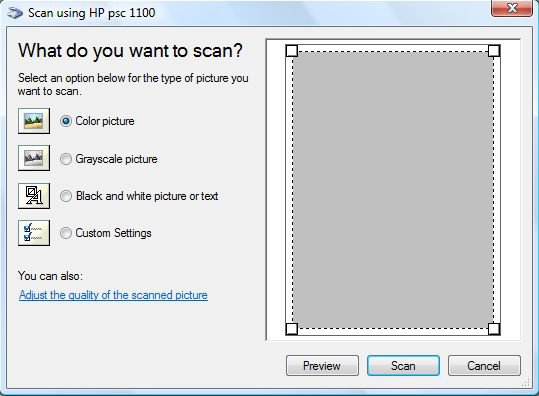

2) Highlight the appropriate device (in my case 'HP psc 1100') and click 'OK'. The following dialogue is displayed.

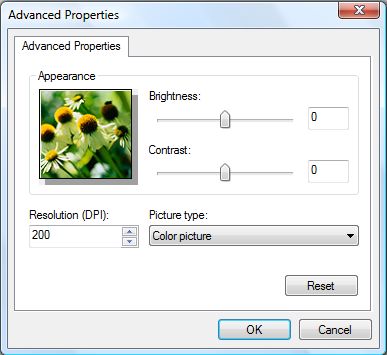

3) You can adjust the properties of the scanner here by selecting the appropriate radio button or by clicking 'Adjust the quality of the scanned picture' in which case the 'Custom Settings' radio button is automatically selected and the following dialogue is displayed. Make the appropriate changes and click 'OK' to return to the previous dialogue, 'What do you want to scan?'. If you click 'Reset', then the settings here are returned to their defaults, which is what is shown here. Note that you will still need to click 'OK' to continue.
4) Which ever setting you choose, you can perform a dummy scan by clicking the button marked 'Preview'. Finally, if you click the button marked 'Scan', the image is scanned and displayed in 'Paint'.

Scan Using Windows Photo Gallery

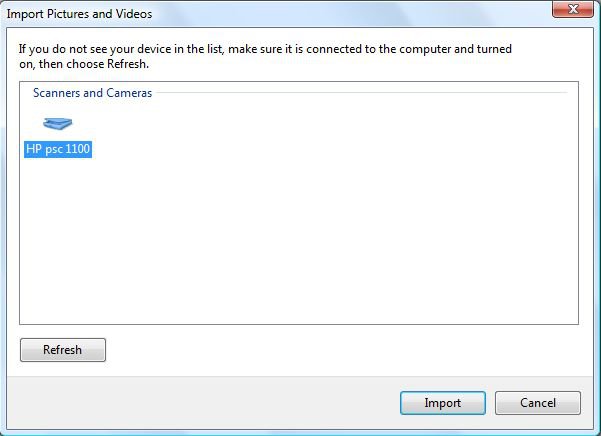

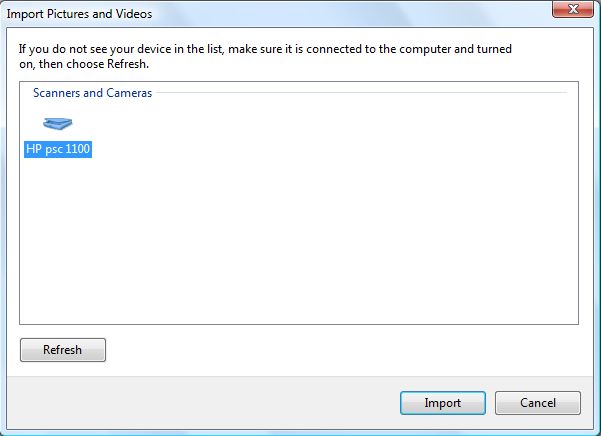

5) To scan using 'Windows Photo Gallery', click 'File' and 'Import from Camera or Scanner...'. The following dialogue is displayed.
6) Click on 'Import' and the following dialogue will be displayed.

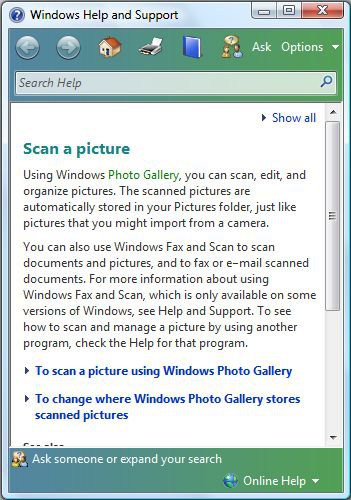

7) If you click on 'See how to scan a picture', the following 'Windows Help and Support' dialogue is displayed where you can find more information.

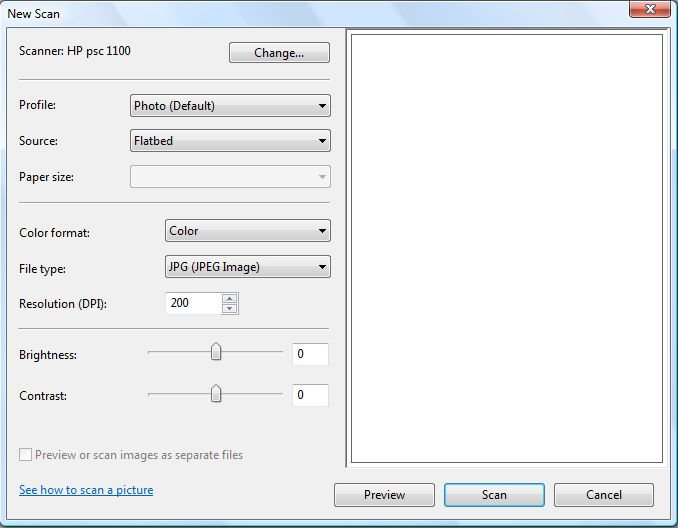

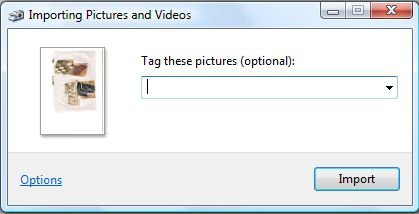

8) Going back to the previous screen 'New Scan', you can adjust the scanner settings here, and perform a dummy scan by clicking 'Preview' and an actual scan by clicking 'Scan' which scans the item and brings up the following dialogue when the scan has been completed.

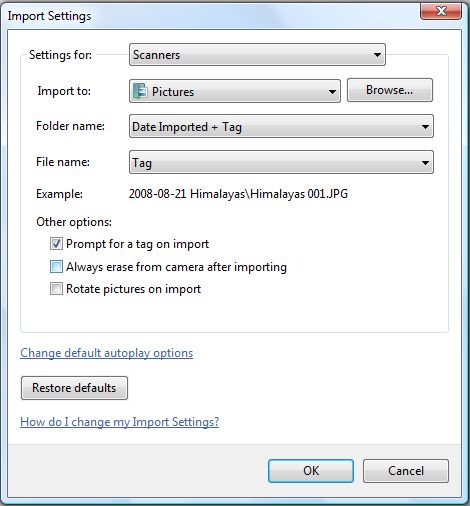

9) Here you can give the scanned image an appropriate name and then by clicking 'Import', the image is imported into 'Windows Photo Gallery' according to the current settings. If you click 'Options' prior to clicking 'Import', you can change the settings in the following dialogue panel.

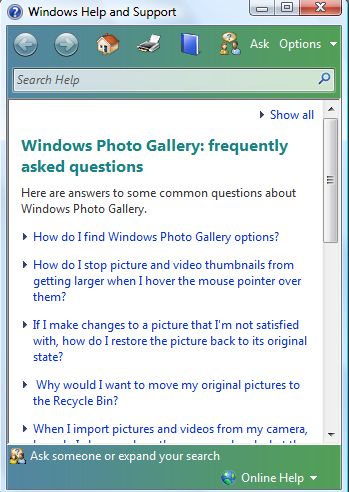

10) Make the appropriate changes here and then click 'OK' to return to the 'Importing Pictures and Videos' dialogue and then click 'Import' to complete the procedure as described above. If you click on 'How do I change my Import Settings?', the following 'Windows Help and Support' dialogue is displayed where you can find more information.
Hopefully, this should help you with scanning images to your PC.
Dwarf

Last edited by a moderator:

Comments

Thank you Dwarf. You saved me from having to contact hp for help.

Two thumbs up.

Edit: I gave you +1 Rep. Cheers

Last edited:
Got any tips for someone who FINALLY (with the help of an I/O card..not USB adaptor) got the printer to work on an HP PSC 500 but no joy on the scanning?
I even managed to open the "old program" but it tells me that the printer driver is not recognized (HP has none for this older model to work with Vista)

Presently I have an alternate tail that goes to my Gateway (windows 98) where I scan.. then download the JPEG to an external harddrive disc and move it over to play on the HP Pavillion a 3060 (vista) Spent an a hour and a half with HP people to no avail.

fingers crossed, Kate

Got any tips for someone who FINALLY (with the help of an I/O card..not USB adaptor) got the printer to work on an HP PSC 500 but no joy on the scanning?
I even managed to open the "old program" but it tells me that the printer driver is not recognized (HP has none for this older model to work with Vista)

Presently I have an alternate tail that goes to my Gateway (windows 98) where I scan.. then download the JPEG to an external harddrive disc and move it over to play on the HP Pavillion a 3060 (vista) Spent an a hour and a half with HP people to no avail.

fingers crossed, Kate
I don't see why you would need an I/O card for this printer, there is basic built-in support in Vista, even if the HP drivers don't cover the product completely.

For scanning, you could try this from HP support:

Scanning
Use one of the following three methods to scan a document.

Method one: Scanning with Windows Photo Gallery


  1. Click Start .
  2. Click All Programs .
  3. Click Windows Photo Gallery .
  4. Click File , and then click Import From Scanner or Camera .
  5. Click Import .
  6. Click Scan .

Method two: Scanning with Windows Fax and Scanning
NOTE: This feature works only with Windows Vista Ultimate, Windows Vista Business, and Windows Vista Enterprise.


  1. Click Start.
  2. Click All Programs .
  3. Click Windows Fax and Scanning .
  4. Click New Scan .
  5. Click File , and then click Scan .

Method three: Scanning with Paint


  1. Click Start.
  2. Click All Programs .
  3. Click Accessories .
  4. Click Paint .
  5. Click File , and then click From Scanner or Camera .
  6. Click Scan .

Does any of the above work?

Oh... I almost missed this reply!:confused: I've been thru the drill that the tutorial shows umpty ump times and when I get to "scanner" it basically says "huh what scanner!"

The I/O card was the only thing the 6 reps/techs could come up with that got the printer working; then they didn't sell it. At least I don't have to throw out my trusty HP 500 PSC (I guess it's just too old like me!) but maybe someday HP or Vista will come up with a real fix.
I've basically given up on scanning from either Paint or Windows Gallery. I do all of that on my rickety old Gateway with '98.
kateNY

Oh... I almost missed this reply!:confused: I've been thru the drill that the tutorial shows umpty ump times and when I get to "scanner" it basically says "huh what scanner!"

The I/O card was the only thing the 6 reps/techs could come up with that got the printer working; then they didn't sell it. At least I don't have to throw out my trusty HP 500 PSC (I guess it's just too old like me!) but maybe someday HP or Vista will come up with a real fix.
I've basically given up on scanning from either Paint or Windows Gallery. I do all of that on my rickety old Gateway with '98.
kateNY
It's strange,though... What I don't undestand is why you needed to install an I/O card to support PSC 500. HP website states that Windows Vista has a basic built-in support for printing and faxing for this machine,you just can't install the full software package, that's what is not supported. Normally, you should plug in the USB cable and it should be detected. What problems did you have and you had to install an I/O card? Are you connecting it with parrallel cable?

BINGO! :D there is no USB this is an old (but still good) all-in-one-copier/printer/scanner from HP; just parallel cable connection; and I actually had to quote back to the HP reps that their site recommends NOT trying to use the adapter because it won't work. :rolleyes: (Also much supported by threads here from unhappy PSC 500 users who bought the adapter only to find they wasted their $$$.)
After an hour and half on the phone I finally got to someone at HP who agreed with their own troubleshoot page that you had to buy/install and I/O card to connect the parallel cable which they did not sell. I bought and installed an I/O card from Startech which did work and they guaranteed they would talk to me anytime without a charge (not necessarily so on "support" from HP.)

Vista Home Premium did not come with fax and scan but you can "add" a scanner or compatible printer and supposedly get the stand single device to work (there are some reports on the Forum that even the newer all-in-one products won't scan!)
Someday I guess when the thing breaks down I will too and I'll have to get a new printer/scanner maybe by then someone will have an all-in-one that works with the Vista workarounds....meanwhile back to the Gateway with Win'98!:eek:
kateNY

awww...that's too bad, I thought it had USB. But still, why extra I/O card? the onboard parrallel slot didn't work or u didn't have one?

Anyway, don't answer all these, no need to since you can't solve your problem :(
I could offer some online help on the matter but I don't wanna mess with your things since you've got them all sorted out for now. (except scanning I guess)

Thank god Windows 7 is coming out soon and there will be a different approach from manufacturers to making drivers and supporting products this time, unlike with Vista.

See you around :)

thanks for the thoughts... I wonder if Vista will let you trade up instead of down to XP.. fat chance huh?
kateNY

thanks for the thoughts... I wonder if Vista will let you trade up instead of down to XP.. fat chance huh?
kateNY
As a matter of fact it does! It's been tested with the Beta leaks...And the official Beta will be launched today...

WOW! how do you get in on this? :party: My husband who bought this beast has been bemoaning not insisting on the XP ever since. Do you know what the changes/fixes will entail?
kateNY
