Solved SONY VAIO LAPTOP PLL FOUND :) yay

nostaw5

"POW" Ur dead
Power User
#1
HELLO FELLOW (sony) LAPTOP OC-ers. trying to overclock? first u need a pll and ur like WTF is a pll... you go on google and r like wot iz dish ****. you look in your laptop and u CANT FRIGGIN FIND IT... GUESS WOT... I FOUND IT. this tutorial is for u...
RECOMMENDED FOR SONY LAPTOPS

first... sony dont like their laptops being oc-ed so they hid settings in bios and put ur pll somewhere u will least expect it. IM running a sony vaio vgn cr14gn and if you want to oc ur sony READ THIS


1. place the laptop UPSIDE DOWN and the battery must face you... ur not touching any components so dont worry bout the battey ****... NOTE that you MAY take out the MEMORY to see more.

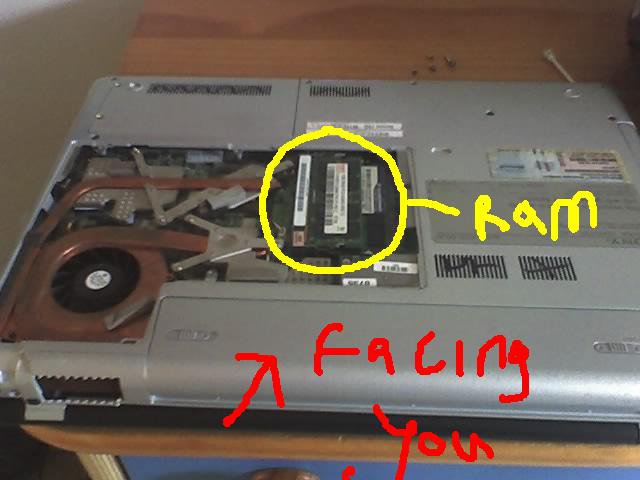

2. OPEN THE CASE which holds the memory as seen in figure 1. HERE 02-05-10_0850.jpg

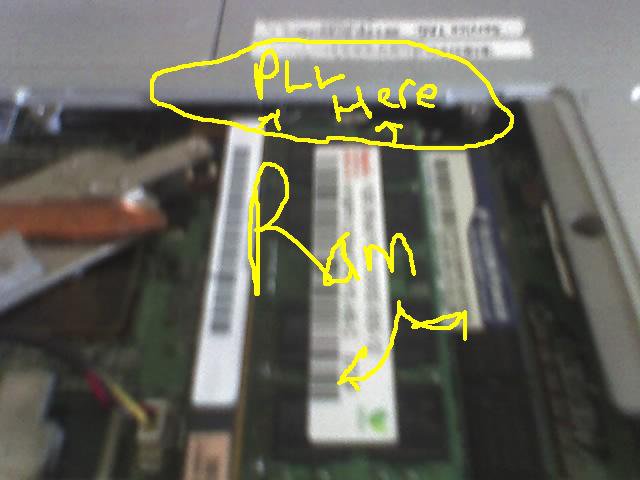

3. LOOK FOR THE RAM slots and look for the gap figure 2. 02-05-10_0851.jpg
as you can see the pll is in that gap...

THATS ABOUT IT write it down... i got mine from 1.80 to 2.10 and runs as smooth as a babys bottom :)


ANY QUESTIONS JUST ASK
