Support Information How to Add a Logo and Support Information to Vista
This will show you how to customize your System properties window by adding a logo and any support information of your choice.
Published by Brink Category: Customization
#1
ByLine
How to Add a Logo and Support Information to Vista
Synopsis
This will show you how to customize your System properties window by adding a logo and any support information of your choice.
How to Add a Logo and Support Information to Vista

information   Information
This will show you how to customize your System properties window by adding a logo and any support information of your choice.
Note   Note
To see this, right click on Computer (Start menu) and click Properties, or open the Control Panel (Classic View) and click on System.

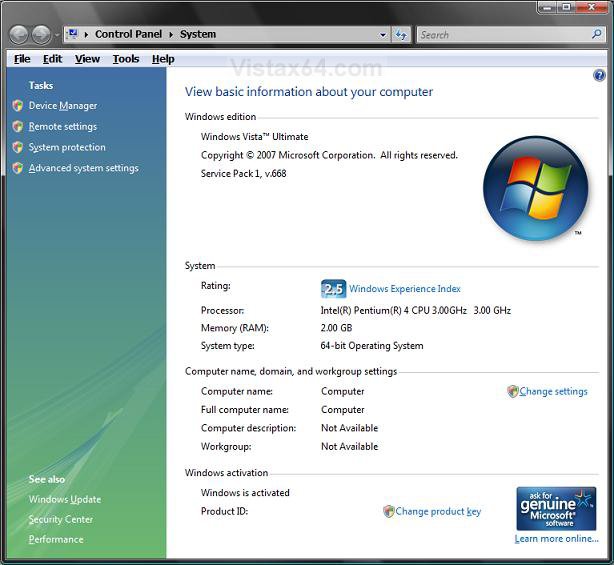

EXAMPLE: Before
NOTE:
See After example at the bottom of the tutorial also.


Here's How:
1. Open the Start Menu.​
2. In the white line (Start Search) area, type regedit and press Enter.​
3. Click on the Continue button in the UAC prompt.​

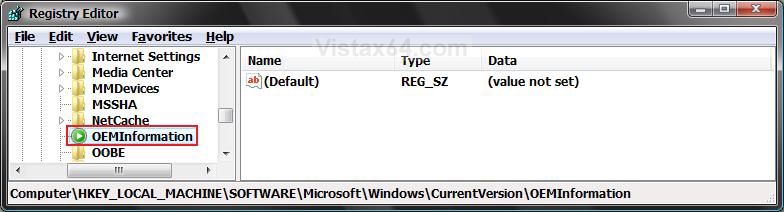

4. In regedit, go to: (See screenshot below step 5A)​
HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\OEMInformation

5. To Add a Logo Image
NOTE: The logo must be a BMP image file and should not be bigger than 120x120 pixels in size. The logo must stay in the location specified in step 5D to be used, so store it somewhere it will not get deleted.​
A) In the right pane, right click on a empty area and click on New and String Value. (See screenshot below)​

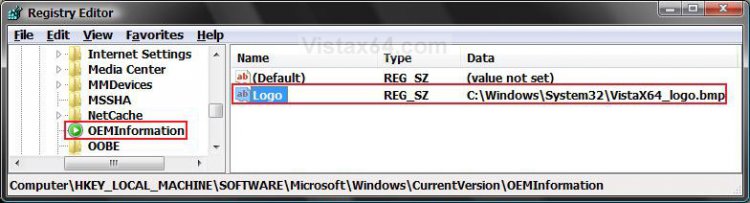

B) Type Logo and press Enter. (See screenshot below)​
NOTE: To undo this, right click on Logo and click on Delete. Click on OK to confirm.​
C) Right click on Logo and click on Modify.​

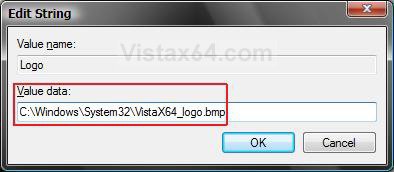

D) Type in the full path of the logo (BMP file) location and click on OK. (See screenshot below)​
EXAMPLE: C:\Windows\System32\VistaX64_logo.bmp

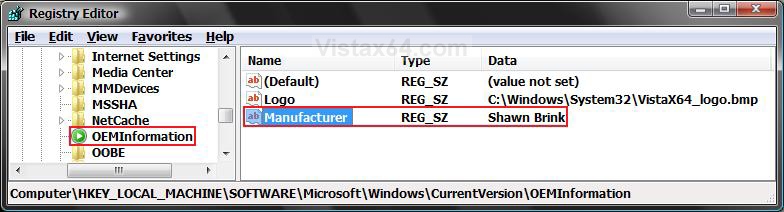

6. To Add a Manufacturer Name
A) In the right pane, right click on a empty area and click on New and String Value. (See screenshot below)​
B) Type Manufacturer and press Enter.​
NOTE: To undo this, right click on Manufacturer and click on Delete. Click on OK to confirm.​
C) Right click on Manufacturer and click on Modify.​

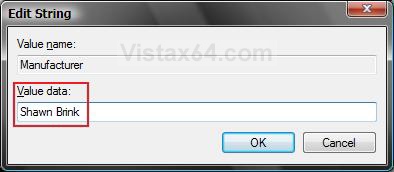

D) Type in a name and click on OK. (See screenshot below)​
EXAMPLE: Shawn Brink

7. To Add Support Hours
A) In the right pane, right click on a empty area and click on New and String Value. (See screenshot below)​

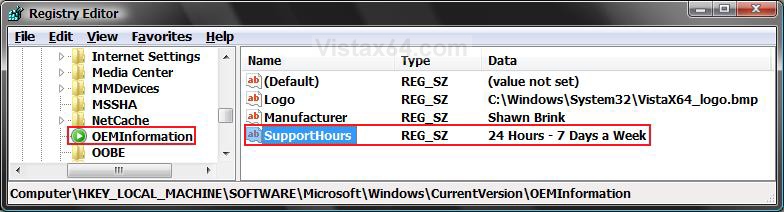

B) Type in SupportHours and press Enter.​
NOTE: To undo this, right click on SupportHours and click on Delete. Click on OK to confirm.​
C) Right click on SupportHours and click on Modify.​

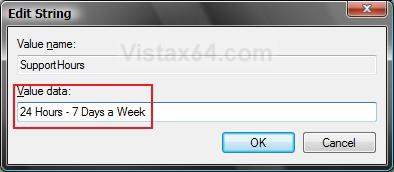

D) Type in your support hours and click on OK. (See screenshot below)​
EXAMPLE: 24 Hours - 7 Days a Week

8. To Add a Support Phone Number
A) In the right pane, right click on a empty area and click on New and String Value. (See screenshot below)​

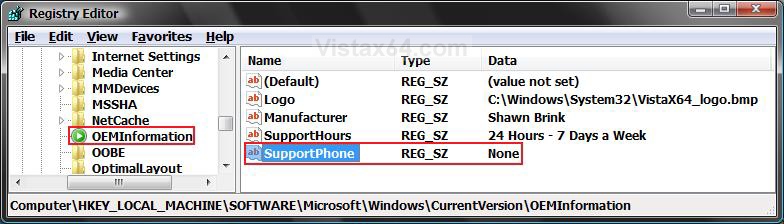

B) Type SupportPhone and press Enter.​
NOTE: To undo this, right click on SupportPhone and click on Delete. Click on OK to confirm.​
C) Right click on SupportPhone and click on Modify.​

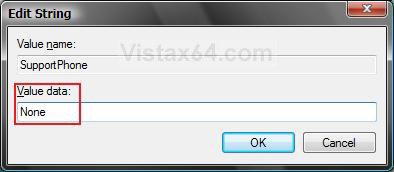

D) Type in a phone number and click on OK. (See screenshot below)​
EXAMPLE: None

9. To Add a Support Website Address
A) In the right pane, right click on a empty area and click on New and String Value. (See screenshot below)​

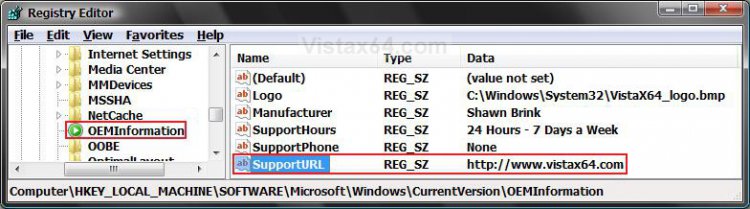

B) Type SupportURL and press Enter.​
NOTE: To undo this, right click on SupportURL and click on Delete. Click on OK to confirm.​
C) Right click on SupportURL and click on Modify.​

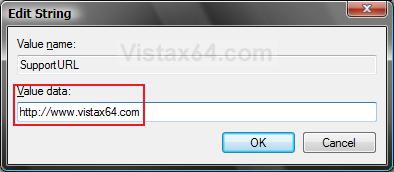

D) Type in the URL web address and click on OK. (See screenshot below)​
NOTE: In System, it will be a URL link that says Online Support, but will go to the address you typed in.​
EXAMPLE: Vista Forums

10. Close Regedit.​

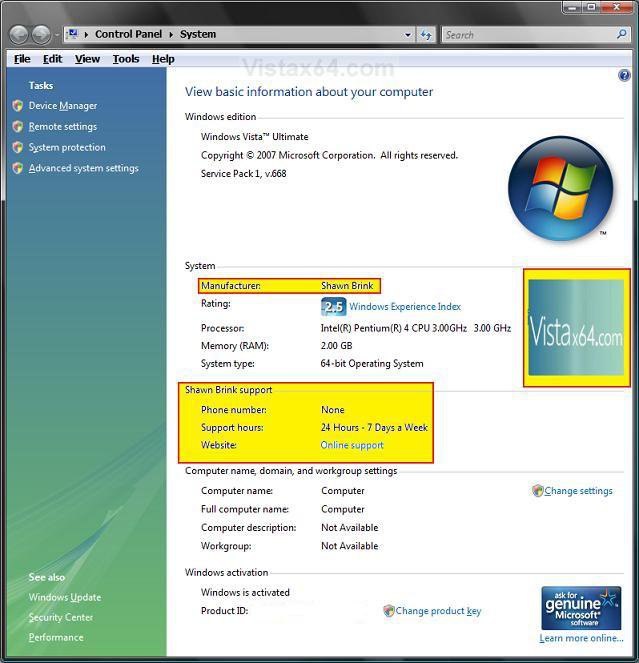

EXAMPLE: After
NOTE:
To see the changes, right click on Computer (Start menu) and click Properties, or open the Control Panel (Classic View) and click on System. If this was open, close it and reopen it to see the changes.

That's it,
Shawn



Last edited:

My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

.Joe

1337 spammer
Vista Guru
Messages
912
Location
127.0.0.1
#2
Another kewl one Shawn :)


My Computer

System One

  • CPU
    Intel Q6600 Quad Core 2.4 Ghz
    Motherboard
    Dell 0TP406
    Memory
    4 X 1 GB DDR2 Kingston 800 Mhz
    Graphics Card(s)
    Nvidia 8800 GT 512 MB
    Monitor(s) Displays
    Dual Dell 22" Widescreen
    Screen Resolution
    3360x1050
    Hard Drives
    320 GB Internal Main
    500 GB USB External
    160 GB USB External
    2TB USB External
    Internet Speed
    DSL 3MB

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#3
Thank you Joe. I'm glad that you like it.

Shanw


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#5
Your welcome Ginza.

Shawn


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD
Messages
9
#6
Thanks for the tutorials!!! I just spent a good portion of my day going through all of the tutorials that you have posted so far and they has improved my computer tremendously!

Keep up the great work,

Tim


My Computer

Brink

Staff member
mvp
Messages
32,202
Location
Oklahoma, USA
#7
Your welcome Tim, and welcome to Vista Forums. :party:

I'm happy to hear that they have helped you.

Shawn


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

Axon

Beacon of Happiness
Vista Pro
Messages
286
Location
Turnhout, BE
#8

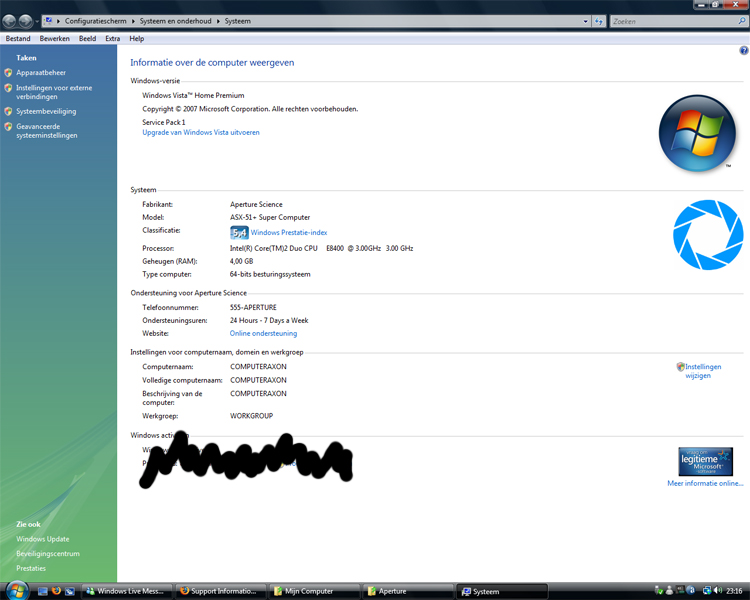

Hehe, since I'm a huge Portal fan, I made this :p



My Computer

System One

  • CPU
    Intel Core 2 Duo E8400
    Motherboard
    ASUS P5B-E Plus
    Memory
    4GB Kingston ValueRAM DDR2-667
    Graphics Card(s)
    ASUS EN8800GT 512
    Sound Card
    Creative X-Fi XtremeGamer
    Monitor(s) Displays
    Packard Bell Maestro 190W
    Screen Resolution
    1440x900 @ 75Hz
    Hard Drives
    WesternDigital 200GB 7200RPM + Iomega Desktop HD 360GB 7200RPM
    PSU
    Xilence Power 600W Gaming Edition
    Case
    Coolermaster Centurion 534 Black
    Cooling
    Standard Coolermaster Case Fans + Standard Intel CPU Fan.
    Mouse
    Razer Copperhead Tempest Blue
    Keyboard
    Logitech G15 V1
    Internet Speed
    100.0 Mbps

fieseler

Vista Guru
Messages
543
Location
Leicester
#9

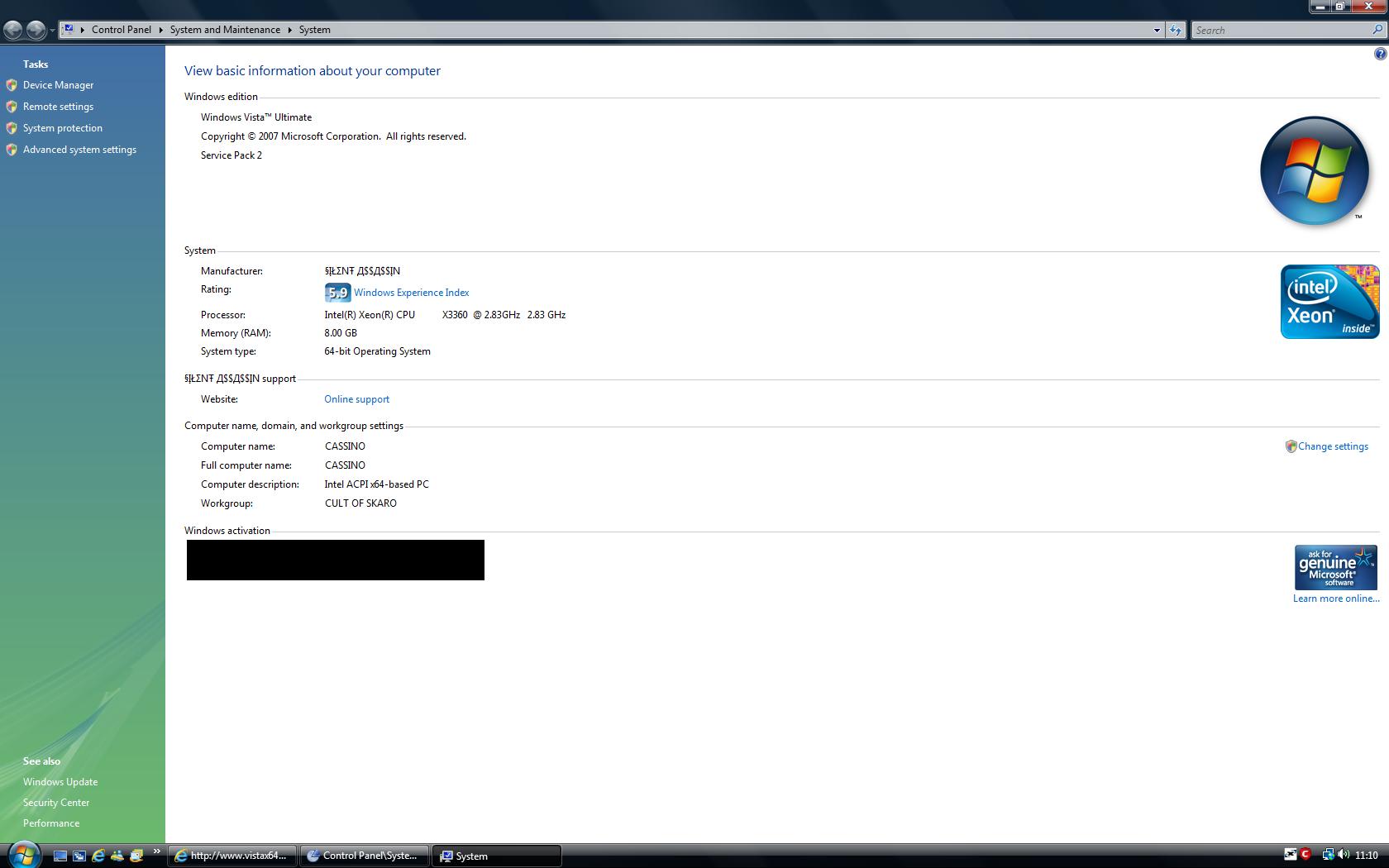

This is kinda cool. I've just added my online name, a link to vistax64 :D and intel logo for my processor
