Vista ISO - Download and Create Installation DVD or USB How to Download a Vista ISO and Create an Installation DVD or USB
This tutorial will show you how to create a Vista ISO file, and how to create a Vista installation DVD or USB from the ISO file.
Published by Ztruker Category: Installation & Upgrade
#1
ByLine
How to Download a Vista ISO and Create an Installation DVD or USB
Synopsis
This tutorial will show you how to create a Vista ISO file, and how to create a Vista installation DVD or USB from the ISO file.
How to Download a Vista ISO and Create an Installation DVD or USB

information   Information
Downloads are available for the 32 (X86) and 64 bit (X64) versions of Vista Ultimate only, in English, French and German, but if, during the install, you do not enter the product key when initially prompted for it then you will be asked to select the version of Vista you want to install. It can be any of these four:
Windows Vista Home Basic
Windows Vista Home Premium
Windows Vista Business
Windows Vista Ultimate
warning   Warning
You must have a valid installation key, which should be on the COA sticker on the computer, to activate the installation once it completes.





STEP ONE
To Download the Vista Setup Files



warning   Warning
The Vista downloads listed below seem to come and go. Right now, 10/12/2014 at 3:39PM EST they are available. I don't know of any other location they are legally available from, sorry.

1. Downloaded the Vista X64 or X86 setup files.​
download
X64 (64 bit):
install.wim​
boot.wim​
X14-63453.exe​
X86 (32 bit):
install.wim​
boot.wim​
X14-63452.exe​

Note   Note
Both X14-63453.exe and X14-63452.exe will be downloaded as MicrosoftInstaller.exe. For consistency, please rename MicrosoftInstaller.exe to X14-63453.exe or X14-63452.exe, depending on which you downloaded.
warning   Warning
Wait for all downloads to complete before continuing
2. Double click (or right click and Open) on the downloaded X14-63453.exe or X14-63452.exe. It extracts all the files into a Vista sub-folder.​

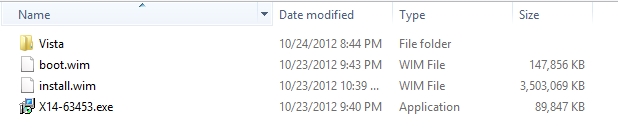

3. If they are not already there, copy boot.wim and install.wim into the Vista\sources folder that is created when you doubled clicked on the .exe file in step 2.
4. Download the Windows Bootable Image Creator zip file, WBICreator.zip.​
download
5. Extract the files in WBICreator.zip to a folder.​




STEP TWO
To Create the Vista ISO File


warning   Warning
You can download the files on any computer but you must be running on a 64bit (X64) system to create a 64Bit install DVD or flash drive

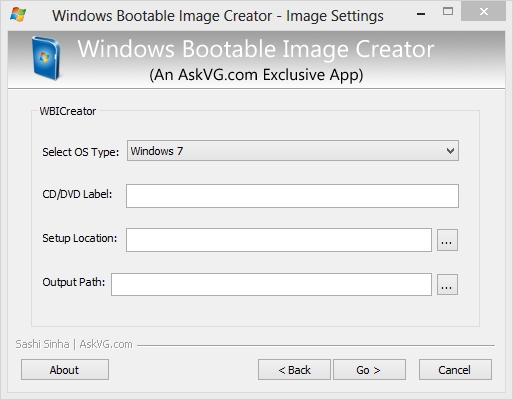

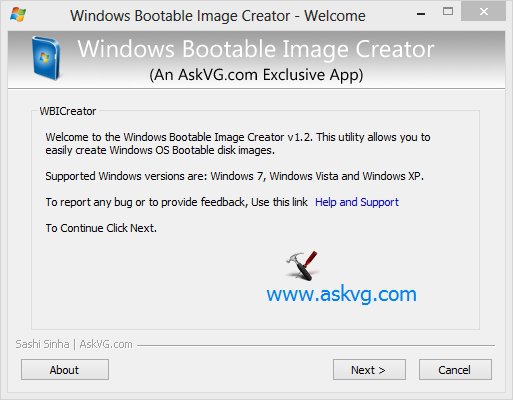

6. Open the folder and double click (or right click and Open) WBICreator.exe
7. Click Next

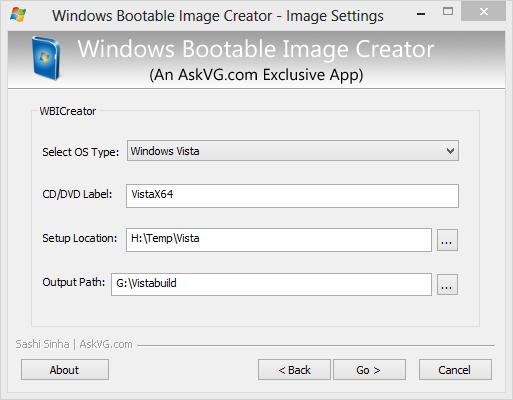

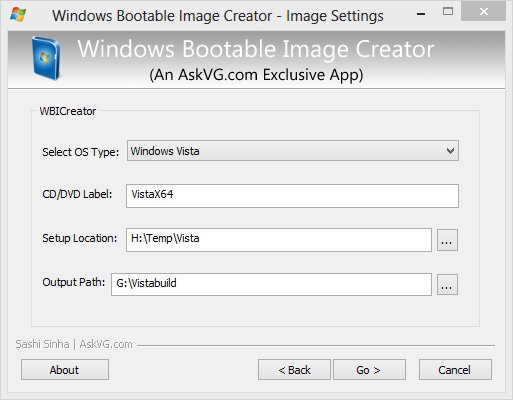

8. Select OS Type: Windows Vista (all the way to the bottom)​
9. CD/DVD Label: VistaX64 or VistaX86
10. Setup Location: The Vista folder created when you double clicked on X14-63453.exe or X14-63452.exe.​
11. Output Path: Somewhere with enough free space to hold the .iso file that will be created (X64 = 3,837,112KB, X86 = 3,013,816KB).​

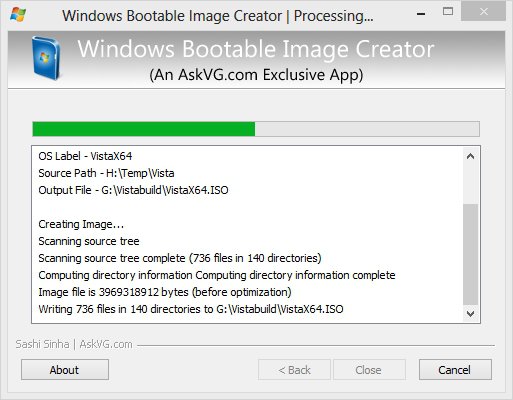

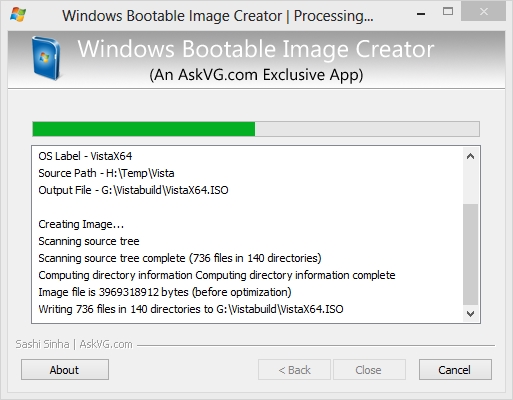

12. Click GO. When done a VistaX64.iso or VistaX86.iso file will be created in the Output Path you chose.​





STEP THREE
To Create Vista Installation DVD or USB Flash Drive with ISO File

13. You can use the generated .iso to create a Vista Install DVD.​
13a. Download and install and run ImgBurn.​

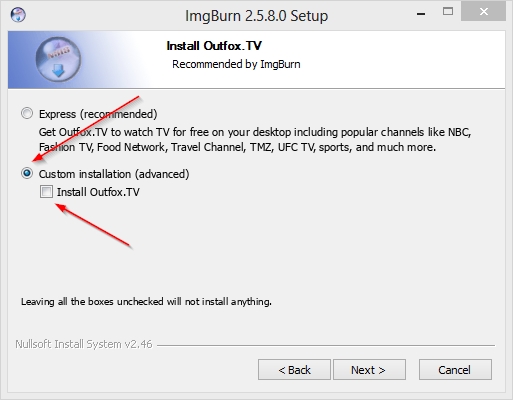

13b. Make sure you deselect anything other than ImgBurn during the install by always taking the Custom choice.​

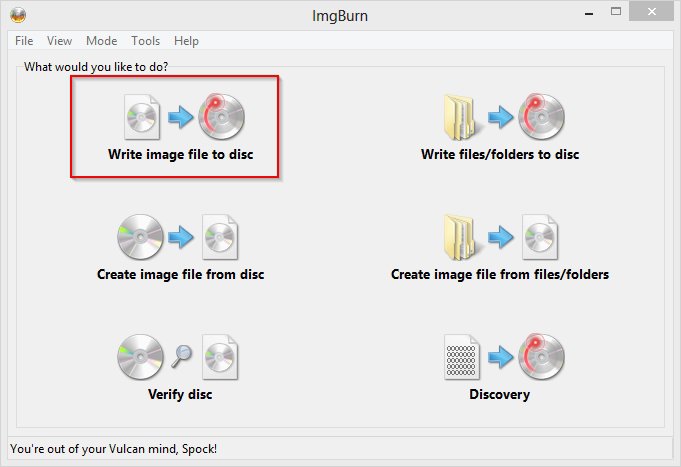

13c. Click on Write image file to disc

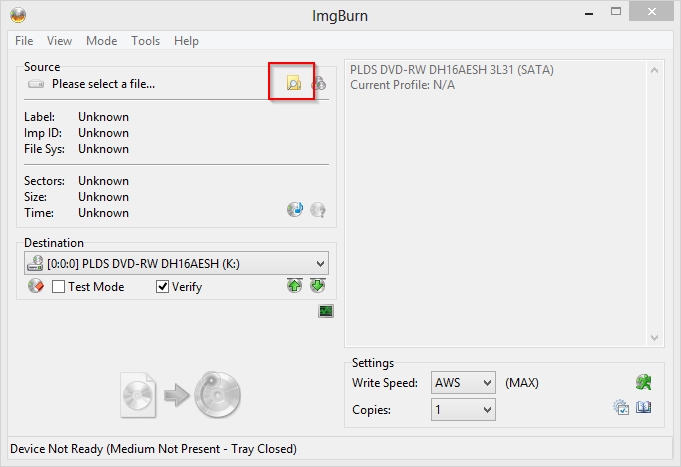

13d. Click the Browse for file button and selecta the ISO file you just created.​

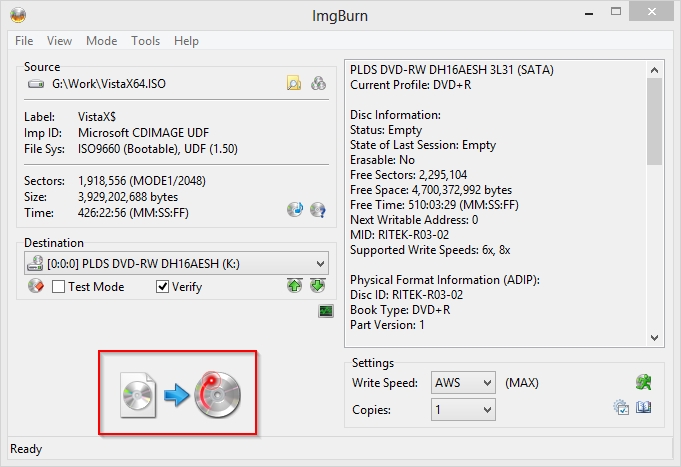

13e. Click Write. A nice little tune will play when the DVD create completes.​
14. You can also create a bootable USB Flash drive (4GB or larger) to install Vista from.​
14a. Download and run Universal USB Installer Easy as 1 2 3

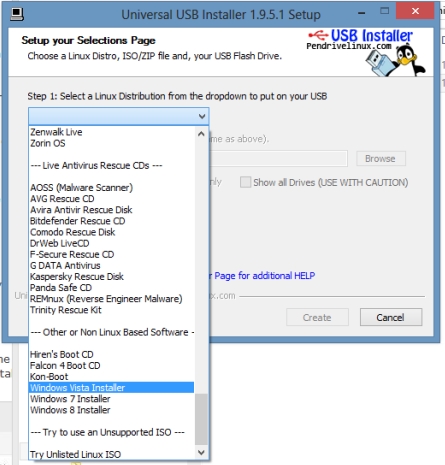

14b. Select Vista from the first drop down list, all the way to the bottom​

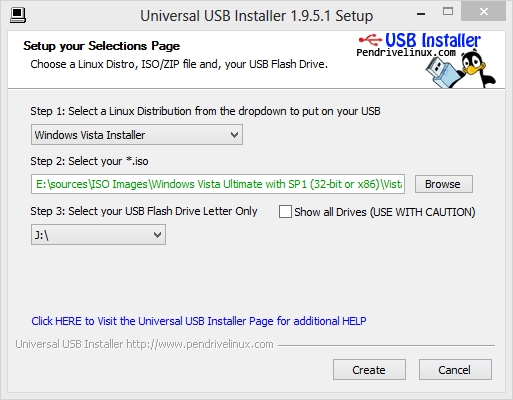

14c. Select the VistaX64.iso or VistaX86 .iso file​
14d. Select your USB flash drive​
14e. Click Create​


information   Information
I created a X86 flash drive and used it to install a clean copy of Vista Home Basic on my HP DV2200 Laptop. Worked great using the key on the COA sticker of the laptop.

Remember to activate after the install has completed.

Note: You may need to download drivers for the computer from the manufacturers web site so I would suggest getting the Network (LAN and Wireless) and video/VGA drivers ahead of time so you can install them as soon as you finish installing Vista.




Last edited by a moderator:

My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up

Brink

Staff member
mvp
#2
Great job Rich. :)


My Computers

System One System Two

  • Show second system?
    Yes
    Operating System
    Windows 10 Pro 64-bit
    Manufacturer/Model
    Custom
    CPU
    Intel i7-8700K 5 GHz
    Motherboard
    ASUS Maximus X Code Z370
    Memory
    16 GB (8GBx2) G.SKILL TridentZ DDR4 3200 MHz
    Graphics Card(s)
    ASUS ROG-STRIX-GTX1080TI-O11G-GAMING
    Sound Card
    Integrated
    Monitor(s) Displays
    3 x 27" Asus VE278Q
    Screen Resolution
    1920x1080
    Hard Drives
    250GB Samsung 960 EVO M.2,
    256GB OCZ Vector,
    6TB WD Black WD6001FZWX
    PSU
    Seasonic Prime Titanium 850W
    Case
    Corsair Air 740
    Cooling
    Corsair Hydro H115i
    Mouse
    Logitech MX Master
    Keyboard
    Logitech wireless K800
    Internet Speed
    300 Mb/s Download and 30 Mb/s Upload
    Other Info
    Logitech Z625 speaker system,
    Creative F200 webcam,
    HP Color LaserJet Pro MFP M477fdn,
    Linksys EA9500 router,
    Arris SB6190 cable modem,
    APC SMART-UPS RT 1000 XL,
    Lumia 1520 phone
  • Operating System
    Windows 10 Pro
    Manufacturer/Model
    HP Envy Y0F94AV
    CPU
    i7-7500U @ 2.70 GHz
    Memory
    16 GB DDR4-2133
    Graphics card(s)
    NVIDIA GeForce 940MX
    Sound Card
    Conexant ISST Audio
    Monitor(s) Displays
    17.3" UHD IPS touch
    Screen Resolution
    3480 x 2160
    Hard Drives
    512 GB M.2 SSD

richc46

Staff member
Vista Guru
Gold Member
#3
I will second that. Information that is asked for constantly at the Forum.


My Computer

System One

  • Manufacturer/Model
    Dell XPS420
    Memory
    6 gig
    Graphics Card(s)
    ATI Radeon HD3650 256 MB
    Sound Card
    Intergrated 7.1 Channel Audio
    Monitor(s) Displays
    Dell SP2009W 20 inch Flat Panel w Webcam
    Hard Drives
    640 gb
    Cooling
    Fan
    Mouse
    Dell USB 4 button optical
    Keyboard
    Dell USB
    Other Info
    DSL provided by ATT

ilikefree

Vista Guru
Gold Member
#4
I have a 32bit Vista .iso made by SIW2 that has both service packs and all Windows updates up to 11-10-13
I will give the link to interested parties who contact me and not post it publicly


My Computer

System One

  • Manufacturer/Model
    Lenovo Thinkpad T400
    CPU
    Intel Mobile Core 2 Duo P8700 @ 2.53GHz
    Motherboard
    LENOVO 64734VM
    Memory
    2.00GB Single-Channel DDR3 @ 531MHz
    Graphics Card(s)
    Intel Mobile Intel 4 Series Express Chipset Family
    Sound Card
    Conexant 20561 SmartAudio HD
    Monitor(s) Displays
    15 inch
    Screen Resolution
    1280 x 800
    Hard Drives
    1x 180GB Intel 530 series SSD
    1 x 120GB Hitachi 5400rmp
    1 x 650GB Western Digital Elements 5400rpm
    1x 1Tb Western Digital Elements 5400rpm
    Internet Speed
    Medium for New Zealand
    Other Info
    Weakest part of my computer is the graphics chipset.
    Only ever used a laptop.
    Also use USB Freeview TV Card
    Lenovo Docking Station
    External Speakers
    Other bits a pieces as needed
#5
Hello, I had a HP a6700f desktop with an OEM version of Vista, and the motherboard failed. So I ordered a different motherboard (ASRock), new memory, a new case, and a better CPU. I retained the original HDD with the OEM copy of Vista. With everything installed, I tried booting up on the new motherboard, but it would blue-screen. I then changed the HDD from default ACHI to IDE mode, and it booted up. All I had to do was re-enter the product key, and it activated perfectly. Now, my problem is that I can't access HP's recovery options to restore the PC to the original condition. If I create a Vista image using the method above, can I use the Vista x64 OEM product key from my HP a6700f, or am I better off purchasing a new copy of Windows?


My Computer

System One

  • CPU
    AMD Phenom x4 1.8 GHz
    Memory
    4GB
    Graphics Card(s)
    Nvidia 9500GT
    Monitor(s) Displays
    LG 22"
    Screen Resolution
    1920x1080
#6
I've done this several time using the OEM Vista key and it's worked fine.


My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up

richc46

Staff member
Vista Guru
Gold Member
#7
A new motherboard usually means a new computer by way of reinstallation standards. The key may appear to work for a short time, but then you might begin to receive notices that the key is not valid. Does not hurt to try, however.


My Computer

System One

  • Manufacturer/Model
    Dell XPS420
    Memory
    6 gig
    Graphics Card(s)
    ATI Radeon HD3650 256 MB
    Sound Card
    Intergrated 7.1 Channel Audio
    Monitor(s) Displays
    Dell SP2009W 20 inch Flat Panel w Webcam
    Hard Drives
    640 gb
    Cooling
    Fan
    Mouse
    Dell USB 4 button optical
    Keyboard
    Dell USB
    Other Info
    DSL provided by ATT
#8
Thanks everyone, this worked perfectly, and the activation was successful. No phone calls needed. Hopefully it will last! I'd rather have Vista than Windows 7 or 8.


My Computer

System One

  • CPU
    AMD Phenom x4 1.8 GHz
    Memory
    4GB
    Graphics Card(s)
    Nvidia 9500GT
    Monitor(s) Displays
    LG 22"
    Screen Resolution
    1920x1080
#9
I admit I am not totally versed in installing and re-installing OS's as I don't do it that often. But I have been totally confused as to why you need to create an ISO and then burn the ISO to a DVD. Seems like you are just putting the files into one format, and then undoing it. As it turns out, you don't have to do that. If you go to IMGBRN website, and look under help, they have the topic of exactly how to create a Vista bootable install disk. You don't have to create an iso. You just download the exe and two .wim files from digital river (the files given in the beginning of this thread) and then run the exe file to create the vista directory. Then you use IMGBRN exactly as they say in the help topic to create the bootable dvd from the vista directory. I did this today and it works great. This saves you some steps as it is not necessary to create the .iso.


My Computer

System One

  • Manufacturer/Model
    hp pavilion dv6500 laptop
    CPU
    AMD
    Graphics Card(s)
    nvidia
#10
Thanks Spacecon, I'll check that out. Would simplify things for sure.


My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up
#11
Ah, that is more work than creating the .iso. Also, you need the .iso to create a bootable flash drive which is my preferred install method.

I'll add a pointer to the forum guide for anyone who wants to burn a DVD.

Thanks again.


My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up
#12
Ztruker: I was trying to create a bootable vista64 install disk in a similar fashion to what you are describing (this was before I found your link and the help file on IMGBRN help website). I downloaded the exe and two wim files, and successfully created an .iso and then used the Microsoft Windows 7 USB DVD download tool to create a bootable install DVD. But when I tried to perform the install, the installer only gave me the option for installation in French. This surprised me since the files appeared to be the English version. It was after this happened that I went to the help-IMGBRN guides (from within IMGBRN) and found the guide on "How to create a Windows Vista bootable installation disk". I used that method and the resulting DVD came out fine in English. Any idea what went wrong? Have you run into this problem before when trying to use the resulting DVD? One thing I should mention is that I created the dvd on a W7 64 bit and then ran the install on the WVista machine. I now have a working install DVD that I created using the IMGBRN method, but I would like to understand if possible why burning the .iso to dvd did not work for me. I totally do not understand how the install came out in French, as I don't even see anything French on the install disk. Thanks.


My Computer

System One

  • Manufacturer/Model
    hp pavilion dv6500 laptop
    CPU
    AMD
    Graphics Card(s)
    nvidia
#13

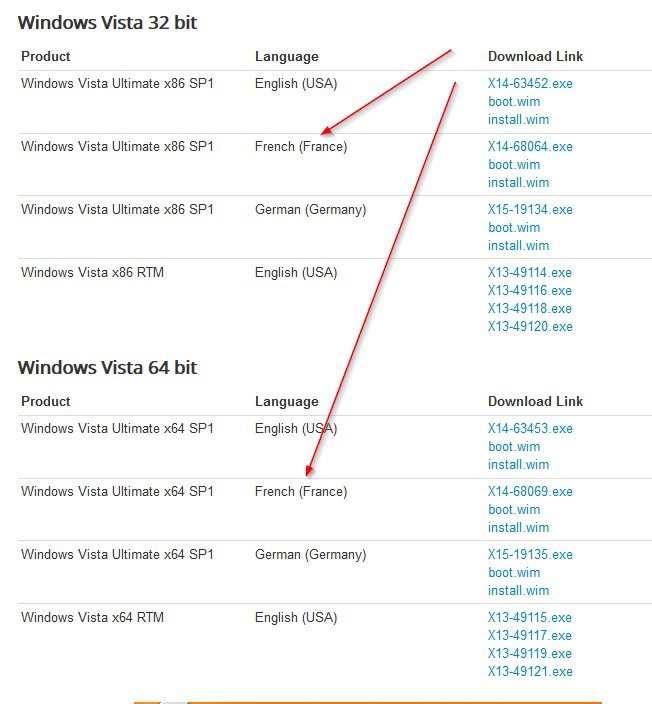

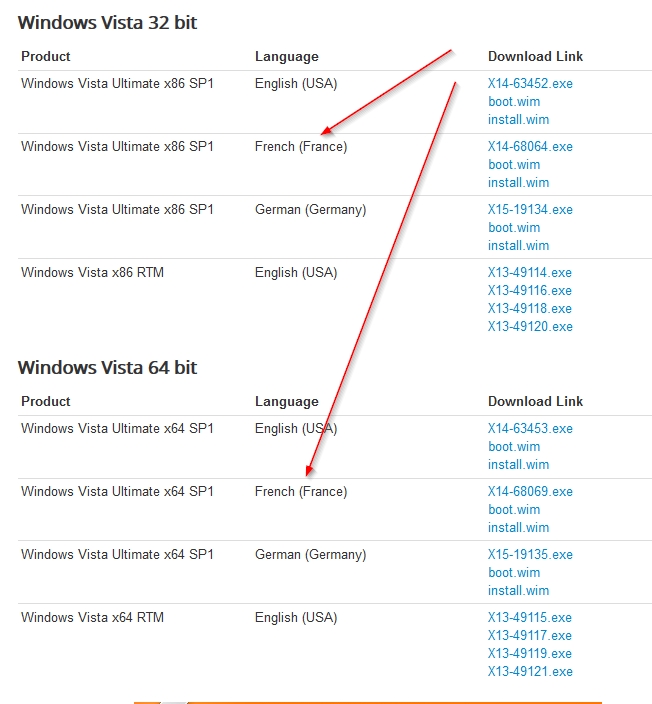

Yup, you downloaded the French version.



My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up
#14
Ztruker, There is no way I downloaded the wrong version, I made very sure of that. It is X14-63453, I still have it. And when I unpack it (run the exe file) it even shows English and nothing I can see is French. Plus, I unpacked it on a W7 64 bit machine and after unpacking, it started to install (as is usual prior to stopping the installation) and it was installing properly in English. But when I made an iso out of it, and then used the Microsoft Windows 7 USB DVD download tool to create a bootable install DVD, and then took that DVD to the Vista machine that I wanted to install on: First, it started booting from the DVD in English, but when it got to the Vista installation, there was only French. I have no idea why and that is what I am trying to figure out. When I used the method they gave on the IMGBRN help guide, the install came up in English. I even looked at the files on the dvd that came up in French, and they look the same as the ones (same names, size, etc.) that came up on the other dvd in English as far as I can tell. I am thinking that either the Microsoft Windows 7 USB DVD download tool didn't do exactly what I wanted (actually, it is supposed to work only for Windows 7 but I have been told it will work for a Vista install, but maybe it really doesn't). I mean maybe it was doing an English install but the instructions were in French? I don't know French, so it is hard for me to tell exactly what it was saying to me. Or perhaps the archive needs to be told to be in English and if not it defaults to French? I don't really understand all the setup info they give in the IMGBRN guide, but it did work. Oh well, another unsolved mystery...but all is well that ends well I guess. I would just really like to understand this. These are the kind of things that keep me up at night! It is amazing what you run into.

To be clear about your method....after you created the dvd or usb per your instructions, you did actually try the resulting bootable DVD or USB and it did install in English? Or have you not yet used it to try an install? I am just asking to make sure yours won't come up in French as mine did. The only obvious thing I did different from your method was to use a different program to burn the iso to dvd or usb (I used the Microsoft Windows 7 DVD/USB tool). Thanks for the help.


My Computer

System One

  • Manufacturer/Model
    hp pavilion dv6500 laptop
    CPU
    AMD
    Graphics Card(s)
    nvidia
#15
I didn't create a DVD, I created a USB flash drive, and yes, I've installed at least 5 times using it.

My tutorial does not mention the Microsoft Windows 7 USB DVD download tool. It says to use ImgBurn.

I'll create a DVD using ImgBurn then instal it under Oracle Virtual Box to see how it goes. I'll post results later.


My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up
#16
What about install.wim and boot.wim. Any chance you got the wrong one of those?

Mine are:



My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up
#17
Just went through the install from a DVD I just burned using ImgBurn. It was all in English.


My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up
#18
Ztruker: You are correct, thank you! It was my fault! Thank you, thank you, and I apologize. I went back and did a double check on all my files. I had two sets of files. The first one was the one that came out in French, so I downloaded the second set from link of another source before making the second DVD. Everything looked the same to me after running the .exe file for both sets of files. But I did a file compare using a compare utility and found that the two install.wim files were different. Turns out the second set (from which I eventually got a good DVD from) was correct. The first set, I had the correct .exe file and boot.wim file, but the install.wim file (which is the biggie) was not the correct version. I AM VERY SORRY for taking up your time, although for me personally it was not wasted. As you can tell, I am no expert at this, and as careful as I try to be, there are just so many things that can go wrong, it is almost impossible to tell exactly which thing was the problem. It was important to me to find out what exactly did go wrong so that I could learn from it. I had thought it might be something with the burning process. It would be nice if the files names gave a hint of the language and version (32 bit or 64 bit) rather than all having the same name, but I am not making excuses, it was my fault. I went back to the download source, and it was definitely my fault, I just clicked on the wrong thing, even though I was trying very hard to be careful. Well, now at least I understand what went wrong, and I feel better that the "process" works as explained by you. Thank you for being patient with me and helping to understand what went wrong. You definitely went beyond what many others would do, and without that, I might not have ever found out what went wrong. So now I am gaining more confidence using the available tools. Thanks again!


My Computer

System One

  • Manufacturer/Model
    hp pavilion dv6500 laptop
    CPU
    AMD
    Graphics Card(s)
    nvidia
#19
No problem, it was fun to install Vista Ultimate X64 under Oracle Virtual Box. This is the first time I've had a computer good enough to install a 64bit client.

I'm just glad you figured it out.

Take care.


My Computer

System One

  • Manufacturer/Model
    Lenovo IdeaCenter K450
    CPU
    Intel(R) Core(TM) i7-4770 CPU @ 3.40GHz, 3401 Mhz, 4 Core(s)
    Memory
    16GB
    Graphics Card(s)
    Intel(R) HD Graphics 4600
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    HP w2207
    Screen Resolution
    1680 x 1050 x 59 hertz
    Hard Drives
    Samsung SSD 840 EVO 250GB
    Seagate ST2000NM001 2TB
    Seagate ST31500341AS 1.5TB
    PSU
    500W
    Mouse
    Lenovo USB
    Keyboard
    Dell USB
    Internet Speed
    50MB Down, 10MB Up
#20
Hello...I have a system...a HP Pavilion that I am waiting to see if the owner has a DVD that I can use to repair the OS. If he does not have said disk could I use the above mentioned files to create a DVD that I could do an in place system repair with? The system apparently has had many issues with Windows Update and any attempts I have made to fix it have failed.


My Computer
