How to Create and Setup a Signature in Windows Mail
Synopsis
This will show you how to create and setup a Signature in Windows Mail. Signatures can contain your name, e‑mail address, phone number, and any other information that you want to include at the bottom of your e‑mail messages.
How to Create and Setup a Signature in Windows Mail


information   Information
You can use the Signatures tab in the Windows Mail Options dialog box to create and modify custom signatures for your messages. Signatures can contain your name, e‑mail address, phone number, and any other information that you want to include at the bottom of your e‑mail messages.
Tip   Tip
To backup everything in Windows Mail, see the How to Backup and Reset Windows Mail section here: How to Fix Most Problems with Vista's "Windows Mail"
warning   Warning

  • When your signature is a HTML file and the original message is in plain text vs an HTML message, you willl need to click on Tools and Send in Windows Mail. Next, uncheck the Reply to messages using the format they were sent box and click on OK. This will allow your HTML signature to be added to a HTML message when replying to or forwarding a plain text message.
  • There is only a 4 kb size limit on a signature file. Anything bigger and you will get this error message:

    Warning: Your signature file is too large.






Here's How:
1. Open Windows Mail.​

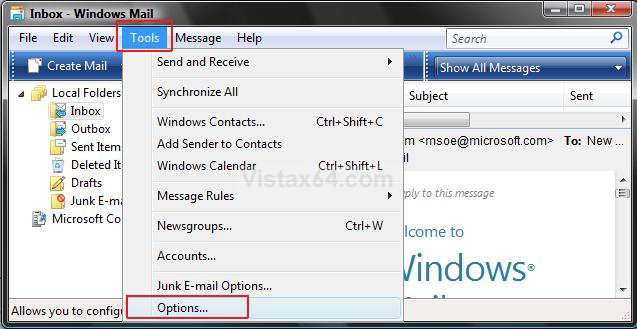

2. Click on Tools and then click Options. (See screenshot below)​

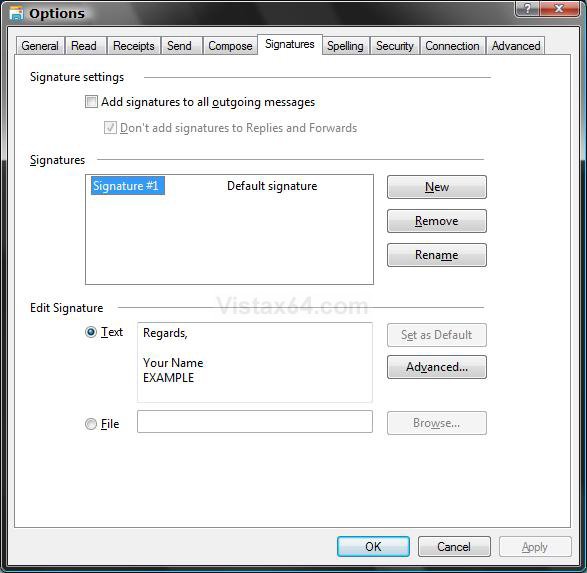

3. Click the Signatures tab. (See screenshot below)​
4. To Use Signatures on All E‑mail Messages
A) Check Add signatures to all outgoing messages. (See screenshot below)​
NOTE: This will automatically include the default signature in all of your messages.
B) To Include Replies and Forwards - Uncheck Don't add signatures to Replies and Forwards.​

5. Click on New.​

6. To Create a Simple Text Signature
A) Dot Text under the Edit Signature section. (See screenshot above)​
B) Type your signature in the Text box.​
C) Click on Apply.​
D) Give this signature a name by highlighting the signature under Signatures and click on Rename.​
E) Type in a name and press Enter.​
F) Go to step 8.​

7. To Create and Add a File Based Signature
Note   Note
If you want to create a signature containing custom fonts, links, or images; design the signature using Windows Mail. For an alternative way to add a .htm file as your signature, see: Windows Mail Signatures
warning   Warning
The htm signature file cannot be over 4KB in size. Only the code between the body tags is used in a signature. If you are going to include a image file in the signature, then you may want to link the image file from a online image hosting service, like the free ImageShack or Photobucket instead of from your computer.
Note   Note
The 4KB size is easily exceeded when Microsoft Word is used to generate the html code. The style section of a Word htm file alone can exceed 4KB. It would be best to use Windows Mail and Notepad instead to create the htm file.
Tip   Tip
If you keep getting a red X image marker when you attach the image from your computer, then double check to make sure that the link is correct. For example:
Tip   Tip

src="C:\Users\Ryan\Documents\Gunn & Associates\Signature\signature.htm.htm"​
This link has & and .htm.htm.​
<IMG src="http://IMAGE.jpg"> is not a correct link.​
You could also use a online image hosting service like ImageShack or Photobucket to store the image to link to instead of attaching the image from your computer.​
A) Click on Create Mail in Windows Mail. (See screenshot below step 2)​
B) Leave the address fields blank, and add what you want for the signature in the body. (See screenshot below)​
NOTE: It is best to create the signature from scratch here and not Copy and Paste it from another source to avoid problems with it not working.​

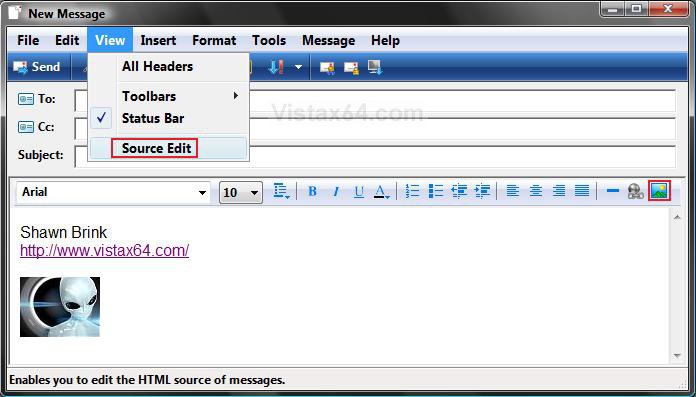

C) When done, click on View, and click on Source Edit to check it. (See screenshot below)​
NOTE: You can click on Insert and Picture to insert a image file from your computer, or link the image file from somewhere like ImageShack to save space in the signature file.

D) Click on the Source button at the bottom. (See screenshot below)​

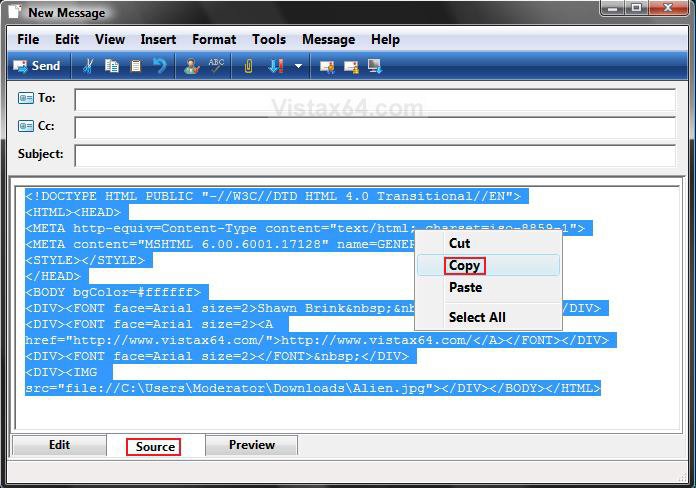

E) Highlight the source code, then right click on it and click Copy. (See screenshot below)​

F) Open Notepad.​
NOTE: To open Notepad, open the Start menu, then in the white line (Start Search) area, type notepad.exe and press Enter.​

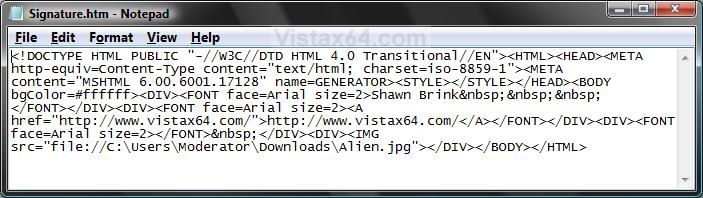

G) Right click inside of notepad and click Paste. (See screenshot below)​
H) Click on File on the menu bar, then click on Save As.​

I) Navigate to where you want to save the signature file. (See screenshot below)​

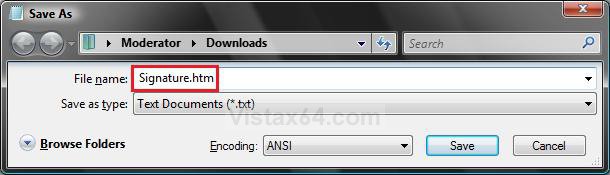

J) Type in a name for the signature file with a .htm file extension, then click Save to save it to the selected location. (See screenshot below)​
NOTE: For example, type: Signature.htm

K) Dot File under the Edit Signature section, then click the Browse button. (See screenshot below step 5)​

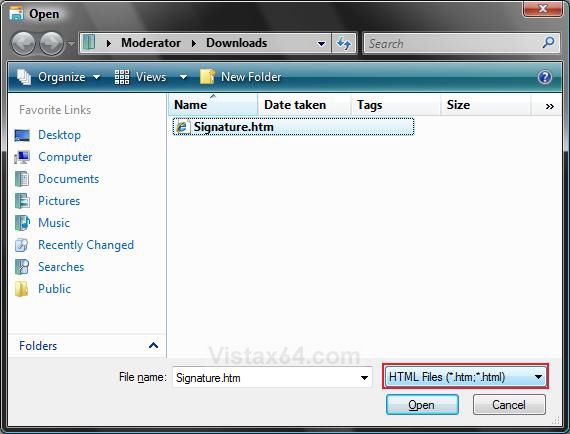

L) Navigate to the saved signature file location and click Open. (See screenshot below)​
NOTE: You will need to change the file type, at the bottom right corner, to the file type .HTM for the signature. Click on the drop down arrow and select the file type.
Browse.jpg File_Types.jpg

M) Click on Apply. (See screenshot below step 5)​
N) Give this signature a name by highlighting the signature under Signatures and click Rename. (See screenshot below step 5)​
O) Type in a name and press Enter. (See screenshot below step 5)​
P) In Windows Mail main window, click on Tools and then click Options. (See screenshot below step 2)​

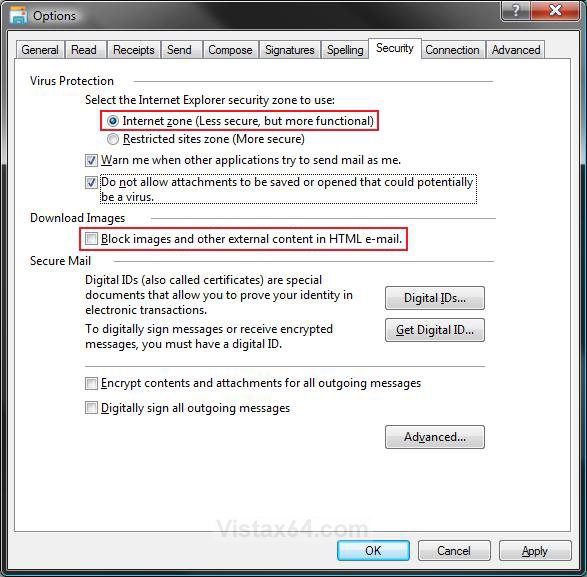

Q) Click the Security tab. (See screenshot below step 7R)​
R) Dot Internet zone and uncheck the Block images and other external content in HTML e-mail box.​
NOTE: This will allow a image you have in your signature to be seen in your Windows Mail if you have the image linked to somewhere like ImageShack.​

S) Click on OK. (See screenshot above)​

8. How to Set a Signature as Default
Note   Note
When using multiple signatures, you can choose which signature will be used by default.
A) Highlight the signature under Signatures and click on Set as Default. (See screenshot below step 5)​
B) Go to step 10.​

9. How to Choose Specific Signatures for Different E‑mail and Newsgroup Accounts
A) Highlight the signature under Signatures and click on Advanced. (See screenshot below step 5)​

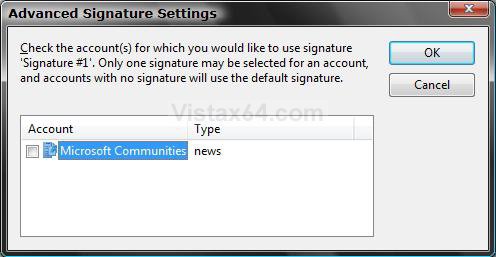

B) Check the e-mail or newsgroup account(s) you want to apply the signature to. (See screenshot below)​
C) Click on OK.​


10. Click on OK. (See screenshot below step 5)​
That's it,
Shawn



Last edited by a moderator:
Shawn Brink

Comments

In Ms-Outlook you had one signature for new messages and another signature for replys - does the same facility exist in windows mail?

Hi Khanol,

Welcome to Vista Forums. :party:

You can, but you have to select the other signature when you want to switch.

I would set one as your default signature. When you want to use the other one, just click on Insert, Signature, and select the other signature to add it while you are composing or replying to the message. If you do not want to set a signature as default, then you can simply select one of them when you want to add it instead.

Hope this helps,
Shawn

I did try this and got stuck when it told about opening up notepad.exe
I am using Vista Home Premium and windows mail
the search did not produce anything. I then found word pad and tried that but
the final file had some junk in the signature area.
should notepad be in Vista???

This is what I get when I finally get done using wordpad and saving the sig.'
Larry

{\rtf1\ansi\ansicpg1252\deff0\deflang1033{\fonttbl{\f0\fswiss\fcharset0 Arial;}} {\*\generator Msftedit 5.41.21.2507;}\viewkind4\uc1\pard\f0\fs20 \par \par \par \par \par \par \par

\par

\par

\par
Larry \par Chisholm
A " Man of True Leisure "

\par

You are right. I finally found it and put a link on the desktop. will also try your other suggestion.
Thank you for the help.
Larry.

Hi, I tried all the steps and they seem to work fine but the signature does not show my
LOGO that I attached as jpg.

Vista/Window mail seem to have a problem with pics.

Regards

thought your instructions were brilliant, however, when I tried them all I got was the x symbol in 2 boxes rather than my lovely signature. Why is that? I did everything you said, the signature I want to use is a jpeg file (but I did the thing about copying and pasting the codes) and I am using vista ultimate

Cleofatfeet in Windows Mail under tools, options, then the security tab there is a box about blocking content from the internet.
uncheck that box and I think that will eliminate the red X in your mail.
Larry

Hello,

I have a problem with my HTML signature. I tried to follow all steps but the result is I have a blank signature under Windows Mail but if I edit the file *.html under Internet Explorer I see my text/picture.

What's the matter ?

Cleofatfeet in Windows Mail under tools, options, then the security tab there is a box about blocking content from the internet.
uncheck that box and I think that will eliminate the red X in your mail.
Larry
Great Tip Larry.

It has been added to the tutorial to help others.

Shawn

Hi AcetiK,

Welcome to Vista Forums. :party:

See if the new steps 7P to 7S can help you in this tutorial.

Shawn

Thank zou for your answer I'll give it a try.

Otherwise, in case if this solution works in my side, what would be the result on recipient side? Do they need to remove this security also to get the picture ?
