Wireless Keys Stored In Windows - View How to See the Wireless Keys that Windows has Stored
Joined a network and forgotten the key? Here's how to find out what it is
Published by tom982 Category: Network & Sharing
#1
ByLine
How to See the Wireless Keys that Windows has Stored
Synopsis
Joined a network and forgotten the key? Here's how to find out what it is
How to See the Wireless Keys that Windows has Stored

Note   Note
The BBCODE in this needs a lot of fixing, but I wanted to submit it then work on it at a later date. The screenshots are also wrong for the x64 option - I'll fix those later


warning   Warning
Some AVs are detecting this as malicious - this is because it's trying to access saved passwords. You may have to allow this file in your AV in order to use this.


When you join a protected wireless network, Windows will store the key to allow a connection to be automatically made next time you log on to the computer.

This information is stored in an encrypted format in the following locations:

XP: HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\WZCSVC\Parameters\Interfaces\[Interface Guid]
Vista: C:\ProgramData\Microsoft\Wlansvc\Profiles\Interfaces\[Interface Guid]
Windows 7: C:\ProgramData\Microsoft\Wlansvc\Profiles\Interfaces\[Interface Guid]

Because it's encrypted, we'll need a program to open it up for us :) We will be using a tool from Nirsoft called WirelessKeyView.

Note   Note
There are different instructions for x86 (32 bit) and x64 (64 bit) computers




For x86 (32 bit) Computers


1. Please download WirelessKeyView from this site and save it to your desktop:
Direct Download Link: WirelessKeyView Download

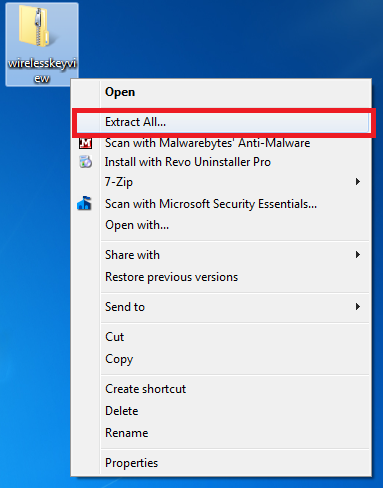

2. Minimize all windows to get to your desktop, and right click on the file, then select Extract All...

Extract Zip.png

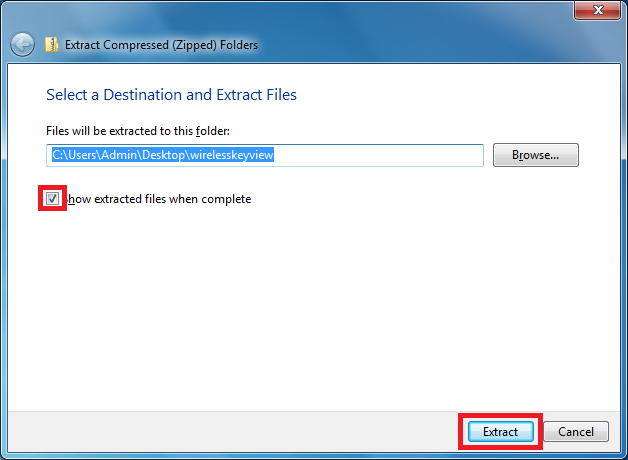

3. When the dialogue box opens, make sure that the box Show Extracted Files When Complete is selected. Then press Extract.
Extract Files.png

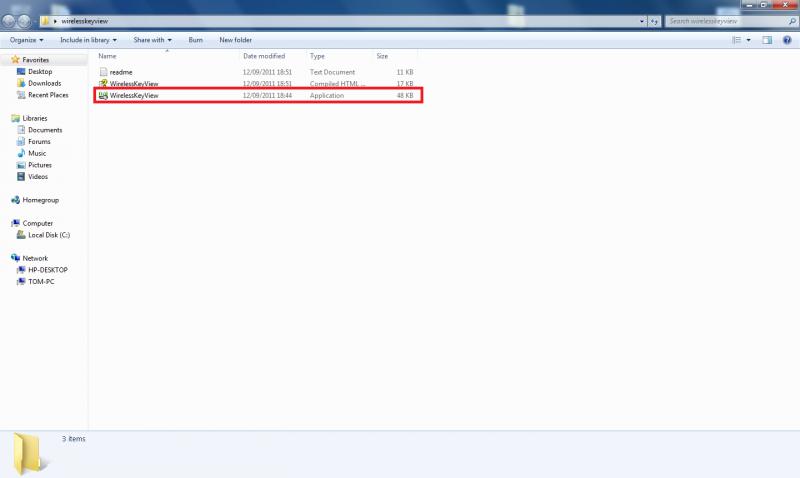

4. When the folder opens, double click on the file WirelessKeyView.exe

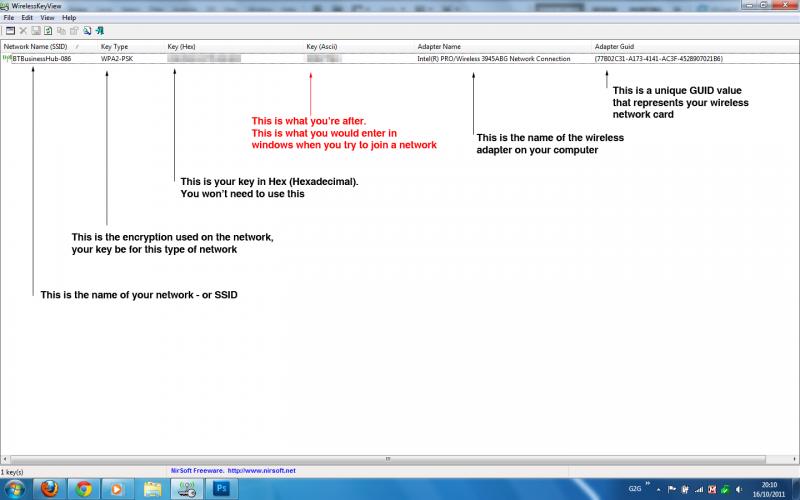

5. When WirelessKeyView opens, you should have the following screen. All the information about the wireless keys is given below :) The ASCII code is what you want.





For x64 (64 bit) Computers
1. Please download WirelessKeyView from this site and save it to your desktop:
Direct Download Link: WirelessKeyView x64 Download
2. Minimize all windows to get to your desktop, and right click on the file, then select Extract All...

Extract Zip.png

3. When the dialogue box opens, make sure that the box Show Extracted Files When Complete is selected. Then press Extract.
Extract Files.png


4. When the folder opens, double click on the file WirelessKeyView.exe




5. When WirelessKeyView opens, you should have the following screen. All the information about the wireless keys is given below :) The ASCII code is what you want.


Enjoy!

Tom

Last edited by a moderator:

My Computer

System One

  • Manufacturer/Model
    Build #1
    CPU
    Intel Core i7 3770K @4.4GHz
    Motherboard
    ASUS P8Z77-V PRO
    Memory
    Corsair Vengeance 2x4GB DDR3 1600MHz Low Profile (White)
    Graphics Card(s)
    Gigabyte Radeon HD 7850 (2GB GDDR5)
    Sound Card
    Integrated on motherboard
    Monitor(s) Displays
    23" LG LCD/LED IPS
    Screen Resolution
    1920*1080
    Hard Drives
    Samsung EVO 128GB SSD
    Seagate Barracuda 2TB 7200rpm
    2x500GB Seagate FreeAgent 5400rpm
    PSU
    Corsair TX650W V2 (80+ Bronze)
    Case
    NZXT Phantom 410
    Cooling
    Corsair H100 Water Cooler, 1x140mm and 1x120mm stock fans
    Mouse
    Microsoft Desktop 2000 Wireless Mouse
    Keyboard
    Microsoft Desktop 2000 Wireless Keyboard
    Internet Speed
    95 Mb/s Download 70 Mb/s Upload

Yard Dog

Vista Guru
Gold Member
Messages
2,169
Location
Central Florida in a small town
#2
Great info Tom, i put this on my Speed Dial to use if needed in answering any post requiring it.


My Computer

System One

  • Manufacturer/Model
    Emachine ET 1161-05
    CPU
    AMD Athlon 64 LE-1640
    Motherboard
    eMachines MCP61PM-GM (Socket AM2 )
    Memory
    2.00 GB Dual-Channel DDR2 @ 387MHz (6-6-6-18)
    Graphics Card(s)
    Acer E181H (1280x768@60Hz) 128MB GeForce 6150SE nForce 430 (
    Sound Card
    Realtek High Definition Audio
    Monitor(s) Displays
    Name Acer E181H on NVIDIA GeForce 6150SE nForce 430
    Screen Resolution
    1280x768 pixels
    Hard Drives
    ST316081 5AS SCSI Disk Device
    PSU
    MCP61PM-GM 9000 NVIDIA Chipset Model MCP61 Chipset Revisio
    Case
    Tower
    Cooling
    Fan Speed 1247 RPM
    Mouse
    PS/2 Compatible Mouse
    Keyboard
    Standard PS/2 Keyboard
    Internet Speed
    http://www.speedtest.net/result/1538974261.png

tom982

٩(͡๏̯͡๏)۶
Vista Guru
Gold Member
Messages
3,642
Location
England
#3
Great info Tom, i put this on my Speed Dial to use if needed in answering any post requiring it.
Thanks Bill :) I'm glad you liked it. I'll finish it off tomorrow


My Computer

System One

  • Manufacturer/Model
    Build #1
    CPU
    Intel Core i7 3770K @4.4GHz
    Motherboard
    ASUS P8Z77-V PRO
    Memory
    Corsair Vengeance 2x4GB DDR3 1600MHz Low Profile (White)
    Graphics Card(s)
    Gigabyte Radeon HD 7850 (2GB GDDR5)
    Sound Card
    Integrated on motherboard
    Monitor(s) Displays
    23" LG LCD/LED IPS
    Screen Resolution
    1920*1080
    Hard Drives
    Samsung EVO 128GB SSD
    Seagate Barracuda 2TB 7200rpm
    2x500GB Seagate FreeAgent 5400rpm
    PSU
    Corsair TX650W V2 (80+ Bronze)
    Case
    NZXT Phantom 410
    Cooling
    Corsair H100 Water Cooler, 1x140mm and 1x120mm stock fans
    Mouse
    Microsoft Desktop 2000 Wireless Mouse
    Keyboard
    Microsoft Desktop 2000 Wireless Keyboard
    Internet Speed
    95 Mb/s Download 70 Mb/s Upload

tom982

٩(͡๏̯͡๏)۶
Vista Guru
Gold Member
Messages
3,642
Location
England
#5
Thanks Tom, Great information, Now it resides in my favorites, and deserves a tip if the scales.
Patch41.
I'm glad you found it useful :) Thanks for the rep!


My Computer

System One

  • Manufacturer/Model
    Build #1
    CPU
    Intel Core i7 3770K @4.4GHz
    Motherboard
    ASUS P8Z77-V PRO
    Memory
    Corsair Vengeance 2x4GB DDR3 1600MHz Low Profile (White)
    Graphics Card(s)
    Gigabyte Radeon HD 7850 (2GB GDDR5)
    Sound Card
    Integrated on motherboard
    Monitor(s) Displays
    23" LG LCD/LED IPS
    Screen Resolution
    1920*1080
    Hard Drives
    Samsung EVO 128GB SSD
    Seagate Barracuda 2TB 7200rpm
    2x500GB Seagate FreeAgent 5400rpm
    PSU
    Corsair TX650W V2 (80+ Bronze)
    Case
    NZXT Phantom 410
    Cooling
    Corsair H100 Water Cooler, 1x140mm and 1x120mm stock fans
    Mouse
    Microsoft Desktop 2000 Wireless Mouse
    Keyboard
    Microsoft Desktop 2000 Wireless Keyboard
    Internet Speed
    95 Mb/s Download 70 Mb/s Upload

patch41

Vista Pro
Messages
328
#6

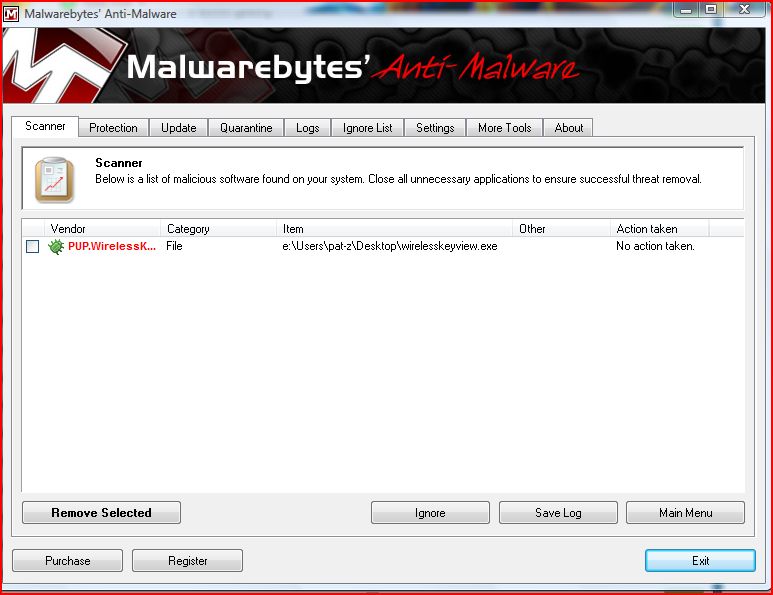

Hi Tom, just like the instructions say some security programs see it as a trojan, So if any of the guy's would like to use it, Suspend the security program for a hour get the information, then turn back on, malwarebytes picked it up as virus, and norton cleaned it out completly, Patch41,
