x86 vs x64 RAM Capacity.

As some might know i have a Viao VGN CR220e which has a max RAM cap of 4 GB. Supposedly 4GB RAM or less is meant to work with x84 systems but since i have a x64 bit Vista installed does that mean that i can install more RAM? than the listed 4GB max?


My Computer

System One

  • Operating System
    Win10
    Manufacturer/Model
    Toshiba C55-B5256
    CPU
    • Intel® Core™ i5-4210U Processor @ 1.70 GHz.
    Motherboard
    ^3M Cache, up to 2.70GHz with Intel® Turbo Boost Technology
    Memory
    8 GB DDR3

Vistaar

Vista Guru
No, it does not mean that you can install more than 4 GB of RAM in the old Vaio laptop. That is a hardware limitation. The fact that Vista Home Premium x64 could support as much as 16 GB RAM doesn’t mean that your laptop could support it.

If you just want to surf the net with Firefox 52 x86 on vanilla Vista until the Vaio kicks the bucket, then I would suggest Vista x86. On the other hand, advanced users who want to try the extended kernel need to be running Vista x64.


My Computer

System One

  • Operating System
    Vista Home Premium x86 SP2
    Manufacturer/Model
    HP Pavilion Elite m9150f
    CPU
    Intel Q6600
    Memory
    3 GB
    Graphics Card(s)
    NVIDIA GeForce 8500 GT
No, it does not mean that you can install more than 4 GB of RAM in the old Vaio laptop. That is a hardware limitation. The fact that Vista Home Premium x64 could support as much as 16 GB RAM doesn’t mean that your laptop could support it.

If you just want to surf the net with Firefox 52 x86 on vanilla Vista until the Vaio kicks the bucket, then I would suggest Vista x86. On the other hand, advanced users who want to try the extended kernel need to be running Vista x64.
I see thanks. It needs to be supported by both. So why would it be better to run x86 instead of x64 on my 4GB laptop?


My Computer

System One

  • Operating System
    Win10
    Manufacturer/Model
    Toshiba C55-B5256
    CPU
    • Intel® Core™ i5-4210U Processor @ 1.70 GHz.
    Motherboard
    ^3M Cache, up to 2.70GHz with Intel® Turbo Boost Technology
    Memory
    8 GB DDR3

Vistaar

Vista Guru
Why would it be better to run Vista x64 with only 4 GB RAM and x86 browsers? But you can certainly do whatever you wish.


My Computer

System One

  • Operating System
    Vista Home Premium x86 SP2
    Manufacturer/Model
    HP Pavilion Elite m9150f
    CPU
    Intel Q6600
    Memory
    3 GB
    Graphics Card(s)
    NVIDIA GeForce 8500 GT
Well, i certainly don't know. I was asking so i can be clear.


My Computer

System One

  • Operating System
    Win10
    Manufacturer/Model
    Toshiba C55-B5256
    CPU
    • Intel® Core™ i5-4210U Processor @ 1.70 GHz.
    Motherboard
    ^3M Cache, up to 2.70GHz with Intel® Turbo Boost Technology
    Memory
    8 GB DDR3

bree

Member
would it be better to run x86 instead of x64 on my 4GB laptop?
An x86 OS has a maximum address space of 4GB. This address space will be used not only to access your RAM, but also to access the Video RAM of your graphics hardware. Often this means that 1GB or more of the address space will reserved for addressing the video RAM, leaving 3GB or less of your installed RAM available to be used by the OS or programs.

An x64 OS can map the video RAM to an address space above that of your installed 4GB RAM, allowing virtually all the installed RAM to be used by the OS or programs.

For a machine with 4GB installed RAM the choice is finely balanced. On the one hand x64 will give a little more useable RAM for your programs, on the other hand x86 is less demanding, will need less RAM for its kernel, and may feel more responsive.

Last edited:

My Computers

System One System Two

  • Operating System
    various, from XP to W10
  • Operating System
    W10 Host machine running Hyper-V
An x86 OS has a maximum address space of 4GB. This address space will be used not only to access your RAM, but also to access the Video RAM of your graphics hardware. Often this means that 1GB or more of the address space will reserved for addressing the video RAM, leaving 3GB or less of your installed RAM available to be used by the OS or programs.

An x64 OS can map the video RAM to an address space above that of your installed 4GB RAM, allowing virtually all the installed RAM to be used by the OS or programs.

For a machine with 4GB installed RAM the choice is finely balanced. On the one hand x64 will give a little more useable RAM for your programs, on the other hand x86 is less demanding, will need less RAM for its kernel, and may feel more responsive.
thank you very much for that, it makes sense now.


My Computer

System One

  • Operating System
    Win10
    Manufacturer/Model
    Toshiba C55-B5256
    CPU
    • Intel® Core™ i5-4210U Processor @ 1.70 GHz.
    Motherboard
    ^3M Cache, up to 2.70GHz with Intel® Turbo Boost Technology
    Memory
    8 GB DDR3

townsbg

~~тσωηsвg~~
Vista Guru
Gold Member
This address space will be used not only to access your RAM, but also to access the Video RAM of your graphics hardware. Often this means that 1GB or more of the address space will reserved for addressing the video RAM, leaving 3GB or less of your installed RAM available to be used by the OS or programs.

Not necessarily. This depends upon if the graphics has dedicated ram.


My Computers

System One System Two

  • Operating System
    Windows 8.1 Industry Pro x64
    Manufacturer/Model
    HP Pavillion Elite HPE-250f
    CPU
    Intel i7 860 Quad core 2.8 ghz
    Memory
    8 gb
    Graphics Card(s)
    ATI Radeon HD 5770 1 gb ram
    Monitor(s) Displays
    Alienware 25 AW2521HF
    Screen Resolution
    1920x1080 &1680x1050
    Hard Drives
    1 TB x2
    Other Info
    https://www.cnet.com/products/hp-pavilion-elite-hpe-250f/
  • Operating System
    Windows 2012 R2 Data center/Linux Mint
    Manufacturer/Model
    Dell Poweredge T140
    CPU
    i3 9100 3.6GHz, 8M cache, 4C/4T
    Memory
    8GB 2666MT/s DDR4 ECC UDIMM
    Screen Resolution
    1680x1050
    Hard Drives
    1 TB & 360 GB x2
    Other Info
    https://www.dell.com/en-us/work/shop/productdetailstxn/poweredge-t140?~ck=bt

bree

Member
Not necessarily. This depends upon if the graphics has dedicated ram.
I'm not talking about shared RAM, if the graphics has its own dedicated RAM then this has to be addressable in the 4GB address space available to x86. This has to steal some of the address space from the installed RAM, which then becomes 'Hardware Reserved' and no longer available for use.

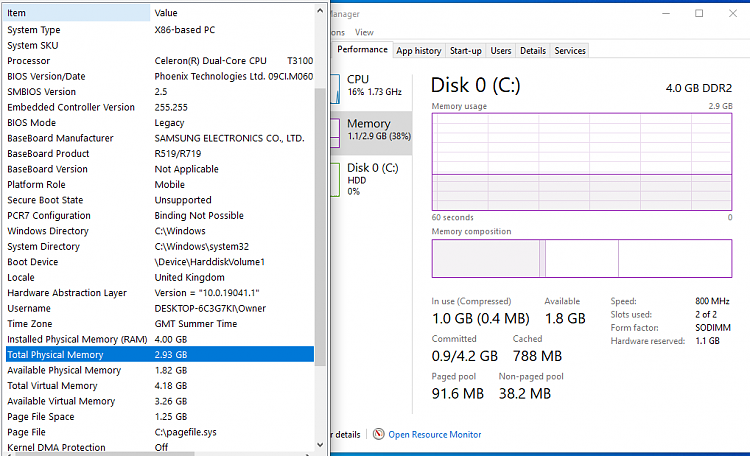

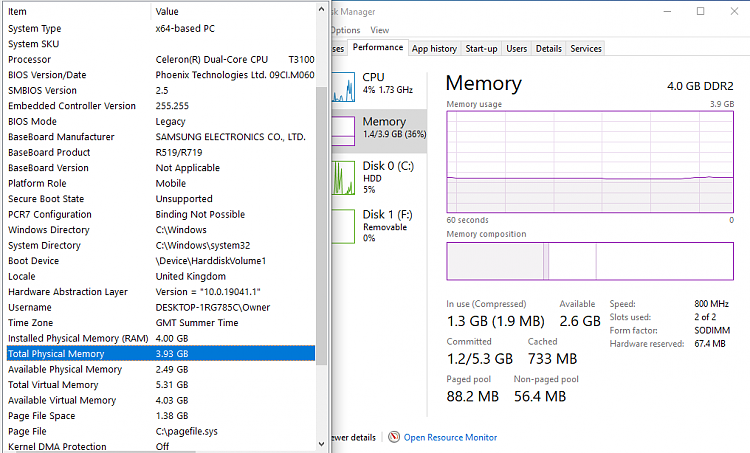

Here it is in action with Windows 10. Two different installs on a machine that has dedicated video RAM, one x86 the other x64. For x86 1.1GB of the installed RAM is unavailable.

x86


X64


Bree said:
The result is that 32 bit W10 can only see and use 2.93GB of the installed 4GB, with 1.82GB physical RAM free for user applications. 64 bit W10 can use virtually all the installed RAM at 3.93GB. There is 2.49GB of physical RAM free.
Windows Reset Not Visible - Windows 10 Help Forums - post #35

Last edited:

My Computers

System One System Two

  • Operating System
    various, from XP to W10
  • Operating System
    W10 Host machine running Hyper-V
